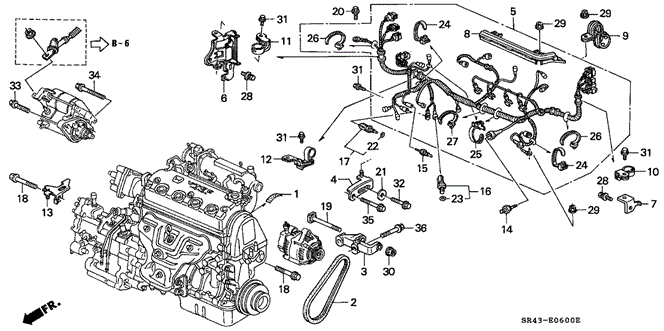

WIRE HARNESS, ENGINE in ENGINE/ENGINE SUB CORD - CLAMP for 1992 Honda CIVIC SEDAN

WIRE HARNESS, ENGINE in ENGINE/ENGINE SUB CORD - CLAMP for 1992 Honda CIVIC SEDAN #1
10
  • CLAMP D, ENGINE HARNESS (GREEN) - $7.25
17
  • SENSOR ASSY., WATER TEMPERATURE (TW5) (MATSUSHITA) - $30.24
36
  • BOLT, FLANGE (10X50) - $1.08
9
  • CLAMP A, ENGINE HARNESS (GREEN) - $10.09
18
  • BOLT, FLANGE (12X65) - $4.04
1
  • LABEL, PLUG CAUTION - $2.06
14
  • SWITCH, OIL PRESSURE (TEC) - $16.75
  • SWITCH, OIL PRESSURE (DENSO) - $16.75
25
  • CLIP B, HARNESS BAND (129.4MM)(DARK BROWN) - $2.81
13
  • STAY B, ENGINE WIRE HARNESS - $2.44
34
  • BOLT, FLANGE (10X45) - $1.08
22
  • O-RING (9.5X1.5) (HONDA KIKAKI) - $1.06
12
  • CLAMP F, ENGINE HARNESS (GRAY) - $10.09
31
  • BOLT, FLANGE (6X12) - $0.72
4
  • STAY, ALTERNATOR - $11.47
32
  • BOLT, FLANGE (8X30) - $0.61
8
  • HOLDER, HARNESS - $13.68
31
  • BOLT, FLANGE (6X12) - $0.72
6
  • STAY, R. CONNECTOR
3
  • BRACKET, ALTERNATOR - $33.12
31
  • BOLT, FLANGE (6X12) - $0.72
7
  • STAY, ENGINE WIRE HARNESS CLAMP
5
  • WIRE HARNESS, ENGINE
2
  • BELT, ALTERNATOR (MITSUBOSHI) - $12.44
  • BELT, ALTERNATOR (MITSUBOSHI) - $12.44
15
  • THERMO UNIT (DENSO) - $27.46
28
  • BOLT-WASHER (6X12) - $0.67
23
  • O-RING (17.8X1.4) - $1.15
29
  • NUT, FLANGE (6MM) - $0.17
31
  • BOLT, FLANGE (6X12) - $0.72
24
  • CLIP A, HARNESS BAND (129.4MM)(DARK GRAY) - $2.95
28
  • BOLT-WASHER (6X12) - $0.67
35
  • BOLT, FLANGE (10X50) - $1.08
18
  • BOLT, FLANGE (12X65) - $4.04
11
  • CLAMP D, ENGINE HARNESS (BLACK) - $7.25
29
  • NUT, FLANGE (6MM) - $0.17
30
  • NUT, FLANGE (10MM) - $0.76
24
  • CLIP A, HARNESS BAND (129.4MM)(DARK GRAY) - $2.95
16
  • SWITCH ASSY., THERMO (A-93) (NIPPON THERMOSTAT) - $40.22
19
  • BOLT, ALTERNATOR - $4.52
20
  • BOLT (5X13) - $1.82
29
  • NUT, FLANGE (6MM) - $0.17
33
  • BOLT, FLANGE (10X35) - $0.94
21
  • WASHER (23X8.3X3.2) - $2.78
27
  • BAND, WIRE HARNESS (123.5MM) (BLUE) - $2.71
No. Part # Part # / Description Qty Req. List Price Price
1 17274-P28-A01 17274-P28-A01 / LABEL, PLUG CAUTION

1 $2.87 $2.06
2 31110-P2J-004 31110-P2J-004 / BELT, ALTERNATOR (MITSUBOSHI)

1 $17.28 $12.44
2 31110-P2J-004 31110-P2J-004 / BELT, ALTERNATOR (MITSUBOSHI)

1 $17.28 $12.44
3 31112-P01-000 31112-P01-000 / BRACKET, ALTERNATOR

1 $46.00 $33.12
4 31113-P08-000 31113-P08-000 / STAY, ALTERNATOR

1 $15.93 $11.47
5 32110-P28-A01 32110-P28-A01 / WIRE HARNESS, ENGINE

1 - -
6 32113-P01-000 32113-P01-000 / STAY, R. CONNECTOR

1 - -
7 32115-P01-000 32115-P01-000 / STAY, ENGINE WIRE HARNESS CLAMP

1 - -
8 32127-P05-A00 32127-P05-A00 / HOLDER, HARNESS

1 $19.00 $13.68
9 32741-P01-000 32741-P01-000 / CLAMP A, ENGINE HARNESS (GREEN)

1 $14.02 $10.09
10 32744-P01-000 32744-P01-000 / CLAMP D, ENGINE HARNESS (GREEN)

1 $10.07 $7.25
11 32744-P05-A01 32744-P05-A01 / CLAMP D, ENGINE HARNESS (BLACK)

1 $10.07 $7.25
12 32746-P05-A00 32746-P05-A00 / CLAMP F, ENGINE HARNESS (GRAY)

1 $14.02 $10.09
13 32752-P01-000 32752-P01-000 / STAY B, ENGINE WIRE HARNESS

1 $3.38 $2.44
14 37240-PT0-014 37240-PT0-014 / SWITCH, OIL PRESSURE (TEC)

1 $23.27 $16.75
14 37240-PT0-014 37240-PT0-014 / SWITCH, OIL PRESSURE (DENSO)

1 $23.27 $16.75
15 37750-PH2-014 37750-PH2-014 / THERMO UNIT (DENSO)

1 $38.13 $27.46
16 37760-P00-003 37760-P00-003 / SWITCH ASSY., THERMO (A-93) (NIPPON THERMOSTAT)

1 $55.87 $40.22
17 37870-PJ7-003 37870-PJ7-003 / SENSOR ASSY., WATER TEMPERATURE (TW5) (MATSUSHITA)

1 $42.00 $30.24
18 90050-PG7-000 90050-PG7-000 / BOLT, FLANGE (12X65)

5 $5.62 $4.04
19 90057-PG7-003 90057-PG7-003 / BOLT, ALTERNATOR

1 $6.28 $4.52
20 90130-SR3-003 90130-SR3-003 / BOLT (5X13)

1 $2.53 $1.82
21 90430-657-000 90430-657-000 / WASHER (23X8.3X3.2)

1 $3.87 $2.78
22 91307-PK2-005 91307-PK2-005 / O-RING (9.5X1.5) (HONDA KIKAKI)

1 $1.47 $1.06
23 91307-PN3-000 91307-PN3-000 / O-RING (17.8X1.4)

1 $1.60 $1.15
24 91506-P01-003 91506-P01-003 / CLIP A, HARNESS BAND (129.4MM)(DARK GRAY)

2 $4.10 $2.95
25 91507-P01-003 91507-P01-003 / CLIP B, HARNESS BAND (129.4MM)(DARK BROWN)

2 $3.90 $2.81
27 91547-SF4-003 91547-SF4-003 / BAND, WIRE HARNESS (123.5MM) (BLUE)

1 $3.77 $2.71
28 93403-06012-08 93403-06012-08 / BOLT-WASHER (6X12)

2 $0.93 $0.67
29 94050-06080 94050-06080 / NUT, FLANGE (6MM)

4 $0.23 $0.17
30 94050-10080 94050-10080 / NUT, FLANGE (10MM)

1 $1.05 $0.76
31 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

4 $1.00 $0.72
32 95701-08030-08 95701-08030-08 / BOLT, FLANGE (8X30)

1 $0.85 $0.61
33 95701-10035-08 95701-10035-08 / BOLT, FLANGE (10X35)

1 $1.30 $0.94
34 95701-10045-08 95701-10045-08 / BOLT, FLANGE (10X45)

1 $1.50 $1.08
35 95701-10050-08 95701-10050-08 / BOLT, FLANGE (10X50)

1 $1.50 $1.08
36 95801-10050-08 95801-10050-08 / BOLT, FLANGE (10X50)

2 $1.50 $1.08
