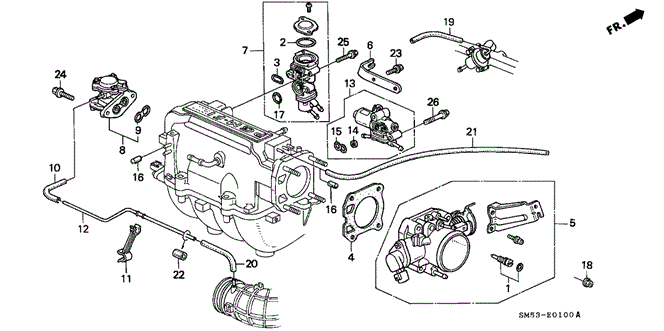

BODY ASSY., THROTTLE (GF73A) in ENGINE/THROTTLE BODY for 1992 Honda ACCORD 5-DOOR

BODY ASSY., THROTTLE (GF73A) in ENGINE/THROTTLE BODY for 1992 Honda ACCORD 5-DOOR #1
3
  • O-RING - $2.32
24
  • BOLT, FLANGE (6X20) - $0.16
16
  • CAP, SEALING - $2.12
1
  • SCREW SET - $9.72
10
  • TUBE, AIR BOOST VALVE
23
  • BOLT, FLANGE (6X14) - $0.64
13
  • VALVE ASSY., ELECTRONIC AIR CONTROL (DENSO) - $271.72
19
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
25
  • BOLT, FLANGE (6X25) - $0.71
6
  • STAY, THROTTLE WIRE - $5.11
8
  • VALVE ASSY., AIR BOOST - $127.20
7
  • VALVE ASSY., FAST IDLE (AF15A) - $72.29
2
  • O-RING (31.2X1.9) - $2.18
4
  • GASKET, THROTTLE BODY (NIPPON LEAKLESS) - $3.86
22
  • BULK HOSE, VACUUM (4.5X1000) - $8.27
16
  • CAP, SEALING - $2.12
14
  • FILTER, ELECTRONIC AIR CONTROLVALVE (TOYO ROKI) - $3.24
18
  • NUT, FLANGE (8MM) - $0.18
11
  • CLAMP, AIR BOOST VALVE PIPE - $0.42
9
  • GASKET, AIR BOOST VALVE - $1.27
15
  • GASKET, ELECTRONIC AIR CONTROLVALVE (DENSO) - $2.02
5
  • BODY ASSY., THROTTLE (GF73A)
12
  • PIPE, AIR BOOST VALVE
17
  • O-RING (15.8X1.9) - $1.50
20
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
26
  • BOLT, FLANGE (8X45) - $0.92
No. Part # Part # / Description Qty Req. List Price Price
1 16016-PM6-005 16016-PM6-005 / SCREW SET

1 $13.50 $9.72
2 16075-PE2-005 16075-PE2-005 / O-RING (31.2X1.9)

1 $3.03 $2.18
3 16077-PR3-005 16077-PR3-005 / O-RING

1 $3.22 $2.32
4 16176-PT2-004 16176-PT2-004 / GASKET, THROTTLE BODY (NIPPON LEAKLESS)

1 $5.37 $3.86
5 16400-PT3-A50 16400-PT3-A50 / BODY ASSY., THROTTLE (GF73A)

1 - -
6 16411-PT2-000 16411-PT2-000 / STAY, THROTTLE WIRE

1 $7.10 $5.11
7 16500-PT2-900 16500-PT2-900 / VALVE ASSY., FAST IDLE (AF15A)

1 $100.40 $72.29
8 17340-PT2-000 17340-PT2-000 / VALVE ASSY., AIR BOOST

1 $176.67 $127.20
9 17341-PT2-000 17341-PT2-000 / GASKET, AIR BOOST VALVE

1 $1.77 $1.27
10 17346-PT2-000 17346-PT2-000 / TUBE, AIR BOOST VALVE

1 - -
11 17347-PT2-000 17347-PT2-000 / CLAMP, AIR BOOST VALVE PIPE

1 $0.58 $0.42
12 17349-PT2-000 17349-PT2-000 / PIPE, AIR BOOST VALVE

1 - -
13 36450-PT3-A01 36450-PT3-A01 / VALVE ASSY., ELECTRONIC AIR CONTROL (DENSO)

1 $377.38 $271.72
14 36454-PS4-003 36454-PS4-003 / FILTER, ELECTRONIC AIR CONTROLVALVE (TOYO ROKI)

1 $4.50 $3.24
15 36455-PT3-A01 36455-PT3-A01 / GASKET, ELECTRONIC AIR CONTROLVALVE (DENSO)

1 $2.80 $2.02
16 90634-PA0-000 90634-PA0-000 / CAP, SEALING

1 $2.95 $2.12
17 91304-PE2-005 91304-PE2-005 / O-RING (15.8X1.9)

1 $2.08 $1.50
18 94050-08080 94050-08080 / NUT, FLANGE (8MM)

4 $0.25 $0.18
20 95005-35008-10M 95005-35008-10M / BULK HOSE, VACUUM (3.5X8000)

1 $52.80 $38.02
22 95005-45001-10M 95005-45001-10M / BULK HOSE, VACUUM (4.5X1000)

1 $11.48 $8.27
23 95701-06014-08 95701-06014-08 / BOLT, FLANGE (6X14)

2 $0.88 $0.64
24 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

2 $0.22 $0.16
25 95701-06025-08 95701-06025-08 / BOLT, FLANGE (6X25)

3 $0.98 $0.71
26 95701-08045-08 95701-08045-08 / BOLT, FLANGE (8X45)

2 $1.28 $0.92
