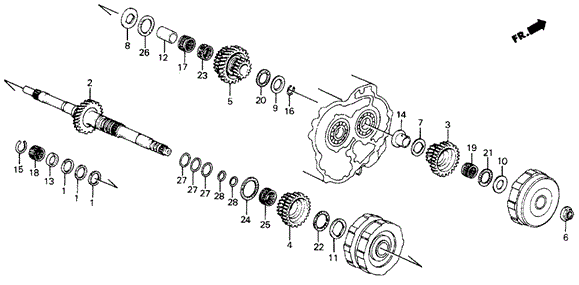

MAINSHAFT in TRANSMISSION - AUTOMATIC/AT MAINSHAFT for 1991 Honda CIVIC SEDAN

MAINSHAFT in TRANSMISSION - AUTOMATIC/AT MAINSHAFT for 1991 Honda CIVIC SEDAN #1
28
  • O-RING (17.8X1.9) (NOK) - $1.50
10
  • WASHER, THRUST (23X48.5X2.5) - $6.59
27
  • O-RING (31.2X1.9) (ARAI) - $1.93
9
  • WASHER (26X45X3) - $7.58
24
  • BEARING, THRUST NEEDLE (42X58X2) (TOYO) - $13.33
15
  • CIRCLIP (OUTER) (20MM) - $2.82
21
  • BEARING, THRUST NEEDLE (35X49X2) - $11.69
13
  • COLLAR, DISTANCE (20MM) - $5.35
2
  • MAINSHAFT - $225.43
4
  • GEAR, MAINSHAFT SECOND
22
  • BEARING, THRUST NEEDLE (36X52X2) (NTN) - $13.33
17
  • BEARING, NEEDLE (32X38X20) (NTN) - $15.50
26
  • BEARING, THRUST NEEDLE (39X54X2) (NTN) - $13.81
23
  • BEARING, NEEDLE (32X38X14) (NTN) - $15.19
27
  • O-RING (31.2X1.9) (ARAI) - $1.93
14
  • COLLAR (23MM) - $19.19
1
  • RING, SEALING (32MM) - $8.33
11
  • WASHER, THRUST (36.5X51X3.80) - $4.30
  • WASHER, THRUST (36.5X51X3.55) - $6.61
  • WASHER, THRUST - $6.61
  • WASHER 36.5X51X3.70 - $4.43
  • WASHER, THRUST (36.5X51X3.75) - $4.30
  • WASHER, THRUST (36.5X51X3.50) - $6.61
  • WASHER, THRUST - $6.61
  • WASHER, THRUST (36.5X51X3.85) - $4.30
  • WASHER, THRUST (36.5X51X3.90) - $4.30
  • WASHER, THRUST - $6.61
  • WASHER, THRUST - $4.30
3
  • GEAR, MAINSHAFT LOW - $86.78
18
  • BEARING, NEEDLE (20X26X20) - $15.59
  • BEARING, NEEDLE (20X26X20) - $15.59
1
  • RING, SEALING (32MM) - $8.33
19
  • BEARING, NEEDLE (28X33X16.8) (NTN) - $35.52
1
  • RING, SEALING (32MM) - $8.33
7
  • WASHER, THRUST (28X40X1.5) - $4.43
25
  • BEARING, NEEDLE (36X41X14.8) - $15.19
27
  • O-RING (31.2X1.9) (ARAI) - $1.93
12
  • COLLAR, MAINSHAFT FOURTH GEAR - $15.43
28
  • O-RING (17.8X1.9) (NOK) - $1.50
5
  • GEAR, MAINSHAFT FOURTH
8
  • WASHER, THRUST (26X53X4.5) - $7.58
20
  • BEARING, THRUST NEEDLE (32X44X2) (NTN) - $9.60
6
  • NUT, FLANGE (19MM) - $5.99
16
  • RING, SNAP (26MM) - $2.33
No. Part # Part # / Description Qty Req. List Price Price
1 22814-PA9-023 22814-PA9-023 / RING, SEALING (32MM)

3 $11.57 $8.33
2 23210-PL4-850 23210-PL4-850 / MAINSHAFT

1 $313.10 $225.43
3 23411-PL4-000 23411-PL4-000 / GEAR, MAINSHAFT LOW

1 $120.53 $86.78
4 23431-PH0-670 23431-PH0-670 / GEAR, MAINSHAFT SECOND

1 - -
5 23461-PP1-900 23461-PP1-900 / GEAR, MAINSHAFT FOURTH

1 - -
6 90201-PL4-000 90201-PL4-000 / NUT, FLANGE (19MM)

1 $8.32 $5.99
7 90406-PH0-000 90406-PH0-000 / WASHER, THRUST (28X40X1.5)

1 $6.15 $4.43
8 90407-PL4-000 90407-PL4-000 / WASHER, THRUST (26X53X4.5)

1 $10.53 $7.58
9 90417-PC9-000 90417-PC9-000 / WASHER (26X45X3)

1 $10.53 $7.58
10 90422-PL4-010 90422-PL4-010 / WASHER, THRUST (23X48.5X2.5)

1 $9.15 $6.59
11 90447-PC9-010 90447-PC9-010 / WASHER, THRUST (36.5X51X3.80)

1 $5.97 $4.30
11 90442-PC9-010 90442-PC9-010 / WASHER, THRUST (36.5X51X3.55)

1 $9.18 $6.61
11 90444-PC9-020 90444-PC9-020 / WASHER, THRUST

1 $9.18 $6.61
11 90445-PC9-020 90445-PC9-020 / WASHER 36.5X51X3.70

1 $6.15 $4.43
11 90446-PC9-010 90446-PC9-010 / WASHER, THRUST (36.5X51X3.75)

1 $5.97 $4.30
11 90441-PC9-020 90441-PC9-020 / WASHER, THRUST (36.5X51X3.50)

1 $9.18 $6.61
11 90443-PC9-020 90443-PC9-020 / WASHER, THRUST

1 $9.18 $6.61
11 90448-PC9-020 90448-PC9-020 / WASHER, THRUST (36.5X51X3.85)

1 $5.97 $4.30
11 90449-PC9-010 90449-PC9-010 / WASHER, THRUST (36.5X51X3.90)

1 $5.97 $4.30
11 90441-PC9-020 90441-PC9-020 / WASHER, THRUST

1 $9.18 $6.61
11 90448-PC9-020 90448-PC9-020 / WASHER, THRUST

1 $5.97 $4.30
12 90502-PH0-000 90502-PH0-000 / COLLAR, MAINSHAFT FOURTH GEAR

1 $21.43 $15.43
13 90506-PL4-000 90506-PL4-000 / COLLAR, DISTANCE (20MM)

1 $7.43 $5.35
14 90508-PH0-000 90508-PH0-000 / COLLAR (23MM)

1 $26.65 $19.19
15 90603-689-900 90603-689-900 / CIRCLIP (OUTER) (20MM)

1 $3.92 $2.82
16 90613-PA9-000 90613-PA9-000 / RING, SNAP (26MM)

1 $3.23 $2.33
17 91011-PG4-003 91011-PG4-003 / BEARING, NEEDLE (32X38X20) (NTN)

1 $21.53 $15.50
18 91011-P48-008 91011-P48-008 / BEARING, NEEDLE (20X26X20)

1 $21.65 $15.59
18 91011-428-008 91011-428-008 / BEARING, NEEDLE (20X26X20)

1 $21.65 $15.59
19 91012-PZ4-003 91012-PZ4-003 / BEARING, NEEDLE (28X33X16.8) (NTN)

1 $49.33 $35.52
20 91018-P56-003 91018-P56-003 / BEARING, THRUST NEEDLE (32X44X2) (NTN)

1 $13.33 $9.60
21 91019-PL4-003 91019-PL4-003 / BEARING, THRUST NEEDLE (35X49X2)

1 $16.23 $11.69
22 91023-PS5-003 91023-PS5-003 / BEARING, THRUST NEEDLE (36X52X2) (NTN)

1 $18.52 $13.33
23 91024-PF4-003 91024-PF4-003 / BEARING, NEEDLE (32X38X14) (NTN)

1 $21.10 $15.19
24 91026-PS5-003 91026-PS5-003 / BEARING, THRUST NEEDLE (42X58X2) (TOYO)

1 $18.52 $13.33
25 91028-PL4-003 91028-PL4-003 / BEARING, NEEDLE (36X41X14.8)

1 $21.10 $15.19
26 91031-PC9-003 91031-PC9-003 / BEARING, THRUST NEEDLE (39X54X2) (NTN)

1 $19.18 $13.81
27 91307-PA9-003 91307-PA9-003 / O-RING (31.2X1.9) (ARAI)

3 $2.68 $1.93
28 91308-PH0-013 91308-PH0-013 / O-RING (17.8X1.9) (NOK)

2 $2.08 $1.50
