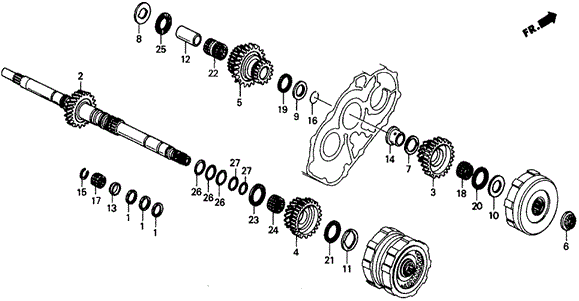

MAINSHAFT in TRANSMISSION - AUTOMATIC/AT MAINSHAFT GEARS 4WD for 1991 Honda CIVIC 5-DOOR

MAINSHAFT in TRANSMISSION - AUTOMATIC/AT MAINSHAFT GEARS 4WD for 1991 Honda CIVIC 5-DOOR #1
23
  • BEARING, THRUST NEEDLE (42X58X2) (TOYO) - $13.33
21
  • BEARING, THRUST NEEDLE (36X52X2) (NTN) - $13.33
25
  • NEEDLE, THRUST (32X54X3) - $13.04
6
  • NUT, FLANGE (19MM) - $5.99
13
  • COLLAR, DISTANCE (20MM) - $5.35
16
  • RING, SNAP (26MM) - $2.33
4
  • GEAR, MAINSHAFT SECOND - $88.96
5
  • GEAR, MAINSHAFT FOURTH
12
  • COLLAR, MAINSHAFT FOURTH GEAR - $15.64
18
  • BEARING, NEEDLE (31X36X18.5) - $17.64
26
  • O-RING (31.2X1.9) (ARAI) - $1.93
8
  • WASHER, THRUST (26X53X4.5) - $7.58
27
  • O-RING (19.8X1.9) (ARAI) - $2.03
26
  • O-RING (31.2X1.9) (ARAI) - $1.93
11
  • WASHER, THRUST (36.5X51X3.80) - $4.30
  • WASHER, THRUST (36.5X51X3.85) - $4.30
  • WASHER, THRUST - $6.61
  • WASHER, THRUST (36.5X51X3.55) - $6.61
  • WASHER, THRUST - $4.30
  • WASHER, THRUST - $6.61
  • WASHER 36.5X51X3.70 - $4.43
  • WASHER, THRUST (36.5X51X3.75) - $4.30
  • WASHER, THRUST - $6.61
  • WASHER, THRUST (36.5X51X3.50) - $6.61
  • WASHER, THRUST (36.5X51X3.90) - $4.30
1
  • RING, SEALING (32MM) - $8.33
9
  • WASHER (26X45X3) - $7.58
15
  • CIRCLIP (OUTER) (20MM) - $2.82
7
  • WASHER, THRUST (31X42X1.5) - $5.33
10
  • WASHER, THRUST (26MM) - $7.31
26
  • O-RING (31.2X1.9) (ARAI) - $1.93
2
  • MAINSHAFT
1
  • RING, SEALING (32MM) - $8.33
24
  • BEARING, NEEDLE (36X41X14.8) - $15.19
3
  • GEAR, LOW - $86.78
22
  • BEARING, NEEDLE (32X38X36) - $27.70
19
  • NEEDLE, THRUST (32X46X3) - $12.43
14
  • COLLAR (26MM) - $11.60
20
  • BEARING, THRUST NEEDLE (31X47X2) - $13.16
1
  • RING, SEALING (32MM) - $8.33
17
  • BEARING, NEEDLE (20X26X20) - $15.59
  • BEARING, NEEDLE (20X26X20) - $15.59
27
  • O-RING (19.8X1.9) (ARAI) - $2.03
No. Part # Part # / Description Qty Req. List Price Price
1 22814-PA9-023 22814-PA9-023 / RING, SEALING (32MM)

3 $11.57 $8.33
2 23210-PS5-000 23210-PS5-000 / MAINSHAFT

1 - -
3 23411-PS5-000 23411-PS5-000 / GEAR, LOW

1 $120.53 $86.78
4 23431-PS5-010 23431-PS5-010 / GEAR, MAINSHAFT SECOND

1 $123.55 $88.96
5 23461-PS5-000 23461-PS5-000 / GEAR, MAINSHAFT FOURTH

1 - -
6 90201-PL4-000 90201-PL4-000 / NUT, FLANGE (19MM)

1 $8.32 $5.99
7 90406-PF4-000 90406-PF4-000 / WASHER, THRUST (31X42X1.5)

1 $7.40 $5.33
8 90407-PL4-000 90407-PL4-000 / WASHER, THRUST (26X53X4.5)

1 $10.53 $7.58
9 90417-PC9-000 90417-PC9-000 / WASHER (26X45X3)

1 $10.53 $7.58
10 90422-PA9-000 90422-PA9-000 / WASHER, THRUST (26MM)

1 $10.15 $7.31
11 90447-PC9-010 90447-PC9-010 / WASHER, THRUST (36.5X51X3.80)

1 $5.97 $4.30
11 90448-PC9-020 90448-PC9-020 / WASHER, THRUST (36.5X51X3.85)

1 $5.97 $4.30
11 90444-PC9-020 90444-PC9-020 / WASHER, THRUST

1 $9.18 $6.61
11 90442-PC9-010 90442-PC9-010 / WASHER, THRUST (36.5X51X3.55)

1 $9.18 $6.61
11 90448-PC9-020 90448-PC9-020 / WASHER, THRUST

1 $5.97 $4.30
11 90443-PC9-020 90443-PC9-020 / WASHER, THRUST

1 $9.18 $6.61
11 90445-PC9-020 90445-PC9-020 / WASHER 36.5X51X3.70

1 $6.15 $4.43
11 90446-PC9-010 90446-PC9-010 / WASHER, THRUST (36.5X51X3.75)

1 $5.97 $4.30
11 90441-PC9-020 90441-PC9-020 / WASHER, THRUST

1 $9.18 $6.61
11 90441-PC9-020 90441-PC9-020 / WASHER, THRUST (36.5X51X3.50)

1 $9.18 $6.61
11 90449-PC9-010 90449-PC9-010 / WASHER, THRUST (36.5X51X3.90)

1 $5.97 $4.30
12 90502-PS5-000 90502-PS5-000 / COLLAR, MAINSHAFT FOURTH GEAR

1 $21.72 $15.64
13 90506-PL4-000 90506-PL4-000 / COLLAR, DISTANCE (20MM)

1 $7.43 $5.35
14 90508-PF4-000 90508-PF4-000 / COLLAR (26MM)

1 $16.33 $11.60
15 90603-689-900 90603-689-900 / CIRCLIP (OUTER) (20MM)

1 $3.92 $2.82
16 90613-PA9-000 90613-PA9-000 / RING, SNAP (26MM)

1 $3.23 $2.33
17 91011-P48-008 91011-P48-008 / BEARING, NEEDLE (20X26X20)

1 $21.65 $15.59
17 91011-428-008 91011-428-008 / BEARING, NEEDLE (20X26X20)

1 $21.65 $15.59
18 91012-PN6-701 91012-PN6-701 / BEARING, NEEDLE (31X36X18.5)

1 $24.50 $17.64
19 91018-PS5-003 91018-PS5-003 / NEEDLE, THRUST (32X46X3)

1 $17.27 $12.43
20 91019-PA9-013 91019-PA9-013 / BEARING, THRUST NEEDLE (31X47X2)

1 $18.28 $13.16
21 91023-PS5-003 91023-PS5-003 / BEARING, THRUST NEEDLE (36X52X2) (NTN)

1 $18.52 $13.33
22 91024-PS5-003 91024-PS5-003 / BEARING, NEEDLE (32X38X36)

1 $38.47 $27.70
23 91026-PS5-003 91026-PS5-003 / BEARING, THRUST NEEDLE (42X58X2) (TOYO)

1 $18.52 $13.33
24 91028-PL4-003 91028-PL4-003 / BEARING, NEEDLE (36X41X14.8)

1 $21.10 $15.19
25 91031-PS5-003 91031-PS5-003 / NEEDLE, THRUST (32X54X3)

1 $18.12 $13.04
26 91307-PA9-003 91307-PA9-003 / O-RING (31.2X1.9) (ARAI)

3 $2.68 $1.93
27 91308-PA9-003 91308-PA9-003 / O-RING (19.8X1.9) (ARAI)

2 $2.82 $2.03
