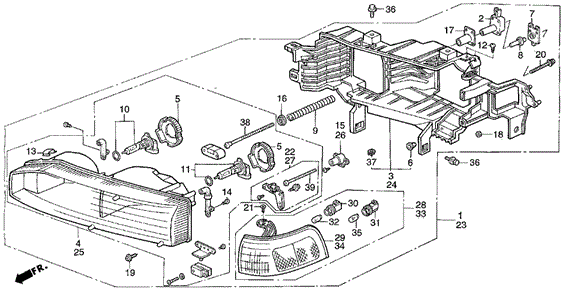

HEADLIGHT ASSY., R. (STANLEY) in ELECTRICAL / EXHAUST / HEATER / FUEL/HEADLIGHT (1) for 1991 Honda ACCORD 5-DOOR

HEADLIGHT ASSY., R. (STANLEY) in ELECTRICAL / EXHAUST / HEATER / FUEL/HEADLIGHT (1) for 1991 Honda ACCORD 5-DOOR #1
18
  • NUT (5MM)
36
  • BOLT-WASHER (6X16) - $0.79
34
  • LENS, L. - $26.80
14
  • SCREW, SPECIAL (4X12) - $1.19
8
  • NUT C, SPECIAL - $3.01
3
  • HOUSING, R. - $30.36
33
  • LIGHT ASSY., L. FR. POSITION &SIDE MARKER - $35.03
16
  • HOLDER E - $3.05
27
  • HOLDER D, L.
5
  • HOLDER, BULB - $2.59
10
  • BULB, HEADLIGHT (HB3) (12V 60W) (SYLVANIA) - $8.35
  • BULB, HEADLIGHT (HB3) (12V 60W) (STANLEY) - $8.35
6
  • NUT B, SPECIAL - $1.55
30
  • SOCKET - $7.43
25
  • HEADLIGHT UNIT, L. - $120.80
38
  • SCREW, ADJUST
15
  • NUT D, R. SPECIAL
29
  • LENS, R. - $26.80
32
  • BULB (12V 5W) (KRYPTON) - $3.90
26
  • NUT D, L. SPECIAL - $3.85
24
  • HOUSING, L. - $30.36
4
  • HEADLIGHT UNIT, R. - $120.80
2
  • HOLDER C - $3.72
31
  • SOCKET (2) - $5.38
20
  • SCREW, SPECIAL (4X60) - $1.75
22
  • HOLDER D, R. - $4.92
35
  • BULB (12V/5W) (STANLEY) - $1.33
28
  • LIGHT ASSY., R. FR. POSITION &SIDE MARKER - $33.54
5
  • HOLDER, BULB - $2.59
21
  • SCREW, SPECIAL (4X12) - $1.19
1
  • HEADLIGHT ASSY., R. (STANLEY) - $171.92
39
  • SCREW, ADJUST
7
  • HOLDER B - $2.62
23
  • HEADLIGHT ASSY., L. (STANLEY)
11
  • BULB, HEADLIGHT (HB4) (12V 51W) (STANLEY) - $8.35
  • BULB, HEADLIGHT (HB4) (12V 51W) (STANLEY) - $8.35
  • BULB, HEADLIGHT (HB4) (12V 51W) (PHILIPS) - $8.35
19
  • SCREW, SPECIAL (5X25) - $2.57
9
  • SPRING
36
  • BOLT-WASHER (6X16) - $0.79
12
  • SCREW, TAPPING (5X18) - $1.40
37
  • NUT A, SPECIAL - $2.03
17
  • BRACKET - $11.27
13
  • CLIP, LENS HOLDER - $1.34
No. Part # Part # / Description Qty Req. List Price Price
1 33100-SM4-A02 33100-SM4-A02 / HEADLIGHT ASSY., R. (STANLEY)

1 $238.78 $171.92
2 33101-SM4-A01 33101-SM4-A01 / HOLDER C

2 $5.17 $3.72
3 33102-SM4-A01 33102-SM4-A01 / HOUSING, R.

1 $42.17 $30.36
4 33103-SM4-A02 33103-SM4-A02 / HEADLIGHT UNIT, R.

1 $167.78 $120.80
5 33104-SV4-A01 33104-SV4-A01 / HOLDER, BULB

4 $3.60 $2.59
6 33105-SM4-A01 33105-SM4-A01 / NUT B, SPECIAL

2 $2.15 $1.55
7 33109-SM4-A01 33109-SM4-A01 / HOLDER B

2 $3.63 $2.62
8 33111-SM4-A01 33111-SM4-A01 / NUT C, SPECIAL

2 $4.18 $3.01
9 33114-SM4-A01 33114-SM4-A01 / SPRING

2 - -
10 33115-S84-A01 33115-S84-A01 / BULB, HEADLIGHT (HB3) (12V 60W) (SYLVANIA)

2 $11.60 $8.35
10 33115-S84-A01 33115-S84-A01 / BULB, HEADLIGHT (HB3) (12V 60W) (STANLEY)

2 $11.60 $8.35
11 33116-TA0-A01 33116-TA0-A01 / BULB, HEADLIGHT (HB4) (12V 51W) (STANLEY)

2 $11.60 $8.35
11 33116-TA0-A01 33116-TA0-A01 / BULB, HEADLIGHT (HB4) (12V 51W) (STANLEY)

2 $11.60 $8.35
11 33116-TA0-A01 33116-TA0-A01 / BULB, HEADLIGHT (HB4) (12V 51W) (PHILIPS)

2 $11.60 $8.35
12 33116-SM4-A01 33116-SM4-A01 / SCREW, TAPPING (5X18)

4 $1.95 $1.40
13 33117-SM4-A01 33117-SM4-A01 / CLIP, LENS HOLDER

10 $1.86 $1.34
21 33128-SM4-A01 33128-SM4-A01 / SCREW, SPECIAL (4X12)

2 $1.65 $1.19
15 33119-SM4-A01 33119-SM4-A01 / NUT D, R. SPECIAL

1 - -
16 33123-SM4-A01 33123-SM4-A01 / HOLDER E

2 $4.23 $3.05
17 33124-SM4-A01 33124-SM4-A01 / BRACKET

2 $15.65 $11.27
18 33125-SM4-A01 33125-SM4-A01 / NUT (5MM)

4 - -
19 33126-SM4-A01 33126-SM4-A01 / SCREW, SPECIAL (5X25)

4 $3.57 $2.57
20 33127-SM4-A01 33127-SM4-A01 / SCREW, SPECIAL (4X60)

6 $2.43 $1.75
22 33129-SM4-A01 33129-SM4-A01 / HOLDER D, R.

1 $6.83 $4.92
23 33150-SM4-A02 33150-SM4-A02 / HEADLIGHT ASSY., L. (STANLEY)

1 - -
24 33152-SM4-A01 33152-SM4-A01 / HOUSING, L.

1 $42.17 $30.36
25 33153-SM4-A02 33153-SM4-A02 / HEADLIGHT UNIT, L.

1 $167.78 $120.80
26 33169-SM4-A01 33169-SM4-A01 / NUT D, L. SPECIAL

1 $5.35 $3.85
27 33179-SM4-A01 33179-SM4-A01 / HOLDER D, L.

1 - -
28 34300-SM4-A02 34300-SM4-A02 / LIGHT ASSY., R. FR. POSITION &SIDE MARKER

1 $46.58 $33.54
29 34301-SM4-A02 34301-SM4-A02 / LENS, R.

1 $37.22 $26.80
30 34304-SH3-A01 34304-SH3-A01 / SOCKET

2 $10.32 $7.43
31 34305-SH3-A01 34305-SH3-A01 / SOCKET (2)

2 $7.47 $5.38
32 34306-SH3-003 34306-SH3-003 / BULB (12V 5W) (KRYPTON)

2 $5.42 $3.90
33 34350-SM4-A02 34350-SM4-A02 / LIGHT ASSY., L. FR. POSITION &SIDE MARKER

1 $48.65 $35.03
34 34351-SM4-A02 34351-SM4-A02 / LENS, L.

1 $37.22 $26.80
35 34351-657-921 34351-657-921 / BULB (12V/5W) (STANLEY)

2 $1.85 $1.33
36 90182-SB6-000 90182-SB6-000 / BOLT-WASHER (6X16)

10 $1.10 $0.79
37 90302-SM4-003 90302-SM4-003 / NUT A, SPECIAL

8 $2.82 $2.03
38 33113-SM4-A01 33113-SM4-A01 / SCREW, ADJUST

2 - -
39 33120-SM4-A01 33120-SM4-A01 / SCREW, ADJUST

2 - -
