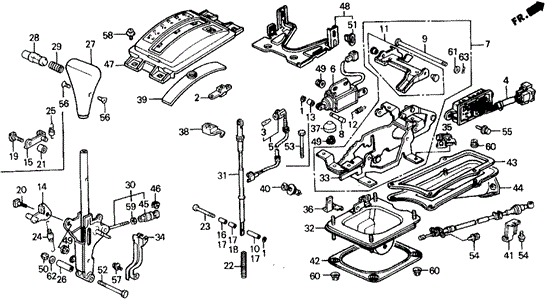

SOLENOID ASSY., AT (KEIHIN) in CHASSIS/SELECT LEVER (1) 2WD for 1990 Honda CIVIC 5-DOOR

SOLENOID ASSY., AT (KEIHIN) in CHASSIS/SELECT LEVER (1) 2WD for 1990 Honda CIVIC 5-DOOR #1
37
  • CAP A, RUBBER - $2.82
40
  • CLIP, SELECT LEVER BRACKET - $2.48
  • CLIP, SELECT LEVER BRACKET - $2.48
24
  • SPRING ASSY., SELECT STOPPER - $4.18
29
  • SPRING, PUSH KNOB - $2.06
6
  • SOLENOID ASSY., AT (KEIHIN)
  • SOLENOID ASSY., AT (SHINDENGEN)
55
  • BOLT-WASHER (6X12) - $0.67
1
  • E-CLIP (3MM) - $1.27
49
  • NUT, SELF-LOCK (6MM) - $2.18
35
  • CLAMP, WIRE HARNESS - $4.46
9
  • PIN, SHIFT LOCK - $4.03
49
  • NUT, SELF-LOCK (6MM) - $2.18
34
  • GUIDE, WIRE HARNESS
63
  • PIN, SPLIT (1.6X12) - $0.34
41
  • HOLDER, CONTROL WIRE
26
  • COLLAR, SELECT LEVER - $5.89
23
  • PIN, LOCK - $5.32
32
  • BRACKET, SELECT LEVER
57
  • SCREW-WASHER (4X6) - $0.38
59
  • NUT, HEX. (6MM) - $0.49
50
  • NUT, SELF-LOCK (6MM) - $2.47
20
  • BOLT, SELECTOR STOPPER - $3.73
10
  • COLLAR, LOCK PIN - $2.14
39
  • COVER, SELECT LEVER
46
  • PIN, CONTROL WIRE ADJUSTER - $2.88
56
  • SCREW, OVAL (5X8) - $0.40
38
  • INDICATOR
18
  • COLLAR, LOCK PIN - $2.66
44
  • BRACKET, CONTROL WIRE - $18.61
5
  • LAMP ASSY., INDICATOR (AT) - $13.73
52
  • BOLT, HEX. (6X55) - $0.77
27
  • KNOB, SELECT LEVER - $30.78
42
  • SEAL, CONTROL - $6.94
54
  • BOLT-WASHER (6X12) - $0.64
16
  • COLLAR, LOCK PIN - $2.59
61
  • WASHER, PLAIN (5MM) - $0.38
56
  • SCREW, OVAL (5X8) - $0.40
12
  • SPRING, SHIFT LOCK - $2.23
14
  • STOPPER, SELECT LEVER - $12.61
8
  • PIN, SOLENOID - $3.80
7
  • BRACKET, CONTROL
45
  • PIPE, CONTROL WIRE ADJUSTING - $8.45
49
  • NUT, SELF-LOCK (6MM) - $2.18
28
  • KNOB, PUSH - $35.88
51
  • GROMMET, SCREW (4MM) - $1.69
30
  • LEVER, SELECT
22
  • SPRING, LOCK PIN - $3.76
58
  • SCREW-WASHER (5X10) - $0.49
11
  • CANCELLER, SHIFT LOCK - $9.00
62
  • WASHER, PLAIN (6MM) - $0.25
54
  • BOLT-WASHER (6X12) - $0.64
3
  • BULB (14V 1.4W) - $2.22
  • BULB (14V 1.4W) - $2.22
13
  • COLLAR, SHIFT LOCK - $2.08
43
  • SEAL, CONTROL WIRE BRACKET
4
  • SWITCH ASSY., AUTOMATIC TRANSAXLE GEAR POSITION
2
  • CYLINDER, PARKING LOCK KEY - $10.06
36
  • BRACKET, HARNESS - $2.74
31
  • ROD, LOCK PIN
No. Part # Part # / Description Qty Req. List Price Price
1 30158-700-010 30158-700-010 / E-CLIP (3MM)

2 $1.77 $1.27
2 35104-SK7-003 35104-SK7-003 / CYLINDER, PARKING LOCK KEY

1 $13.97 $10.06
3 35505-TA5-A51 35505-TA5-A51 / BULB (14V 1.4W)

1 $3.08 $2.22
3 35505-TA5-A51 35505-TA5-A51 / BULB (14V 1.4W)

1 $3.08 $2.22
4 35700-SH3-961 35700-SH3-961 / SWITCH ASSY., AUTOMATIC TRANSAXLE GEAR POSITION

1 - -
5 37700-SH3-981 37700-SH3-981 / LAMP ASSY., INDICATOR (AT)

1 $19.07 $13.73
6 39550-SH3-962 39550-SH3-962 / SOLENOID ASSY., AT (KEIHIN)

1 - -
6 39550-SH3-962 39550-SH3-962 / SOLENOID ASSY., AT (SHINDENGEN)

1 - -
7 54020-SH3-A72 54020-SH3-A72 / BRACKET, CONTROL

1 - -
8 54024-SF1-J81 54024-SF1-J81 / PIN, SOLENOID

1 $5.28 $3.80
9 54024-SH3-970 54024-SH3-970 / PIN, SHIFT LOCK

1 $5.60 $4.03
10 54026-SJ4-980 54026-SJ4-980 / COLLAR, LOCK PIN

1 $2.97 $2.14
11 54030-SH3-A71 54030-SH3-A71 / CANCELLER, SHIFT LOCK

1 $12.50 $9.00
12 54031-SE0-J81 54031-SE0-J81 / SPRING, SHIFT LOCK

1 $3.10 $2.23
13 54036-SF1-J81 54036-SF1-J81 / COLLAR, SHIFT LOCK

1 $2.88 $2.08
14 54110-SH3-970 54110-SH3-970 / STOPPER, SELECT LEVER

1 $17.52 $12.61
16 54113-SE0-981 54113-SE0-981 / COLLAR, LOCK PIN

1 $3.60 $2.59
18 54114-SE0-980 54114-SE0-980 / COLLAR, LOCK PIN

1 $3.70 $2.66
20 54115-SJ4-980 54115-SJ4-980 / BOLT, SELECTOR STOPPER

1 $5.18 $3.73
22 54117-692-980 54117-692-980 / SPRING, LOCK PIN

1 $5.22 $3.76
23 54119-SJ4-980 54119-SJ4-980 / PIN, LOCK

1 $7.38 $5.32
24 54120-SH3-970 54120-SH3-970 / SPRING ASSY., SELECT STOPPER

1 $5.80 $4.18
26 54123-SE0-980 54123-SE0-980 / COLLAR, SELECT LEVER

1 $8.18 $5.89
27 54131-SH3-A81 54131-SH3-A81 / KNOB, SELECT LEVER

1 $42.75 $30.78
28 54132-SH4-982 54132-SH4-982 / KNOB, PUSH

1 $49.83 $35.88
29 54133-SH9-980 54133-SH9-980 / SPRING, PUSH KNOB

1 $2.87 $2.06
30 54135-SH5-A70 54135-SH5-A70 / LEVER, SELECT

1 - -
31 54136-SJ4-980 54136-SJ4-980 / ROD, LOCK PIN

1 - -
32 54201-SH3-973 54201-SH3-973 / BRACKET, SELECT LEVER

1 - -
34 54204-SH3-980 54204-SH3-980 / GUIDE, WIRE HARNESS

1 - -
35 54205-SH3-971 54205-SH3-971 / CLAMP, WIRE HARNESS

1 $6.21 $4.46
36 54207-SH3-971 54207-SH3-971 / BRACKET, HARNESS

1 $3.80 $2.74
37 54209-SH3-970 54209-SH3-970 / CAP A, RUBBER

1 $3.92 $2.82
38 54211-SH3-A82 54211-SH3-A82 / INDICATOR

1 - -
39 54222-SH3-980 54222-SH3-980 / COVER, SELECT LEVER

1 - -
40 54225-SH3-972 54225-SH3-972 / CLIP, SELECT LEVER BRACKET

2 $3.45 $2.48
40 54225-SH3-972 54225-SH3-972 / CLIP, SELECT LEVER BRACKET

2 $3.45 $2.48
41 54317-SH3-982 54317-SH3-982 / HOLDER, CONTROL WIRE

1 - -
42 54318-SK3-E81 54318-SK3-E81 / SEAL, CONTROL

1 $9.63 $6.94
43 54319-SH3-981 54319-SH3-981 / SEAL, CONTROL WIRE BRACKET

1 - -
44 54351-SH3-980 54351-SH3-980 / BRACKET, CONTROL WIRE

1 $26.18 $18.61
45 54361-SE0-980 54361-SE0-980 / PIPE, CONTROL WIRE ADJUSTING

1 $11.73 $8.45
46 54363-689-981 54363-689-981 / PIN, CONTROL WIRE ADJUSTER

1 $4.00 $2.88
49 90114-SA0-000 90114-SA0-000 / NUT, SELF-LOCK (6MM)

8 $3.03 $2.18
50 90308-SA0-981 90308-SA0-981 / NUT, SELF-LOCK (6MM)

1 $3.43 $2.47
51 91641-SH5-000 91641-SH5-000 / GROMMET, SCREW (4MM)

2 $2.35 $1.69
52 92201-06055-0H 92201-06055-0H / BOLT, HEX. (6X55)

1 $1.07 $0.77
54 93402-06012-08 93402-06012-08 / BOLT-WASHER (6X12)

3 $0.88 $0.64
55 93405-06012-08 93405-06012-08 / BOLT-WASHER (6X12)

2 $0.93 $0.67
56 93700-05008-0G 93700-05008-0G / SCREW, OVAL (5X8)

2 $0.55 $0.40
57 93892-04006-07 93892-04006-07 / SCREW-WASHER (4X6)

2 $0.58 $0.38
58 93894-05010-08 93894-05010-08 / SCREW-WASHER (5X10)

4 $0.68 $0.49
59 94001-06080-0S 94001-06080-0S / NUT, HEX. (6MM)

1 $0.68 $0.49
61 94101-05800 94101-05800 / WASHER, PLAIN (5MM)

1 $0.53 $0.38
62 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

1 $0.35 $0.25
63 94201-16120 94201-16120 / PIN, SPLIT (1.6X12)

1 $0.47 $0.34
