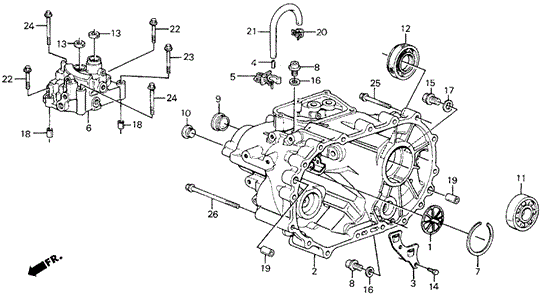

CASE, TRANSMISSION in TRANSMISSION - MANUAL/MT TRANSMISSION HOUSING for 1990 Honda CIVIC 5-DOOR

CASE, TRANSMISSION in TRANSMISSION - MANUAL/MT TRANSMISSION HOUSING for 1990 Honda CIVIC 5-DOOR #1
19
  • PIN, DOWEL (14X20) - $0.98
13
  • DUST SEAL (16X23X5) (NOK) - $3.23
13
  • DUST SEAL (16X23X5) (NOK) - $3.23
2
  • CASE, TRANSMISSION - $312.17
3
  • PLATE, OIL COLLECT - $4.99
8
  • BOLT, PLUG (14MM) - $8.75
11
  • BEARING, BALL (6306/25)
5
  • CLAMP, BREATHER TUBE - $8.24
15
  • BOLT, DRAIN PLUG (20MM) - $2.22
6
  • COVER, SHIFT ARM - $93.08
19
  • PIN, DOWEL (14X20) - $0.98
16
  • WASHER, DRAIN PLUG (14MM) - $0.28
10
  • BOLT, SEALING (18MM) - $6.44
22
  • BOLT, FLANGE (6X35) - $0.74
  • BOLT, FLANGE (6X35) - $0.74
21
  • BULK HOSE, VACUUM (4.5X1000) - $16.00
4
  • PLUG, BREATHER TUBE - $2.72
1
  • PLATE M, OIL GUIDE
18
  • PIN, DOWEL (8X14) - $0.84
24
  • BOLT, FLANGE (6X60) - $0.86
22
  • BOLT, FLANGE (6X35) - $0.74
  • BOLT, FLANGE (6X35) - $0.74
9
  • BOLT, SEALING (32MM) - $8.17
14
  • BOLT, HEX. (6X12) - $0.56
  • BOLT, HEX. (6X12) - $0.56
7
  • SHIM E (75MM) (1.32) - $5.86
  • SHIM AL (75MM) (2.31) - $5.86
  • SHIM AI (75MM) (2.22) - $5.86
  • SHIM P (75MM) (1.65) - $5.86
  • SHIM AJ (75MM) (2.25) - $5.86
  • SHIM AN (75MM) (2.37) - $5.86
  • SHIM AC (75MM) (2.04) - $5.86
  • SHIM J (75MM) (1.47) - $5.86
  • SHIM V (75MM) (1.83) - $5.86
  • SHIM AK (75MM) (2.28) - $5.86
  • SHIM C (75MM) (1.26) - $5.86
  • SHIM T (75MM) (1.77) - $5.86
  • SHIM K (75MM) (1.50) - $5.86
  • SHIM M (75MM) (1.56) - $5.86
  • SHIM F (75MM) (1.35) - $6.01
  • SHIM O (75MM) (1.62) - $5.86
  • SHIM H (75MM) (1.41) - $5.86
  • SHIM S (75MM) (1.74) - $5.86
  • SHIM I (75MM) (1.44) - $5.86
  • SHIM N (75MM) (1.59) - $5.86
  • SHIM AB (75MM) (2.01) - $5.86
  • SHIM U (75MM) (1.80) - $5.86
  • SHIM AH (75MM) (2.19) - $5.86
  • SHIM A (75MM) (1.20) - $5.86
  • SHIM D (75MM) (1.29) - $5.86
  • SHIM Y (75MM) (1.92) - $5.86
  • SHIM AD (75MM) (2.07) - $5.86
  • SHIM AG (75MM) (2.16) - $5.86
  • SHIM Z (75MM) (1.95) - $5.86
  • SHIM AE (75MM) (2.10) - $5.86
  • SHIM G (75MM) (1.38) - $5.86
  • SHIM B (75MM) (1.23) - $6.86
  • SHIM AA (75MM) (1.98) - $5.86
  • SHIM Q (75MM) (1.68) - $5.86
  • SHIM W (75MM) (1.86) - $5.86
  • SHIM AF (75MM) (2.13) - $5.86
  • SHIM R (75MM) (1.71) - $5.86
  • SHIM X (75MM) (1.89) - $5.86
  • SHIM AM (75MM) (2.34) - $5.86
  • SHIM L (75MM) (1.53) - $5.86
16
  • WASHER, DRAIN PLUG (14MM) - $0.28
17
  • WASHER, DRAIN PLUG (20MM) - $0.53
23
  • BOLT, FLANGE (6X55) - $0.86
25
  • BOLT, FLANGE (8X45) - $0.92
  • BOLT, FLANGE (8X45) - $0.92
12
  • OIL SEAL (40X76X9) (NOK) - $8.64
18
  • PIN, DOWEL (8X14) - $0.84
26
  • BOLT, FLANGE (8X100) - $1.18
24
  • BOLT, FLANGE (6X60) - $0.86
8
  • BOLT, PLUG (14MM) - $8.75
20
  • CLAMP, TUBE (D8.5) - $1.06
No. Part # Part # / Description Qty Req. List Price Price
1 21104-PH8-000 21104-PH8-000 / PLATE M, OIL GUIDE

1 - -
2 21200-PH8-903 21200-PH8-903 / CASE, TRANSMISSION

1 $433.57 $312.17
3 21212-PH8-010 21212-PH8-010 / PLATE, OIL COLLECT

1 $6.93 $4.99
4 21321-689-000 21321-689-000 / PLUG, BREATHER TUBE

1 $3.78 $2.72
5 21399-PH8-010 21399-PH8-010 / CLAMP, BREATHER TUBE

1 $11.45 $8.24
6 21521-PH8-600 21521-PH8-600 / COVER, SHIFT ARM

1 $129.29 $93.08
7 23945-PH8-900 23945-PH8-900 / SHIM E (75MM) (1.32)

1 $8.13 $5.86
7 23978-PH8-900 23978-PH8-900 / SHIM AL (75MM) (2.31)

1 $8.13 $5.86
7 23975-PH8-900 23975-PH8-900 / SHIM AI (75MM) (2.22)

1 $8.13 $5.86
7 23956-PH8-900 23956-PH8-900 / SHIM P (75MM) (1.65)

1 $8.13 $5.86
7 23976-PH8-900 23976-PH8-900 / SHIM AJ (75MM) (2.25)

1 $8.13 $5.86
7 23980-PH8-900 23980-PH8-900 / SHIM AN (75MM) (2.37)

1 $8.13 $5.86
7 23969-PH8-900 23969-PH8-900 / SHIM AC (75MM) (2.04)

1 $8.13 $5.86
7 23950-PH8-900 23950-PH8-900 / SHIM J (75MM) (1.47)

1 $8.13 $5.86
7 23962-PH8-900 23962-PH8-900 / SHIM V (75MM) (1.83)

1 $8.13 $5.86
7 23977-PH8-900 23977-PH8-900 / SHIM AK (75MM) (2.28)

1 $8.13 $5.86
7 23943-PH8-900 23943-PH8-900 / SHIM C (75MM) (1.26)

1 $8.13 $5.86
7 23960-PH8-900 23960-PH8-900 / SHIM T (75MM) (1.77)

1 $8.13 $5.86
7 23951-PH8-900 23951-PH8-900 / SHIM K (75MM) (1.50)

1 $8.13 $5.86
7 23953-PH8-900 23953-PH8-900 / SHIM M (75MM) (1.56)

1 $8.13 $5.86
7 23946-PH8-900 23946-PH8-900 / SHIM F (75MM) (1.35)

1 $8.35 $6.01
7 23955-PH8-900 23955-PH8-900 / SHIM O (75MM) (1.62)

1 $8.13 $5.86
7 23948-PH8-900 23948-PH8-900 / SHIM H (75MM) (1.41)

1 $8.13 $5.86
7 23959-PH8-900 23959-PH8-900 / SHIM S (75MM) (1.74)

1 $8.13 $5.86
7 23949-PH8-900 23949-PH8-900 / SHIM I (75MM) (1.44)

1 $8.13 $5.86
7 23954-PH8-900 23954-PH8-900 / SHIM N (75MM) (1.59)

1 $8.13 $5.86
7 23968-PH8-900 23968-PH8-900 / SHIM AB (75MM) (2.01)

1 $8.13 $5.86
7 23961-PH8-900 23961-PH8-900 / SHIM U (75MM) (1.80)

1 $8.13 $5.86
7 23974-PH8-900 23974-PH8-900 / SHIM AH (75MM) (2.19)

1 $8.13 $5.86
7 23941-PH8-900 23941-PH8-900 / SHIM A (75MM) (1.20)

1 $8.13 $5.86
7 23944-PH8-900 23944-PH8-900 / SHIM D (75MM) (1.29)

1 $8.13 $5.86
7 23965-PH8-900 23965-PH8-900 / SHIM Y (75MM) (1.92)

1 $8.13 $5.86
7 23970-PH8-900 23970-PH8-900 / SHIM AD (75MM) (2.07)

1 $8.13 $5.86
7 23973-PH8-900 23973-PH8-900 / SHIM AG (75MM) (2.16)

1 $8.13 $5.86
7 23966-PH8-900 23966-PH8-900 / SHIM Z (75MM) (1.95)

1 $8.13 $5.86
7 23971-PH8-900 23971-PH8-900 / SHIM AE (75MM) (2.10)

1 $8.13 $5.86
7 23947-PH8-900 23947-PH8-900 / SHIM G (75MM) (1.38)

1 $8.13 $5.86
7 23942-PH8-900 23942-PH8-900 / SHIM B (75MM) (1.23)

1 $9.53 $6.86
7 23967-PH8-900 23967-PH8-900 / SHIM AA (75MM) (1.98)

1 $8.13 $5.86
7 23957-PH8-900 23957-PH8-900 / SHIM Q (75MM) (1.68)

1 $8.13 $5.86
7 23963-PH8-900 23963-PH8-900 / SHIM W (75MM) (1.86)

1 $8.13 $5.86
7 23972-PH8-900 23972-PH8-900 / SHIM AF (75MM) (2.13)

1 $8.13 $5.86
7 23958-PH8-900 23958-PH8-900 / SHIM R (75MM) (1.71)

1 $8.13 $5.86
7 23964-PH8-900 23964-PH8-900 / SHIM X (75MM) (1.89)

1 $8.13 $5.86
7 23979-PH8-900 23979-PH8-900 / SHIM AM (75MM) (2.34)

1 $8.13 $5.86
7 23952-PH8-900 23952-PH8-900 / SHIM L (75MM) (1.53)

1 $8.13 $5.86
8 90081-PB6-000 90081-PB6-000 / BOLT, PLUG (14MM)

2 $12.15 $8.75
9 90081-PH8-000 90081-PH8-000 / BOLT, SEALING (32MM)

1 $11.35 $8.17
10 90083-PH8-000 90083-PH8-000 / BOLT, SEALING (18MM)

1 $8.94 $6.44
11 91004-PG1-008 91004-PG1-008 / BEARING, BALL (6306/25)

1 - -
12 91206-PC8-005 91206-PC8-005 / OIL SEAL (40X76X9) (NOK)

1 $12.00 $8.64
13 91209-PE9-005 91209-PE9-005 / DUST SEAL (16X23X5) (NOK)

2 $4.48 $3.23
14 92101-06012-0A 92101-06012-0A / BOLT, HEX. (6X12)

2 $0.78 $0.56
14 92101-06012 92101-06012 / BOLT, HEX. (6X12)

2 $0.78 $0.56
15 92800-20000 92800-20000 / BOLT, DRAIN PLUG (20MM)

1 $3.08 $2.22
16 94109-14000 94109-14000 / WASHER, DRAIN PLUG (14MM)

2 $0.38 $0.28
17 94109-20000 94109-20000 / WASHER, DRAIN PLUG (20MM)

1 $0.73 $0.53
18 94301-08140 94301-08140 / PIN, DOWEL (8X14)

2 $1.17 $0.84
19 94301-14200 94301-14200 / PIN, DOWEL (14X20)

2 $1.37 $0.98
20 95002-40850-04 95002-40850-04 / CLAMP, TUBE (D8.5)

1 $1.47 $1.06
21 95005-45001-20M 95005-45001-20M / BULK HOSE, VACUUM (4.5X1000)

1 $22.22 $16.00
22 95701-06035-08 95701-06035-08 / BOLT, FLANGE (6X35)

2 $1.03 $0.74
22 95900-06035-08 95900-06035-08 / BOLT, FLANGE (6X35)

2 $1.03 $0.74
23 95701-06055-08 95701-06055-08 / BOLT, FLANGE (6X55)

1 $1.20 $0.86
24 95701-06060-08 95701-06060-08 / BOLT, FLANGE (6X60)

2 $1.20 $0.86
25 95701-08045-08 95701-08045-08 / BOLT, FLANGE (8X45)

13 $1.28 $0.92
25 95700-08045-08 95700-08045-08 / BOLT, FLANGE (8X45)

13 $1.28 $0.92
26 95701-08100-08 95701-08100-08 / BOLT, FLANGE (8X100)

3 $1.63 $1.18
