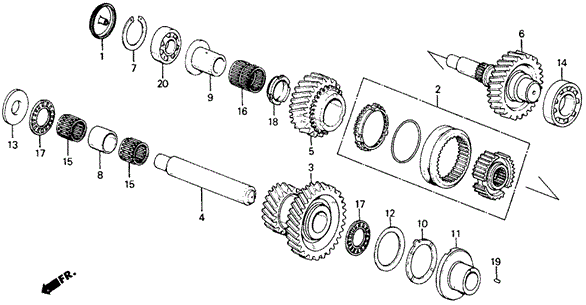

SLEEVE SET, SYNCHRONIZER in TRANSMISSION - MANUAL/MT SUPER LOW GEARS 4WD for 1990 Honda CIVIC 5-DOOR

SLEEVE SET, SYNCHRONIZER in TRANSMISSION - MANUAL/MT SUPER LOW GEARS 4WD for 1990 Honda CIVIC 5-DOOR #1
11
  • COLLAR, DISTANCE (24X66X24) - $16.33
14
  • BEARING, BALL (62/28) (NTN CORP.)
  • BEARING, BALL (62/28) (KOYO)
17
  • BEARING, THRUST NEEDLE (24X44X2) - $8.38
20
  • BEARING, RADIAL BALL (6204U) - $11.90
12
  • WASHER, SPRING (62MM) - $8.75
6
  • SHAFT, SUPER LOW GEAR (2) - $93.43
19
  • PIN, SPRING (2.5X10) - $0.59
15
  • BEARING, NEEDLE (24X30X20) - $16.76
13
  • WASHER, THRUST (20X44X5) - $4.36
10
  • WASHER, THRUST (46X62X2) - $6.52
2
  • SLEEVE SET, SYNCHRONIZER
17
  • BEARING, THRUST NEEDLE (24X44X2) - $8.38
1
  • PLATE, OIL GUIDE (S) - $2.29
3
  • GEAR, SUPER LOW (1) - $115.33
4
  • SHAFT, SUPER LOW GEAR (1) - $23.05
9
  • COLLAR, DISTANCE (23X32X35) - $12.43
16
  • BEARING, NEEDLE (32X37X26) - $14.75
5
  • GEAR, SUPER LOW (2) - $115.33
8
  • COLLAR, DISTANCE (24X30X22) - $3.32
7
  • SHIM H (47MM) (1.7) - $4.51
  • SHIM F (47MM) (1.5) - $4.51
  • SHIM D (47MM) (1.3) - $4.51
  • SHIM G (47MM) (1.6) - $4.51
  • SHIM B (47MM) (1.1) - $4.51
  • SHIM C (47MM) (1.2) - $4.51
  • SHIM A (47MM) (1.0) - $4.51
  • SHIM E (47MM) (1.4) - $4.51
18
  • DAMPER, FRICTION (LOW) (KOYO) - $5.40
  • DAMPER, FRICTION (LOW) - $6.49
15
  • BEARING, NEEDLE (24X30X20) - $16.76
No. Part # Part # / Description Qty Req. List Price Price
1 21105-PH8-000 21105-PH8-000 / PLATE, OIL GUIDE (S)

1 $3.18 $2.29
2 23627-PH8-305 23627-PH8-305 / SLEEVE SET, SYNCHRONIZER

1 - -
3 23701-PH8-961 23701-PH8-961 / GEAR, SUPER LOW (1)

1 $160.18 $115.33
4 23711-PH8-000 23711-PH8-000 / SHAFT, SUPER LOW GEAR (1)

1 $32.02 $23.05
5 23721-PH8-020 23721-PH8-020 / GEAR, SUPER LOW (2)

1 $160.18 $115.33
6 23731-PH8-900 23731-PH8-900 / SHAFT, SUPER LOW GEAR (2)

1 $129.77 $93.43
7 23757-PH8-900 23757-PH8-900 / SHIM H (47MM) (1.7)

1 $6.27 $4.51
7 23755-PH8-900 23755-PH8-900 / SHIM F (47MM) (1.5)

1 $6.27 $4.51
7 23753-PH8-900 23753-PH8-900 / SHIM D (47MM) (1.3)

1 $6.27 $4.51
7 23756-PH8-900 23756-PH8-900 / SHIM G (47MM) (1.6)

1 $6.27 $4.51
7 23751-PH8-900 23751-PH8-900 / SHIM B (47MM) (1.1)

1 $6.27 $4.51
7 23752-PH8-900 23752-PH8-900 / SHIM C (47MM) (1.2)

1 $6.27 $4.51
7 23750-PH8-900 23750-PH8-900 / SHIM A (47MM) (1.0)

1 $6.27 $4.51
7 23754-PH8-900 23754-PH8-900 / SHIM E (47MM) (1.4)

1 $6.27 $4.51
8 23911-PH8-000 23911-PH8-000 / COLLAR, DISTANCE (24X30X22)

1 $4.62 $3.32
9 23912-PH8-900 23912-PH8-900 / COLLAR, DISTANCE (23X32X35)

1 $17.27 $12.43
10 23915-PH8-010 23915-PH8-010 / WASHER, THRUST (46X62X2)

1 $9.05 $6.52
11 23916-PH8-020 23916-PH8-020 / COLLAR, DISTANCE (24X66X24)

1 $22.68 $16.33
12 23925-PH8-020 23925-PH8-020 / WASHER, SPRING (62MM)

1 $12.15 $8.75
13 23926-PH8-010 23926-PH8-010 / WASHER, THRUST (20X44X5)

1 $6.05 $4.36
14 91001-PH8-004 91001-PH8-004 / BEARING, BALL (62/28) (NTN CORP.)

1 - -
14 91001-PH8-004 91001-PH8-004 / BEARING, BALL (62/28) (KOYO)

1 - -
15 91103-PH8-008 91103-PH8-008 / BEARING, NEEDLE (24X30X20)

2 $23.28 $16.76
16 91105-PH8-901 91105-PH8-901 / BEARING, NEEDLE (32X37X26)

1 $20.48 $14.75
17 91131-PH8-018 91131-PH8-018 / BEARING, THRUST NEEDLE (24X44X2)

2 $11.63 $8.38
18 91211-PL0-T01 91211-PL0-T01 / DAMPER, FRICTION (LOW) (KOYO)

1 $7.50 $5.40
18 91212-PL0-008 91212-PL0-008 / DAMPER, FRICTION (LOW)

1 $9.02 $6.49
19 94305-25102 94305-25102 / PIN, SPRING (2.5X10)

1 $0.82 $0.59
20 96140-62040-00 96140-62040-00 / BEARING, RADIAL BALL (6204U)

1 $16.53 $11.90
