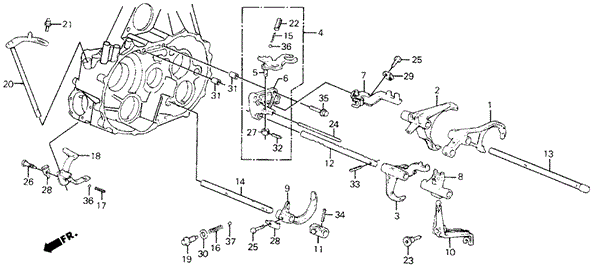

FORK, GEARSHIFT (3-4) in TRANSMISSION - MANUAL/MT SHIFT FORK - SELECTOR FORK 4WD for 1990 Honda CIVIC 5-DOOR

FORK, GEARSHIFT (3-4) in TRANSMISSION - MANUAL/MT SHIFT FORK - SELECTOR FORK 4WD for 1990 Honda CIVIC 5-DOOR #1
19
  • SCREW, BALL SPRING SETTING - $4.56
9
  • FORK, SUPER LOW GEARSHIFT - $43.68
2
  • FORK, GEARSHIFT (3-4) - $57.25
31
  • PIN, DOWEL (8X14) - $0.84
29
  • WASHER, LOCK (6MM) - $1.86
10
  • LEVER, SUPER LOW GEARSHIFT - $22.31
31
  • PIN, DOWEL (8X14) - $0.84
8
  • PIECE A, SUPER LOW SHIFT - $17.35
22
  • COLLAR, SPRING (8) - $3.35
25
  • BOLT, SPECIAL - $2.66
24
  • BAR, SUPER LOW SHIFT PIECE - $5.69
4
  • HOLDER ASSY., REVERSE SHIFT - $50.62
28
  • PLATE, LOCK (6MM) - $1.69
36
  • BALL, STEEL (#8) (1/4) - $0.55
1
  • FORK, FIFTH GEARSHIFT - $45.11
6
  • HOLDER, REVERSE SHIFT - $25.61
14
  • SHAFT, SUPER LOW SHIFT FORK
21
  • BOLT, STOPPER - $3.36
15
  • SPRING SET, BALL REVERSE - $2.44
13
  • SHAFT, SHIFT FORK (5-R) - $16.07
27
  • COLLAR, LOCK - $2.66
35
  • BOLT, FLANGE (6X32) - $0.74
33
  • PIN, SPRING (4X20) - $0.80
37
  • BALL, STEEL (#10) (5/16) - $0.59
25
  • BOLT, SPECIAL - $2.66
18
  • FORK, SELECTOR - $43.27
16
  • SPRING A, BALL SETTING - $3.37
12
  • SHAFT, SHIFT FORK (1-2) - $16.07
28
  • PLATE, LOCK (6MM) - $1.69
30
  • WASHER, DRAIN PLUG (12MM) - $0.43
11
  • PIECE B, SUPER LOW GEARSHIFT - $9.43
5
  • FORK, REVERSE SHIFT
32
  • PIN, SPRING (3X16) - $0.73
17
  • SPRING, SELECTOR STOP - $2.86
3
  • FORK, GEARSHIFT (1-2) - $56.81
20
  • ROD, SELECTOR - $30.89
26
  • BOLT, SPECIAL (6X16) - $2.62
7
  • PIECE, FIFTH & REVERSE SHIFT - $17.35
36
  • BALL, STEEL (#8) (1/4) - $0.55
23
  • BOLT, SUPER LOW LEVER CENTER - $6.66
34
  • PIN, SPRING (5X22) - $0.86
No. Part # Part # / Description Qty Req. List Price Price
1 24200-PH8-000 24200-PH8-000 / FORK, FIFTH GEARSHIFT

1 $62.65 $45.11
2 24210-PH8-901 24210-PH8-901 / FORK, GEARSHIFT (3-4)

1 $79.52 $57.25
3 24220-PH8-600 24220-PH8-600 / FORK, GEARSHIFT (1-2)

1 $78.90 $56.81
4 24230-PH8-900 24230-PH8-900 / HOLDER ASSY., REVERSE SHIFT

1 $70.30 $50.62
5 24231-PH8-000 24231-PH8-000 / FORK, REVERSE SHIFT

1 - -
6 24232-PH8-300 24232-PH8-300 / HOLDER, REVERSE SHIFT

1 $35.57 $25.61
7 24243-PH8-900 24243-PH8-900 / PIECE, FIFTH & REVERSE SHIFT

1 $24.10 $17.35
8 24250-PH8-600 24250-PH8-600 / PIECE A, SUPER LOW SHIFT

1 $24.10 $17.35
9 24251-PH8-000 24251-PH8-000 / FORK, SUPER LOW GEARSHIFT

1 $60.67 $43.68
10 24261-PH8-000 24261-PH8-000 / LEVER, SUPER LOW GEARSHIFT

1 $30.98 $22.31
11 24262-PH8-000 24262-PH8-000 / PIECE B, SUPER LOW GEARSHIFT

1 $13.10 $9.43
12 24311-PH8-901 24311-PH8-901 / SHAFT, SHIFT FORK (1-2)

1 $22.32 $16.07
13 24321-PH8-901 24321-PH8-901 / SHAFT, SHIFT FORK (5-R)

1 $22.32 $16.07
14 24331-PH8-020 24331-PH8-020 / SHAFT, SUPER LOW SHIFT FORK

1 - -
15 24453-PH8-300 24453-PH8-300 / SPRING SET, BALL REVERSE

1 $3.38 $2.44
16 24456-PH8-000 24456-PH8-000 / SPRING A, BALL SETTING

1 $4.68 $3.37
17 24457-PH8-960 24457-PH8-960 / SPRING, SELECTOR STOP

1 $3.97 $2.86
18 24510-PH8-900 24510-PH8-900 / FORK, SELECTOR

1 $60.10 $43.27
19 24519-PB6-000 24519-PB6-000 / SCREW, BALL SPRING SETTING

1 $6.33 $4.56
20 24520-PH8-900 24520-PH8-900 / ROD, SELECTOR

1 $42.90 $30.89
21 24524-PH8-960 24524-PH8-960 / BOLT, STOPPER

1 $4.66 $3.36
22 24611-PH8-000 24611-PH8-000 / COLLAR, SPRING (8)

1 $4.65 $3.35
23 24621-PH8-000 24621-PH8-000 / BOLT, SUPER LOW LEVER CENTER

1 $9.26 $6.66
24 24631-PH8-000 24631-PH8-000 / BAR, SUPER LOW SHIFT PIECE

1 $7.90 $5.69
25 90028-634-000 90028-634-000 / BOLT, SPECIAL

2 $3.70 $2.66
26 90029-PH8-000 90029-PH8-000 / BOLT, SPECIAL (6X16)

1 $3.63 $2.62
27 90403-689-000 90403-689-000 / COLLAR, LOCK

1 $3.70 $2.66
28 90432-634-020 90432-634-020 / PLATE, LOCK (6MM)

2 $2.35 $1.69
29 90439-PH8-000 90439-PH8-000 / WASHER, LOCK (6MM)

1 $2.58 $1.86
30 94109-12000 94109-12000 / WASHER, DRAIN PLUG (12MM)

1 $0.60 $0.43
31 94301-08140 94301-08140 / PIN, DOWEL (8X14)

2 $1.17 $0.84
32 94305-30162 94305-30162 / PIN, SPRING (3X16)

1 $1.02 $0.73
33 94305-40202 94305-40202 / PIN, SPRING (4X20)

1 $1.12 $0.80
34 94305-50222 94305-50222 / PIN, SPRING (5X22)

1 $1.20 $0.86
35 95701-06032-08 95701-06032-08 / BOLT, FLANGE (6X32)

3 $1.03 $0.74
36 96211-08000 96211-08000 / BALL, STEEL (#8) (1/4)

2 $0.77 $0.55
37 96211-10000 96211-10000 / BALL, STEEL (#10) (5/16)

1 $0.82 $0.59
