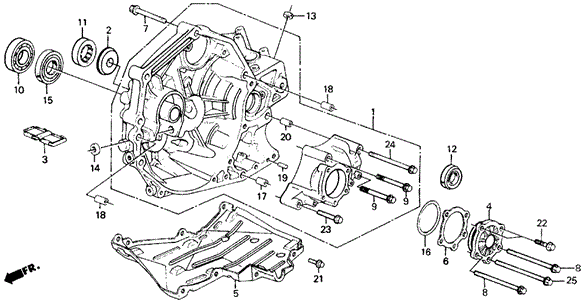

CASE SET, CLUTCH in TRANSMISSION - MANUAL/MT CLUTCH - TRANSFER CASE 4WD for 1990 Honda CIVIC 5-DOOR

CASE SET, CLUTCH in TRANSMISSION - MANUAL/MT CLUTCH - TRANSFER CASE 4WD for 1990 Honda CIVIC 5-DOOR #1
6
  • SHIM, L. TRANSFER SIDE (1.00) - $6.71
  • SHIM, L. (1,15) - $7.20
  • SHIM, L. (0.30) - $7.01
  • SHIM, L. (1.09) - $7.20
  • SHIM, L. (1,12) - $6.41
  • SHIM, L. (1.27) - $7.20
  • SHIM, L. (1.03) - $7.20
  • SHIM, L. (1.06) - $7.20
  • SHIM, L. TRANSFER SIDE (1.30) - $6.71
  • SHIM, L. (1.21) - $7.20
  • SHIM, L. TRANSFER SIDE (1.24) - $6.71
  • SHIM, L. TRANSFER SIDE (1,18) - $6.71
  • SHIM, L. TRANSFER SIDE (1.33) - $6.71
24
  • BOLT, FLANGE (10X100) - $1.73
15
  • OIL SEAL (28X41X7) (NOK) - $5.30
12
  • OIL SEAL (38X54X8) (NOK) - $8.64
14
  • DUST SEAL (18X23X4) (ARAI) - $3.68
  • DUST SEAL (18X23X4) (NOK) - $3.68
25
  • BOLT, FLANGE (10X125) - $1.99
13
  • OIL SEAL (12X18X4) (ARAI)
  • OIL SEAL (12X18X4) (NOK)
20
  • PIN, DOWEL (12X16) - $2.62
8
  • BOLT, FLANGE (10X115) - $5.05
7
  • BOLT, FLANGE (12X70) - $4.69
9
  • BOLT, FLANGE (10X85) - $1.73
5
  • GUARD, TRANSMISSION (LOWER) - $49.22
19
  • PIN B, DOWEL (8X14) - $0.80
3
  • MAGNET, TRANSMISSION - $9.72
11
  • BEARING, NEEDLE (29X55X22) - $17.88
18
  • PIN, DOWEL (14X20) - $0.98
2
  • PLATE C, OIL GUIDE - $4.99
21
  • BOLT, FLANGE (8X16) - $0.71
18
  • PIN, DOWEL (14X20) - $0.98
22
  • BOLT, FLANGE (10X32) - $0.94
8
  • BOLT, FLANGE (10X115) - $5.05
16
  • O-RING (79.7X2.2) - $3.44
23
  • BOLT, FLANGE (10X50) - $1.08
10
  • BEARING, BALL (63/28C) (TOYO) - $33.88
9
  • BOLT, FLANGE (10X85) - $1.73
17
  • PIN, DOWEL (12X20) - $0.96
1
  • CASE SET, CLUTCH
4
  • COVER, TRANSFER (L. SIDE) - $33.86
No. Part # Part # / Description Qty Req. List Price Price
1 21010-PH8-921 21010-PH8-921 / CASE SET, CLUTCH

1 - -
2 21103-PH8-010 21103-PH8-010 / PLATE C, OIL GUIDE

1 $6.93 $4.99
3 21120-PG2-003 21120-PG2-003 / MAGNET, TRANSMISSION

1 $13.50 $9.72
4 21411-PH8-911 21411-PH8-911 / COVER, TRANSFER (L. SIDE)

1 $47.03 $33.86
5 21611-PH8-900 21611-PH8-900 / GUARD, TRANSMISSION (LOWER)

1 $68.37 $49.22
6 29462-PH8-900 29462-PH8-900 / SHIM, L. TRANSFER SIDE (1.00)

1 $9.32 $6.71
6 29467-PH8-901 29467-PH8-901 / SHIM, L. (1,15)

1 $10.00 $7.20
6 29461-PH8-901 29461-PH8-901 / SHIM, L. (0.30)

1 $9.73 $7.01
6 29465-PH8-901 29465-PH8-901 / SHIM, L. (1.09)

1 $10.00 $7.20
6 29466-PH8-901 29466-PH8-901 / SHIM, L. (1,12)

1 $8.90 $6.41
6 29472-PH8-901 29472-PH8-901 / SHIM, L. (1.27)

1 $10.00 $7.20
6 29463-PH8-901 29463-PH8-901 / SHIM, L. (1.03)

1 $10.00 $7.20
6 29464-PH8-901 29464-PH8-901 / SHIM, L. (1.06)

1 $10.00 $7.20
6 29473-PH8-900 29473-PH8-900 / SHIM, L. TRANSFER SIDE (1.30)

1 $9.32 $6.71
6 29469-PH8-901 29469-PH8-901 / SHIM, L. (1.21)

1 $10.00 $7.20
6 29471-PH8-900 29471-PH8-900 / SHIM, L. TRANSFER SIDE (1.24)

1 $9.32 $6.71
6 29468-PH8-900 29468-PH8-900 / SHIM, L. TRANSFER SIDE (1,18)

1 $9.32 $6.71
6 29474-PH8-900 29474-PH8-900 / SHIM, L. TRANSFER SIDE (1.33)

1 $9.32 $6.71
7 90051-PE0-000 90051-PE0-000 / BOLT, FLANGE (12X70)

4 $6.52 $4.69
8 90023-PH8-000 90023-PH8-000 / BOLT, FLANGE (10X115)

2 $7.02 $5.05
9 95701-10085-08 95701-10085-08 / BOLT, FLANGE (10X85)

2 $2.40 $1.73
10 91002-PG1-018 91002-PG1-018 / BEARING, BALL (63/28C) (TOYO)

1 $47.05 $33.88
11 91104-PH8-008 91104-PH8-008 / BEARING, NEEDLE (29X55X22)

1 $24.83 $17.88
12 91205-PC8-935 91205-PC8-935 / OIL SEAL (38X54X8) (NOK)

1 $12.00 $8.64
13 91205-PH8-005 91205-PH8-005 / OIL SEAL (12X18X4) (ARAI)

1 - -
13 91205-PH8-005 91205-PH8-005 / OIL SEAL (12X18X4) (NOK)

1 - -
14 91208-PG1-003 91208-PG1-003 / DUST SEAL (18X23X4) (ARAI)

1 $5.12 $3.68
14 91208-PG1-005 91208-PG1-005 / DUST SEAL (18X23X4) (NOK)

1 $5.12 $3.68
15 91216-PH8-005 91216-PH8-005 / OIL SEAL (28X41X7) (NOK)

1 $7.37 $5.30
16 91309-PH8-000 91309-PH8-000 / O-RING (79.7X2.2)

1 $4.78 $3.44
17 94301-12200 94301-12200 / PIN, DOWEL (12X20)

1 $1.33 $0.96
18 94301-14200 94301-14200 / PIN, DOWEL (14X20)

2 $1.37 $0.98
19 94302-08140 94302-08140 / PIN B, DOWEL (8X14)

1 $1.12 $0.80
20 90705-PH8-000 90705-PH8-000 / PIN, DOWEL (12X16)

1 $3.63 $2.62
21 95701-08016-08 95701-08016-08 / BOLT, FLANGE (8X16)

2 $0.98 $0.71
22 95701-10032-08 95701-10032-08 / BOLT, FLANGE (10X32)

2 $1.30 $0.94
23 95701-10050-08 95701-10050-08 / BOLT, FLANGE (10X50)

1 $1.50 $1.08
24 95701-10100-08 95701-10100-08 / BOLT, FLANGE (10X100)

1 $2.40 $1.73
25 95701-10125-08 95701-10125-08 / BOLT, FLANGE (10X125)

1 $2.77 $1.99
