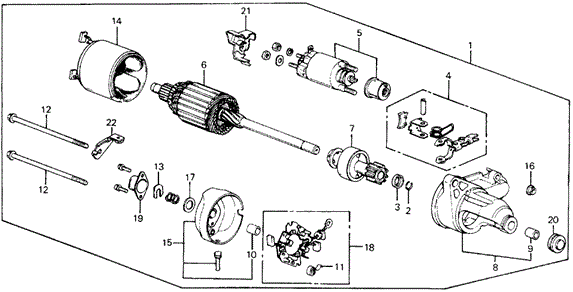

SWITCH ASSY., MAGNETIC in ENGINE/STARTER MOTOR (DENSO) (2) for 1989 Honda CIVIC HATCHBACK

SWITCH ASSY., MAGNETIC in ENGINE/STARTER MOTOR (DENSO) (2) for 1989 Honda CIVIC HATCHBACK #1
13
  • PLATE, LOCK
4
  • LEVER, PINION DRIVE
12
  • BOLT, THROUGH - $4.73
1
  • STARTER MOTOR ASSY. (DFLEA) (DENSO) - $118.37
6
  • ARMATURE - $122.64
  • ARMATURE
16
  • NUT, HEX. - $1.50
22
  • STAY, ENGINE HARNESS - $4.09
2
  • RING, SNAP
20
  • COVER, SHAFT - $2.45
15
  • FRAME, COMMUTATOR END
17
  • RUBBER A, SEAL - $3.19
19
  • CAP, END FRAME - $2.48
14
  • YOKE
5
  • SWITCH ASSY., MAGNETIC - $132.52
21
  • COVER, MAGNETIC SWITCH - $3.78
12
  • BOLT, THROUGH - $4.73
18
  • HOLDER, BRUSH
3
  • COLLAR, CLUTCH STOP - $2.99
8
  • HOUSING, DRIVE SIDE
9
  • BEARING A, STARTER MOTOR
11
  • SPRING, BRUSH - $2.90
10
  • BEARING B, STARTER MOTOR
7
  • PINION (OVERRUNNING CLUTCH)
