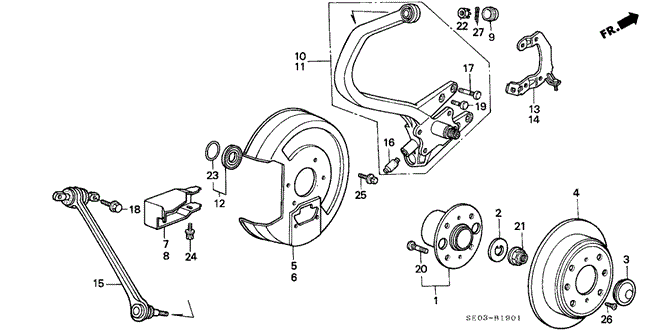

KNUCKLE, R. RR. (DISK) in CHASSIS/REAR KNUCKLE - BRAKE DISK for 1989 Honda ACCORD SEDAN

KNUCKLE, R. RR. (DISK) in CHASSIS/REAR KNUCKLE - BRAKE DISK for 1989 Honda ACCORD SEDAN #1
14
  • BRACKET, L. RR. KNUCKLE (DISK)
19
  • BOLT B, TRAILING ARM (10X42) - $4.01
22
  • NUT, BALL PIN (UPPER) (10MM) - $3.20
3
  • CAP, HUB UNIT - $4.01
16
  • BUSH, RR. SHOCK ABSORBER (LOWER) - $14.09
6
  • SPLASH GUARD, L. RR.
22
  • NUT, BALL PIN (UPPER) (10MM) - $3.20
9
  • CAP, STABILIZER END
26
  • SCREW, FLAT (6X14) - $0.43
2
  • WASHER, HUB UNIT - $8.87
12
  • RING, SPINDLE
2
  • WASHER, HUB UNIT - $8.87
23
  • O-RING (47X1.9) (ARAI) - $1.40
  • O-RING (47X1.9) (NOK) - $1.49
10
  • KNUCKLE, R. RR. (DISK)
24
  • BOLT-WASHER (6X10) - $0.64
13
  • BRACKET, R. RR. KNUCKLE (DISK) - $14.34
4
  • DISK, RR. BRAKE
1
  • BEARING ASSY., HUB UNIT (NTN) - $140.02
26
  • SCREW, FLAT (6X14) - $0.43
17
  • BOLT B, TRAILING ARM (10X55)
21
  • NUT, SPINDLE (22MM) - $1.86
20
  • BOLT, WHEEL (NAGOYA RASHI) - $1.32
9
  • CAP, STABILIZER END
18
  • BOLT, FLANGE (10X20) - $0.90
  • BOLT, FLANGE (10X20) - $0.90
15
  • ARM, RR. (UPPER)
10
  • KNUCKLE, R. RR. (DISK)
11
  • KNUCKLE, L. RR. (DISK)
19
  • BOLT B, TRAILING ARM (10X42) - $4.01
14
  • BRACKET, L. RR. KNUCKLE (DISK)
24
  • BOLT-WASHER (6X10) - $0.64
18
  • BOLT, FLANGE (10X20) - $0.90
  • BOLT, FLANGE (10X20) - $0.90
4
  • DISK, RR. BRAKE
25
  • BOLT-WASHER (6X14) - $0.64
16
  • BUSH, RR. SHOCK ABSORBER (LOWER) - $14.09
25
  • BOLT-WASHER (6X14) - $0.64
20
  • BOLT, WHEEL (NAGOYA RASHI) - $1.32
7
  • PROTECTOR, R. RR. CALIPER
12
  • RING, SPINDLE
11
  • KNUCKLE, L. RR. (DISK)
3
  • CAP, HUB UNIT - $4.01
27
  • PIN, SPLIT (2.0X22) - $0.54
  • PIN, SPLIT (2.0X35) - $0.54
8
  • PROTECTOR, L. RR. CALIPER
5
  • SPLASH GUARD, R. RR.
15
  • ARM, RR. (UPPER)
7
  • PROTECTOR, R. RR. CALIPER
21
  • NUT, SPINDLE (22MM) - $1.86
1
  • BEARING ASSY., HUB UNIT (NTN) - $140.02
17
  • BOLT B, TRAILING ARM (10X55)
23
  • O-RING (47X1.9) (ARAI) - $1.40
  • O-RING (47X1.9) (NOK) - $1.49
27
  • PIN, SPLIT (2.0X22) - $0.54
  • PIN, SPLIT (2.0X35) - $0.54
8
  • PROTECTOR, L. RR. CALIPER
5
  • SPLASH GUARD, R. RR.
6
  • SPLASH GUARD, L. RR.
13
  • BRACKET, R. RR. KNUCKLE (DISK) - $14.34
No. Part # Part # / Description Qty Req. List Price Price
1 42200-SE0-008 42200-SE0-008 / BEARING ASSY., HUB UNIT (NTN)

2 $194.47 $140.02
2 42324-SB2-020 42324-SB2-020 / WASHER, HUB UNIT

2 $12.32 $8.87
3 42326-SFA-000 42326-SFA-000 / CAP, HUB UNIT

2 $5.57 $4.01
4 42510-SE0-010 42510-SE0-010 / DISK, RR. BRAKE

2 - -
5 43253-SE0-933 43253-SE0-933 / SPLASH GUARD, R. RR.

1 - -
6 43254-SE0-933 43254-SE0-933 / SPLASH GUARD, L. RR.

1 - -
7 43255-SE0-931 43255-SE0-931 / PROTECTOR, R. RR. CALIPER

1 - -
8 43256-SE0-931 43256-SE0-931 / PROTECTOR, L. RR. CALIPER

1 - -
9 51251-SB0-010 51251-SB0-010 / CAP, STABILIZER END

2 - -
10 52111-SE5-930 52111-SE5-930 / KNUCKLE, R. RR. (DISK)

1 - -
11 52116-SE5-930 52116-SE5-930 / KNUCKLE, L. RR. (DISK)

1 - -
12 52202-SE0-000 52202-SE0-000 / RING, SPINDLE

2 - -
13 52212-SE0-930 52212-SE0-930 / BRACKET, R. RR. KNUCKLE (DISK)

1 $20.18 $14.34
14 52217-SE0-930 52217-SE0-930 / BRACKET, L. RR. KNUCKLE (DISK)

1 - -
15 52390-SE0-043 52390-SE0-043 / ARM, RR. (UPPER)

2 - -
16 52622-SE0-013 52622-SE0-013 / BUSH, RR. SHOCK ABSORBER (LOWER)

2 $19.57 $14.09
17 90024-SE0-000 90024-SE0-000 / BOLT B, TRAILING ARM (10X55)

4 - -
18 90025-SE0-000 90025-SE0-000 / BOLT, FLANGE (10X20)

4 $1.25 $0.90
18 95701-10020-08 95701-10020-08 / BOLT, FLANGE (10X20)

4 $1.25 $0.90
19 90026-SE0-000 90026-SE0-000 / BOLT B, TRAILING ARM (10X42)

4 $5.56 $4.01
20 90113-SA0-025 90113-SA0-025 / BOLT, WHEEL (NAGOYA RASHI)

8 $1.83 $1.32
21 90305-692-010 90305-692-010 / NUT, SPINDLE (22MM)

2 $2.58 $1.86
22 90321-SE0-000 90321-SE0-000 / NUT, BALL PIN (UPPER) (10MM)

2 $4.45 $3.20
23 91352-KM1-005 91352-KM1-005 / O-RING (47X1.9) (ARAI)

2 $1.95 $1.40
23 91352-KM1-003 91352-KM1-003 / O-RING (47X1.9) (NOK)

2 $2.07 $1.49
24 93402-06010-08 93402-06010-08 / BOLT-WASHER (6X10)

4 $0.88 $0.64
25 93402-06014-08 93402-06014-08 / BOLT-WASHER (6X14)

8 $0.88 $0.64
26 93600-06014-0H 93600-06014-0H / SCREW, FLAT (6X14)

4 $0.60 $0.43
27 94201-20220 94201-20220 / PIN, SPLIT (2.0X22)

2 $0.75 $0.54
27 94201-20350 94201-20350 / PIN, SPLIT (2.0X35)

2 $0.75 $0.54
