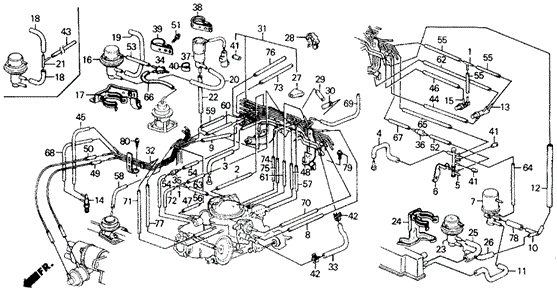

VALVE ASSY., SHOT AIR (DENSO) in ENGINE/FUEL VACUUM TUBING for 1989 Honda ACCORD COUPE

VALVE ASSY., SHOT AIR (DENSO) in ENGINE/FUEL VACUUM TUBING for 1989 Honda ACCORD COUPE #1
50
  • TUBE, NYLON (3.5X295)
74
  • BULK HOSE, VACUUM (4.5X1000) - $8.27
23
  • VALVE ASSY. B, AIR CONTROL
  • VALVE ASSY. B, AIR CONTROL
56
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
11
  • TUBE, INLET SHOT AIR VALVE - $4.44
78
  • BULK HOSE, VACUUM (8X8000)
1
  • JOINT, THREE WAY - $5.48
4
  • TUBE, L. SIDE
2
  • TUBE, SPECIAL - $2.72
20
  • TUBE A, OUTLET AIR CONTROL VALVE - $4.44
29
  • TUBE, SPECIAL (6.5X55)
76
  • BULK HOSE, VACUUM (4.5X1000) - $8.27
55
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
42
  • CLAMP, CANISTER HOSE - $3.89
41
  • CAP, SEALING - $2.12
22
  • TUBE, FREQUENCY SOLENOID VALVEOUTLET
48
  • TUBE,3.5X200 - $3.64
37
  • VALVE ASSY. A, FREQUENCY SOLENOID
28
  • CLAMP - $4.00
71
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
75
  • BULK HOSE, VACUUM (4.5X1000) - $8.27
27
  • GUIDE, SCREW
42
  • CLAMP, CANISTER HOSE - $3.89
64
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
54
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
34
  • JOINT, THREE WAY - $5.45
59
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
79
  • BOLT, FLANGE (6X12) - $0.72
51
  • SCREW-WASHER (5X16) - $0.54
18
  • TUBE A, AIR IN. CONTROL VALVE
  • TUBE A, AIR IN. CONTROL VALVE
25
  • TUBE, AIR CONTROL VALVE B (IN.)
68
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
6
  • STAY, JOINT HOLDER - $2.69
60
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
61
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
41
  • CAP, SEALING - $2.12
52
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
62
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
40
  • RUBBER, FREQUENCY SOLENOID VALVE A - $1.70
15
  • THERMOVALVE (50A)
58
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
14
  • THERMOVALVE, CARBURETOR
44
  • TUBE (3.5X180) (RED)
18
  • TUBE A, AIR IN. CONTROL VALVE
  • TUBE A, AIR IN. CONTROL VALVE
32
  • PIPE ASSY. B, INSTALL - $32.90
17
  • BASE, AIR CONTROL VALVE
24
  • STAY, AIR CONTROL VALVE B - $10.00
7
  • VALVE ASSY., SHOT AIR (DENSO)
67
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
10
  • JOINT, SHOT AIR VALVE - $4.20
1
  • JOINT, THREE WAY - $5.48
26
  • TUBE, AIR CONTROL VALVE B (OUTLET)
16
  • VALVE ASSY. A, AIR CONTROL
55
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
46
  • TUBE,3.5X200 - $3.64
13
  • VALVE ASSY., THERMO WAX SWITCHING
  • VALVE ASSY., THERMO WAX SWITCHING
55
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
53
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
66
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
57
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
36
  • VALVE, CHECK - $21.37
33
  • HOSE, CANISTER VENT (KOKOKU)
  • HOSE, CANISTER VENT (SUMITOMO)
31
  • PIPE ASSY. A, INSTALL
3
  • TUBE, R. SIDE SPECIAL
21
  • JOINT, THREE WAY
30
  • TUBE, SPECIAL (10X50)
77
  • BULK HOSE, VACUUM (4.5X1000) - $8.27
49
  • TUBE, NYLON (3.5X275)
47
  • TUBE,3.5X200 - $3.64
80
  • BOLT, FLANGE (6X12) - $0.72
63
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
9
  • TUBE, VC (2)
70
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
12
  • TUBE, INSTALL PIPE
69
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
72
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
45
  • TUBE (3.5X150) (WHITE) - $2.18
5
  • JOINT, SIX-WAY
73
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
43
  • TUBE (GREEN)
41
  • CAP, SEALING - $2.12
8
  • TUBE, PV (11)
54
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
38
  • CLAMP, FREQUENCY SOLENOID
65
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
No. Part # Part # / Description Qty Req. List Price Price
1 16137-657-670 16137-657-670 / JOINT, THREE WAY

2 $7.62 $5.48
2 17326-PH4-662 17326-PH4-662 / TUBE, SPECIAL

1 $3.83 $2.72
3 17327-PH4-660 17327-PH4-660 / TUBE, R. SIDE SPECIAL

1 - -
4 17328-PH4-660 17328-PH4-660 / TUBE, L. SIDE

1 - -
5 17329-PH4-660 17329-PH4-660 / JOINT, SIX-WAY

1 - -
6 17331-PH2-000 17331-PH2-000 / STAY, JOINT HOLDER

1 $3.78 $2.69
7 17340-PH2-003 17340-PH2-003 / VALVE ASSY., SHOT AIR (DENSO)

1 - -
8 17342-PH4-660 17342-PH4-660 / TUBE, PV (11)

1 - -
9 17343-PH4-660 17343-PH4-660 / TUBE, VC (2)

1 - -
10 17345-PH4-660 17345-PH4-660 / JOINT, SHOT AIR VALVE

1 $5.92 $4.20
11 17346-PH2-000 17346-PH2-000 / TUBE, INLET SHOT AIR VALVE

1 $6.25 $4.44
12 17348-PH4-660 17348-PH4-660 / TUBE, INSTALL PIPE

1 - -
13 17350-PH4-661 17350-PH4-661 / VALVE ASSY., THERMO WAX SWITCHING

1 - -
13 17350-PH4-681 17350-PH4-681 / VALVE ASSY., THERMO WAX SWITCHING

1 - -
14 17355-PH2-013 17355-PH2-013 / THERMOVALVE, CARBURETOR

1 - -
15 17360-PD2-013 17360-PD2-013 / THERMOVALVE (50A)

1 - -
16 17380-PH4-661 17380-PH4-661 / VALVE ASSY. A, AIR CONTROL

1 - -
17 17381-PH4-660 17381-PH4-660 / BASE, AIR CONTROL VALVE

1 - -
18 17382-PH4-A50 17382-PH4-A50 / TUBE A, AIR IN. CONTROL VALVE

2 - -
18 17382-PH4-A51 17382-PH4-A51 / TUBE A, AIR IN. CONTROL VALVE

2 - -
20 17383-PH4-660 17383-PH4-660 / TUBE A, OUTLET AIR CONTROL VALVE

1 $6.25 $4.44
21 17384-PH4-A51 17384-PH4-A51 / JOINT, THREE WAY

1 - -
22 17384-PH4-660 17384-PH4-660 / TUBE, FREQUENCY SOLENOID VALVEOUTLET

1 - -
23 17390-PH4-663 17390-PH4-663 / VALVE ASSY. B, AIR CONTROL

1 - -
23 17390-PH4-683 17390-PH4-683 / VALVE ASSY. B, AIR CONTROL

1 - -
24 17391-PH4-660 17391-PH4-660 / STAY, AIR CONTROL VALVE B

1 $13.88 $10.00
25 17392-PH4-660 17392-PH4-660 / TUBE, AIR CONTROL VALVE B (IN.)

1 - -
26 17393-PH4-660 17393-PH4-660 / TUBE, AIR CONTROL VALVE B (OUTLET)

1 - -
27 17401-PH2-000 17401-PH2-000 / GUIDE, SCREW

1 - -
28 17402-PH2-003 17402-PH2-003 / CLAMP

1 $5.62 $4.00
29 17416-PH4-660 17416-PH4-660 / TUBE, SPECIAL (6.5X55)

1 - -
30 17417-PH4-660 17417-PH4-660 / TUBE, SPECIAL (10X50)

1 - -
31 17430-PH4-A11 17430-PH4-A11 / PIPE ASSY. A, INSTALL

1 - -
32 17440-PH4-660 17440-PH4-660 / PIPE ASSY. B, INSTALL

1 $45.70 $32.90
33 17736-PH2-003 17736-PH2-003 / HOSE, CANISTER VENT (KOKOKU)

1 - -
33 17736-PH2-004 17736-PH2-004 / HOSE, CANISTER VENT (SUMITOMO)

1 - -
34 36010-PE0-004 36010-PE0-004 / JOINT, THREE WAY

1 $7.57 $5.45
36 36145-PM4-004 36145-PM4-004 / VALVE, CHECK

1 $29.68 $21.37
37 36180-PH4-661 36180-PH4-661 / VALVE ASSY. A, FREQUENCY SOLENOID

1 - -
38 36181-PD2-660 36181-PD2-660 / CLAMP, FREQUENCY SOLENOID

1 - -
40 36192-PD2-661 36192-PD2-661 / RUBBER, FREQUENCY SOLENOID VALVE A

1 $2.37 $1.70
41 90634-PA0-000 90634-PA0-000 / CAP, SEALING

1 $2.95 $2.12
42 90682-SA0-671 90682-SA0-671 / CLAMP, CANISTER HOSE

2 $5.40 $3.89
43 91411-PH4-A50 91411-PH4-A50 / TUBE (GREEN)

1 - -
44 91431-PH4-660 91431-PH4-660 / TUBE (3.5X180) (RED)

1 - -
45 91432-PH2-000 91432-PH2-000 / TUBE (3.5X150) (WHITE)

1 $3.07 $2.18
48 91432-PC6-K01 91432-PC6-K01 / TUBE,3.5X200

1 $5.05 $3.64
49 91708-PH2-000 91708-PH2-000 / TUBE, NYLON (3.5X275)

1 - -
50 91709-PH2-000 91709-PH2-000 / TUBE, NYLON (3.5X295)

1 - -
51 93893-05016-08 93893-05016-08 / SCREW-WASHER (5X16)

1 $0.75 $0.54
73 95005-35008-10M 95005-35008-10M / BULK HOSE, VACUUM (3.5X8000)

1 $52.80 $38.02
77 95005-45001-10M 95005-45001-10M / BULK HOSE, VACUUM (4.5X1000)

1 $11.48 $8.27
78 95005-80008-10M 95005-80008-10M / BULK HOSE, VACUUM (8X8000)

1 - -
80 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

2 $1.00 $0.72
