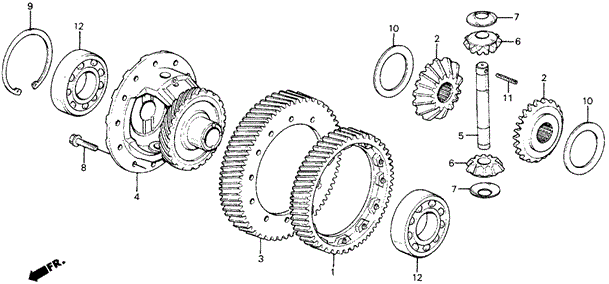

CASE, DIFFERENTIAL in TRANSMISSION - MANUAL/MT DIFFERENTIAL for 1988 Honda CIVIC 5-DOOR

CASE, DIFFERENTIAL in TRANSMISSION - MANUAL/MT DIFFERENTIAL for 1988 Honda CIVIC 5-DOOR #1
12
  • BEARING, RADIAL BALL (6208) - $26.60
7
  • WASHER F, DIFFERENTIAL PINION (0.85MM) - $4.24
  • WASHER C, DIFFERENTIAL PINION (0.9MM) - $4.28
  • WASHER B, DIFFERENTIAL PINION (0.8MM) - $4.28
  • WASHER E, DIFFERENTIAL PINION (0.75MM) - $4.24
  • WASHER D, DIFFERENTIAL PINION (1.0MM) - $4.28
  • WASHER A, DIFFERENTIAL PINION (0.7MM) - $4.28
  • WASHER G, DIFFERENTIAL PINION (0.95MM) - $4.24
8
  • BOLT A, SPECIAL (10MM) - $3.61
7
  • WASHER F, DIFFERENTIAL PINION (0.85MM) - $4.24
  • WASHER C, DIFFERENTIAL PINION (0.9MM) - $4.28
  • WASHER B, DIFFERENTIAL PINION (0.8MM) - $4.28
  • WASHER E, DIFFERENTIAL PINION (0.75MM) - $4.24
  • WASHER D, DIFFERENTIAL PINION (1.0MM) - $4.28
  • WASHER A, DIFFERENTIAL PINION (0.7MM) - $4.28
  • WASHER G, DIFFERENTIAL PINION (0.95MM) - $4.24
9
  • RING 1, SNAP (80X2.5) - $8.20
  • RING 3, SNAP (80X2.7) - $8.20
  • RING 2, SNAP (80X2.6) - $8.20
  • RING 5, SNAP (80X2.9) - $8.20
  • RING 4, SNAP (80X2.8) - $8.20
  • RING 6, SNAP (80X3.0) - $8.34
6
  • GEAR, DIFFERENTIAL PINION - $43.04
2
  • GEAR, DRIVE PINION - $59.94
3
  • GEAR, FINAL DRIVEN
2
  • GEAR, DRIVE PINION - $59.94
4
  • CASE, DIFFERENTIAL
5
  • SHAFT, PINION - $29.05
10
  • WASHER, THRUST (28X50X1.5)
12
  • BEARING, RADIAL BALL (6208) - $26.60
10
  • WASHER, THRUST (28X50X1.5)
11
  • PIN, SPRING (4X28) - $0.86
1
  • GEAR, TRANSFER DRIVE - $122.95
6
  • GEAR, DIFFERENTIAL PINION - $43.04
No. Part # Part # / Description Qty Req. List Price Price
1 29011-PH8-900 29011-PH8-900 / GEAR, TRANSFER DRIVE

1 $170.77 $122.95
2 41221-PC8-040 41221-PC8-040 / GEAR, DRIVE PINION

2 $83.25 $59.94
3 41233-PH8-900 41233-PH8-900 / GEAR, FINAL DRIVEN

1 - -
4 41310-PH8-900 41310-PH8-900 / CASE, DIFFERENTIAL

1 - -
5 41321-PL3-T00 41321-PL3-T00 / SHAFT, PINION

1 $40.35 $29.05
6 41341-PC9-010 41341-PC9-010 / GEAR, DIFFERENTIAL PINION

2 $59.78 $43.04
7 41356-PC8-000 41356-PC8-000 / WASHER F, DIFFERENTIAL PINION (0.85MM)

2 $5.88 $4.24
7 41353-689-000 41353-689-000 / WASHER C, DIFFERENTIAL PINION (0.9MM)

2 $5.95 $4.28
7 41352-689-000 41352-689-000 / WASHER B, DIFFERENTIAL PINION (0.8MM)

2 $5.95 $4.28
7 41355-PC8-000 41355-PC8-000 / WASHER E, DIFFERENTIAL PINION (0.75MM)

2 $5.88 $4.24
7 41354-689-000 41354-689-000 / WASHER D, DIFFERENTIAL PINION (1.0MM)

2 $5.95 $4.28
7 41351-689-000 41351-689-000 / WASHER A, DIFFERENTIAL PINION (0.7MM)

2 $5.95 $4.28
7 41357-PC8-000 41357-PC8-000 / WASHER G, DIFFERENTIAL PINION (0.95MM)

2 $5.88 $4.24
8 90017-PH8-000 90017-PH8-000 / BOLT A, SPECIAL (10MM)

12 $5.02 $3.61
9 90414-689-000 90414-689-000 / RING 1, SNAP (80X2.5)

1 $11.38 $8.20
9 90416-689-000 90416-689-000 / RING 3, SNAP (80X2.7)

1 $11.38 $8.20
9 90415-689-000 90415-689-000 / RING 2, SNAP (80X2.6)

1 $11.38 $8.20
9 90418-689-000 90418-689-000 / RING 5, SNAP (80X2.9)

1 $11.38 $8.20
9 90417-689-000 90417-689-000 / RING 4, SNAP (80X2.8)

1 $11.38 $8.20
9 90419-PH8-000 90419-PH8-000 / RING 6, SNAP (80X3.0)

1 $11.58 $8.34
10 90425-680-900 90425-680-900 / WASHER, THRUST (28X50X1.5)

2 - -
11 94305-40282 94305-40282 / PIN, SPRING (4X28)

1 $1.20 $0.86
12 96100-62083-00 96100-62083-00 / BEARING, RADIAL BALL (6208)

2 $36.95 $26.60
