TRANSMISSION - AUTOMATIC/AT COUNTERSHAFT 2WD for 1988 Honda CIVIC 5-DOOR

Select AT COUNTERSHAFT 2WD Part

1988 Honda CIVIC 5-DOOR

Change vehicle

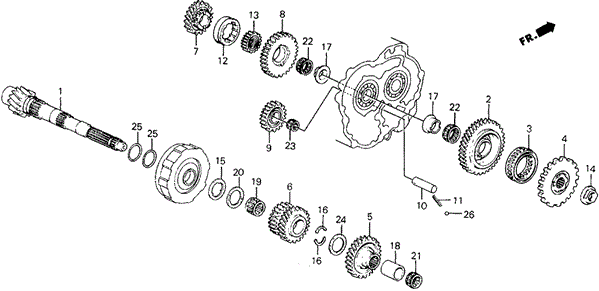

TRANSMISSION - AUTOMATIC/AT COUNTERSHAFT 2WD for 1988 Honda CIVIC 5-DOOR #1
No. Part # Part # / Description List Price Price
1 23220-PL4-000 23220-PL4-000 / COUNTERSHAFT

- -
2 23421-PL4-000 23421-PL4-000 / GEAR, COUNTERSHAFT LOW

- -
3 23423-PA9-003 23423-PA9-003 / CLUTCH ASSY., ONE-WAY

- -
4 23427-PL4-010 23427-PL4-010 / GEAR, PARKING

- -
5 23441-PL4-850 23441-PL4-850 / GEAR, COUNTERSHAFT SECOND

- -
6 23451-PL4-850 23451-PL4-850 / GEAR, COUNTERSHAFT THIRD

- -
7 23471-PL4-850 23471-PL4-850 / GEAR, COUNTERSHAFT FOURTH

$74.83 $53.88
8 23531-PH0-000 23531-PH0-000 / GEAR, COUNTERSHAFT REVERSE

$97.05 $69.88
9 23541-PA9-010 23541-PA9-010 / GEAR, REVERSE IDLE

$69.67 $50.16
10 23542-PH0-020 23542-PH0-020 / SHAFT, REVERSE IDLE GEAR

- -
11 23543-PH0-000 23543-PH0-000 / SPRING A, IDLE GEAR SHAFT

$2.57 $1.85
12 23565-PC9-830 23565-PC9-830 / SELECTOR, REVERSE GEAR

- -
13 23566-P7C-000 23566-P7C-000 / HUB, SELECTOR

$58.90 $42.41
14 90202-PF4-010 90202-PF4-010 / NUT, FLANGE (23MM)

$9.78 $7.04
15 90421-PA9-000 90421-PA9-000 / WASHER, SPLINE (35X50X3.40)

$12.55 $9.04
15 90419-PA9-000 90419-PA9-000 / WASHER, SPLINE (35X50X3.30)

$12.55 $9.04
15 90412-PA9-010 90412-PA9-010 / WASHER, SPLINE (35X50X3.05)

$12.55 $9.04
15 90423-PA9-000 90423-PA9-000 / WASHER, SPLINE (35X50X2.90)

- -
15 90414-PA9-010 90414-PA9-010 / WASHER, SPLINE (35X50X3.15)

$12.55 $9.04
15 90424-PA9-000 90424-PA9-000 / WASHER, SPLINE (35X50X2.95)

- -
15 90415-PA9-010 90415-PA9-010 / WASHER, SPLINE (35X50X3.20)

$13.25 $9.54
15 90418-PA9-000 90418-PA9-000 / WASHER, SPLINE (35X50X3.25)

$12.55 $9.04
15 90413-PA9-010 90413-PA9-010 / WASHER, SPLINE (35X50X3.10)

$12.55 $9.04
15 90411-PA9-010 90411-PA9-010 / WASHER, SPLINE (35X50X3.00)

$12.55 $9.04
15 90420-PA9-000 90420-PA9-000 / WASHER, SPLINE (35X50X3.35)

$12.92 $9.30
16 90431-PC9-000 90431-PC9-000 / COTTER (28MM)

$6.95 $5.00
17 90501-PL4-000 90501-PL4-000 / COLLAR, REVERSE GEAR

$21.13 $15.22
18 90505-PC9-000 90505-PC9-000 / COLLAR, DISTANCE (28X38X39.20)

$29.52 $21.25
18 90511-PC9-000 90511-PC9-000 / COLLAR, DISTANCE (28X38X38.90)

$22.78 $16.40
18 90503-PC9-000 90503-PC9-000 / COLLAR, DISTANCE (28X38X39.00)

$19.88 $14.32
18 90512-PC9-000 90512-PC9-000 / COLLAR, DISTANCE (28X38X38.95)

$22.78 $16.40
18 90508-PC9-000 90508-PC9-000 / COLLAR, DISTANCE (28X38X39.05)

$19.88 $14.32
18 90507-PC9-000 90507-PC9-000 / COLLAR, DISTANCE (28X38X39.30)

$29.52 $21.25
18 90510-PC9-000 90510-PC9-000 / COLLAR, DISTANCE (28X38X39.25)

$29.52 $21.25
18 90509-PC9-000 90509-PC9-000 / COLLAR, DISTANCE (28X38X39.15)

$29.52 $21.25
18 90504-PC9-000 90504-PC9-000 / COLLAR, DISTANCE (28X38X39.10)

$19.88 $14.32
19 91011-PG4-003 91011-PG4-003 / BEARING, NEEDLE (32X38X20) (NTN)

$23.23 $16.73
20 91014-PA9-003 91014-PA9-003 / BEARING, THRUST NEEDLE (35X52X2) (NTN)

$19.73 $14.21
21 91016-PA9-003 91016-PA9-003 / BEARING, NEEDLE (28X33X20) (NTN)

$18.07 $13.01
22 91024-PL4-003 91024-PL4-003 / BEARING, NEEDLE (31X36X14)

$21.10 $15.19
23 91025-PJ2-003 91025-PJ2-003 / BEARING, NEEDLE (14X18X15) (NTN)

$17.58 $12.66
24 91031-PC9-003 91031-PC9-003 / BEARING, THRUST NEEDLE (39X54X2) (NTN)

$19.18 $13.81
25 91307-PA9-003 91307-PA9-003 / O-RING (31.2X1.9) (ARAI)

$2.90 $2.09
26 96211-07000 96211-07000 / BALL, STEEL (#7) (7/32)

$0.87 $0.62
