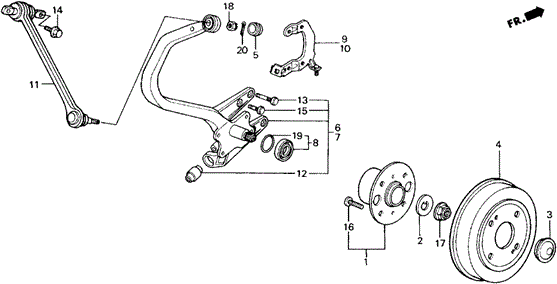

KNUCKLE, L. RR. (DRUM) in CHASSIS/REAR KNUCKLE - BRAKE DRUM (DX, LXI) for 1988 Honda ACCORD COUPE

KNUCKLE, L. RR. (DRUM) in CHASSIS/REAR KNUCKLE - BRAKE DRUM (DX, LXI) for 1988 Honda ACCORD COUPE #1
16
  • BOLT, WHEEL (NAGOYA RASHI) - $1.32
8
  • RING, SPINDLE
17
  • NUT, SPINDLE (22MM) - $1.86
13
  • BOLT B, TRAILING ARM (10X55)
14
  • BOLT, FLANGE (10X20) - $0.90
  • BOLT, FLANGE (10X20) - $0.90
3
  • CAP, HUB UNIT - $4.01
19
  • O-RING (47X1.9) (NOK) - $1.49
  • O-RING (47X1.9) (ARAI) - $1.40
20
  • PIN, SPLIT (2.0X35) - $0.54
12
  • BUSH, RR. SHOCK ABSORBER (LOWER) - $14.09
7
  • KNUCKLE, L. RR. (DRUM)
4
  • DRUM, RR. BRAKE
6
  • KNUCKLE, R. RR. (DRUM) - $89.53
11
  • ARM, RR. (UPPER)
  • ARM, RR. (UPPER)
9
  • BRACKET, R. RR. KNUCKLE (DISK) - $14.34
2
  • WASHER, HUB UNIT - $8.87
5
  • CAP, STABILIZER END
18
  • NUT, BALL PIN (UPPER) (10MM) - $3.20
15
  • BOLT B, TRAILING ARM (10X42) - $4.01
1
  • BEARING ASSY., HUB UNIT (NTN) - $140.02
10
  • BRACKET, L. RR. KNUCKLE (DRUM)
No. Part # Part # / Description Qty Req. List Price Price
1 42200-SE0-008 42200-SE0-008 / BEARING ASSY., HUB UNIT (NTN)

2 $194.47 $140.02
2 42324-SB2-020 42324-SB2-020 / WASHER, HUB UNIT

2 $12.32 $8.87
3 42326-SFA-000 42326-SFA-000 / CAP, HUB UNIT

2 $5.57 $4.01
4 42610-SE0-010 42610-SE0-010 / DRUM, RR. BRAKE

2 - -
5 51251-SB0-010 51251-SB0-010 / CAP, STABILIZER END

2 - -
6 52111-SE0-020 52111-SE0-020 / KNUCKLE, R. RR. (DRUM)

1 $124.35 $89.53
7 52116-SE0-020 52116-SE0-020 / KNUCKLE, L. RR. (DRUM)

1 - -
8 52202-SE0-000 52202-SE0-000 / RING, SPINDLE

2 - -
9 52212-SE0-930 52212-SE0-930 / BRACKET, R. RR. KNUCKLE (DISK)

1 $20.18 $14.34
10 52217-SE0-930 52217-SE0-930 / BRACKET, L. RR. KNUCKLE (DRUM)

1 - -
11 52390-SE0-043 52390-SE0-043 / ARM, RR. (UPPER)

2 - -
11 52390-SE0-043 52390-SE0-043 / ARM, RR. (UPPER)

2 - -
12 52622-SE0-013 52622-SE0-013 / BUSH, RR. SHOCK ABSORBER (LOWER)

2 $19.57 $14.09
13 90024-SE0-000 90024-SE0-000 / BOLT B, TRAILING ARM (10X55)

4 - -
14 90025-SE0-000 90025-SE0-000 / BOLT, FLANGE (10X20)

4 $1.25 $0.90
14 95701-10020-08 95701-10020-08 / BOLT, FLANGE (10X20)

4 $1.25 $0.90
15 90026-SE0-000 90026-SE0-000 / BOLT B, TRAILING ARM (10X42)

4 $5.56 $4.01
16 90113-SA0-025 90113-SA0-025 / BOLT, WHEEL (NAGOYA RASHI)

8 $1.83 $1.32
17 90305-692-010 90305-692-010 / NUT, SPINDLE (22MM)

2 $2.58 $1.86
18 90321-SE0-000 90321-SE0-000 / NUT, BALL PIN (UPPER) (10MM)

2 $4.45 $3.20
19 91352-KM1-003 91352-KM1-003 / O-RING (47X1.9) (NOK)

2 $2.07 $1.49
19 91352-KM1-005 91352-KM1-005 / O-RING (47X1.9) (ARAI)

2 $1.95 $1.40
20 94201-20350 94201-20350 / PIN, SPLIT (2.0X35)

2 $0.75 $0.54
