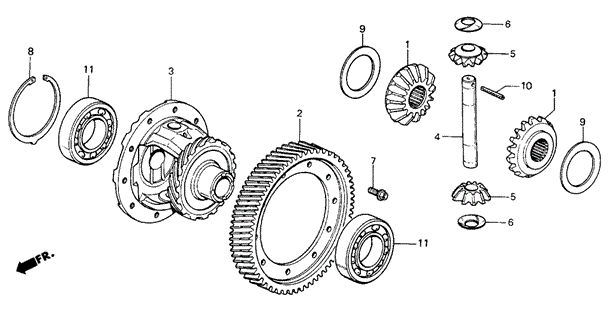

CASE, DIFFERENTIAL in TRANSMISSION - MANUAL/MT DIFFERENTIAL GEAR for 1987 Honda CIVIC SEDAN

CASE, DIFFERENTIAL in TRANSMISSION - MANUAL/MT DIFFERENTIAL GEAR for 1987 Honda CIVIC SEDAN #1
2
  • GEAR, FINAL DRIVEN
8
  • SET-RING (72MM) (4)
  • SET-RING (72MM) (2)
  • SET-RING (72MM) (6)
  • SET-RING (72MM) (3)
  • SET-RING (72MM) (5)
  • SET-RING (72MM) (1)
5
  • GEAR, DIFFERENTIAL PINION - $43.04
6
  • WASHER G, DIFFERENTIAL PINION (0.95MM) - $4.24
  • WASHER B, DIFFERENTIAL PINION (0.8MM) - $4.28
  • WASHER F, DIFFERENTIAL PINION (0.85MM) - $4.24
  • WASHER D, DIFFERENTIAL PINION (1.0MM) - $4.28
  • WASHER C, DIFFERENTIAL PINION (0.9MM) - $4.28
  • WASHER A, DIFFERENTIAL PINION (0.7MM) - $4.28
  • WASHER E, DIFFERENTIAL PINION (0.75MM) - $4.24
7
  • BOLT, FLANGE (10MM) - $3.73
6
  • WASHER G, DIFFERENTIAL PINION (0.95MM) - $4.24
  • WASHER B, DIFFERENTIAL PINION (0.8MM) - $4.28
  • WASHER F, DIFFERENTIAL PINION (0.85MM) - $4.24
  • WASHER D, DIFFERENTIAL PINION (1.0MM) - $4.28
  • WASHER C, DIFFERENTIAL PINION (0.9MM) - $4.28
  • WASHER A, DIFFERENTIAL PINION (0.7MM) - $4.28
  • WASHER E, DIFFERENTIAL PINION (0.75MM) - $4.24
5
  • GEAR, DIFFERENTIAL PINION - $43.04
11
  • BEARING, BALL C (6207) (KOYO) - $23.92
3
  • CASE, DIFFERENTIAL
1
  • GEAR, DRIVE PINION - $59.94
4
  • SHAFT, PINION - $29.05
9
  • WASHER, THRUST (26.3X50X1.5)
11
  • BEARING, BALL C (6207) (KOYO) - $23.92
10
  • PIN, SPRING (4X28) - $0.86
1
  • GEAR, DRIVE PINION - $59.94
9
  • WASHER, THRUST (26.3X50X1.5)
No. Part # Part # / Description Qty Req. List Price Price
1 41221-PC8-913 41221-PC8-913 / GEAR, DRIVE PINION

2 $83.25 $59.94
2 41233-PE6-E00 41233-PE6-E00 / GEAR, FINAL DRIVEN

1 - -
3 41310-PE6-900 41310-PE6-900 / CASE, DIFFERENTIAL

1 - -
4 41321-PL3-T00 41321-PL3-T00 / SHAFT, PINION

1 $40.35 $29.05
5 41341-PC9-010 41341-PC9-010 / GEAR, DIFFERENTIAL PINION

2 $59.78 $43.04
6 41357-PC8-000 41357-PC8-000 / WASHER G, DIFFERENTIAL PINION (0.95MM)

2 $5.88 $4.24
6 41352-689-000 41352-689-000 / WASHER B, DIFFERENTIAL PINION (0.8MM)

2 $5.95 $4.28
6 41356-PC8-000 41356-PC8-000 / WASHER F, DIFFERENTIAL PINION (0.85MM)

2 $5.88 $4.24
6 41354-689-000 41354-689-000 / WASHER D, DIFFERENTIAL PINION (1.0MM)

2 $5.95 $4.28
6 41353-689-000 41353-689-000 / WASHER C, DIFFERENTIAL PINION (0.9MM)

2 $5.95 $4.28
6 41351-689-000 41351-689-000 / WASHER A, DIFFERENTIAL PINION (0.7MM)

2 $5.95 $4.28
6 41355-PC8-000 41355-PC8-000 / WASHER E, DIFFERENTIAL PINION (0.75MM)

2 $5.88 $4.24
7 90015-634-010 90015-634-010 / BOLT, FLANGE (10MM)

10 $5.18 $3.73
8 90417-634-000 90417-634-000 / SET-RING (72MM) (4)

0 - -
8 90415-634-000 90415-634-000 / SET-RING (72MM) (2)

0 - -
8 90419-634-000 90419-634-000 / SET-RING (72MM) (6)

0 - -
8 90416-634-000 90416-634-000 / SET-RING (72MM) (3)

0 - -
8 90418-634-000 90418-634-000 / SET-RING (72MM) (5)

0 - -
8 90414-634-000 90414-634-000 / SET-RING (72MM) (1)

0 - -
9 90425-PF0-000 90425-PF0-000 / WASHER, THRUST (26.3X50X1.5)

2 - -
10 94305-40282 94305-40282 / PIN, SPRING (4X28)

1 $1.20 $0.86
11 91005-PE6-014 91005-PE6-014 / BEARING, BALL C (6207) (KOYO)

2 $33.22 $23.92
