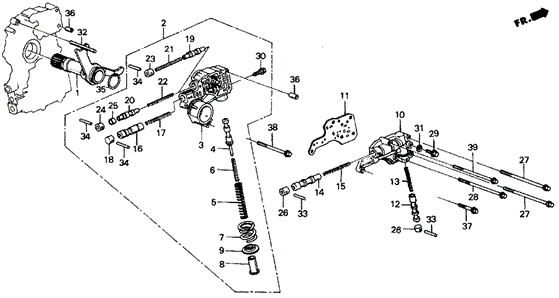

REGULATOR ASSY. in TRANSMISSION - AUTOMATIC/4AT REGULATOR VALVE for 1986 Honda CIVIC 5-DOOR

REGULATOR ASSY. in TRANSMISSION - AUTOMATIC/4AT REGULATOR VALVE for 1986 Honda CIVIC 5-DOOR #1
27
  • BOLT, FLANGE (6X90) - $3.68
12
  • VALVE, LOCK-UP SHIFT
  • VALVE, LOCK-UP SHIFT
3
  • BODY, REGULATOR VALVE
  • BODY, REGULATOR VALVE
16
  • VALVE A, LOCK-UP TIMING - $12.02
21
  • SPRING D, LOCK-UP CONTROL
  • SPRING A, LOCK-UP CONTROL
  • SPRING C, LOCK-UP CONTROL
  • SPRING B, LOCK-UP CONTROL
26
  • CAP, REVERSE CONTROL VALVE - $1.92
1
  • SHAFT ASSY., STATOR
7
  • SPRING, REACTION STATOR - $10.10
20
  • VALVE, LOCK-UP CONTROL
28
  • BOLT, FLANGE (6X85) - $3.43
33
  • ROLLER (3.5X21.8) - $1.20
39
  • BOLT, FLANGE (6X65) - $0.94
29
  • BOLT, SEALING (8MM) - $2.26
34
  • ROLLER (3.5X21.8) - $1.20
  • ROLLER (3.5X19.8) - $2.28
22
  • SPRING B, LOCK-UP CONTROL
  • SPRING A, LOCK-UP CONTROL
19
  • VALVE, LOCK-UP CONTROL
36
  • PIN, DOWEL (8X14) - $0.84
4
  • VALVE, REGULATOR - $24.37
25
  • SLEEVE (13MM) - $2.16
17
  • SPRING A, LOCK-UP TIMING - $1.91
2
  • REGULATOR ASSY.
  • REGULATOR ASSY. - $84.47
15
  • SPRING B, LOCK-UP TIMING
  • SPRING B, LOCK-UP TIMING - $1.91
13
  • SPRING, LOCK-UP SHIFT VALVE - $1.99
34
  • ROLLER (3.5X21.8) - $1.20
  • ROLLER (3.5X19.8) - $2.28
24
  • CAP, LOCK-UP CONTROL VALVE
8
  • CAP, REGULATOR SPRING
35
  • O-RING (27.5X1.7) - $2.28
18
  • CAP A, LOCK-UP TIMING VALVE
32
  • PIN, DOWEL (8X55) - $3.30
5
  • SPRING A, REGULATOR VALVE
33
  • ROLLER (3.5X21.8) - $1.20
30
  • BOLT, STOPPER (6MM) - $2.62
10
  • BODY, LOCK-UP VALVE - $50.41
  • BODY, LOCK-UP VALVE
27
  • BOLT, FLANGE (6X90) - $3.68
38
  • BOLT, FLANGE (6X60) - $0.86
37
  • BOLT, FLANGE (6X25) - $0.71
  • BOLT, FLANGE (6X25) - $0.71
  • BOLT, FLANGE (6X28) - $0.86
36
  • PIN, DOWEL (8X14) - $0.84
9
  • SEAT, REACTION SPRING
23
  • CAP, LOCK-UP CONTROL VALVE
31
  • GASKET (8MM) - $1.20
34
  • ROLLER (3.5X21.8) - $1.20
  • ROLLER (3.5X19.8) - $2.28
6
  • SPRING B, REGULATOR VALVE - $2.93
26
  • CAP, REVERSE CONTROL VALVE - $1.92
11
  • PLATE, LOCK-UP SEPARATING
  • PLATE, LOCK-UP SEPARATING
  • PLATE, LOCK-UP SEPARATING
14
  • VALVE B, LOCK-UP TIMING
  • VALVE B, LOCK-UP TIMING
No. Part # Part # / Description Qty Req. List Price Price
1 25155-PH0-010 25155-PH0-010 / SHAFT ASSY., STATOR

1 - -
2 27200-PH0-680 27200-PH0-680 / REGULATOR ASSY.

1 - -
2 27200-PH0-690 27200-PH0-690 / REGULATOR ASSY.

1 $117.32 $84.47
3 27211-PH0-690 27211-PH0-690 / BODY, REGULATOR VALVE

1 - -
3 27211-PH0-680 27211-PH0-680 / BODY, REGULATOR VALVE

1 - -
4 27221-PC9-000 27221-PC9-000 / VALVE, REGULATOR

1 $33.85 $24.37
5 27231-PC9-911 27231-PC9-911 / SPRING A, REGULATOR VALVE

1 - -
6 27232-PF4-000 27232-PF4-000 / SPRING B, REGULATOR VALVE

1 $4.07 $2.93
7 27233-PA9-000 27233-PA9-000 / SPRING, REACTION STATOR

1 $14.03 $10.10
8 27246-PA9-000 27246-PA9-000 / CAP, REGULATOR SPRING

1 - -
9 27247-PA9-000 27247-PA9-000 / SEAT, REACTION SPRING

1 - -
10 27610-PF4-960 27610-PF4-960 / BODY, LOCK-UP VALVE

1 $70.02 $50.41
10 27610-PF4-020 27610-PF4-020 / BODY, LOCK-UP VALVE

1 - -
11 27612-PF4-961 27612-PF4-961 / PLATE, LOCK-UP SEPARATING

1 - -
11 27612-PF4-030 27612-PF4-030 / PLATE, LOCK-UP SEPARATING

1 - -
11 27612-PF4-030 27612-PF4-030 / PLATE, LOCK-UP SEPARATING

1 - -
12 27621-PF4-000 27621-PF4-000 / VALVE, LOCK-UP SHIFT

1 - -
12 27621-PF4-960 27621-PF4-960 / VALVE, LOCK-UP SHIFT

1 - -
13 27623-PF4-000 27623-PF4-000 / SPRING, LOCK-UP SHIFT VALVE

1 $2.77 $1.99
14 27626-PF4-961 27626-PF4-961 / VALVE B, LOCK-UP TIMING

1 - -
14 27626-PF4-030 27626-PF4-030 / VALVE B, LOCK-UP TIMING

1 - -
15 27627-PH0-680 27627-PH0-680 / SPRING B, LOCK-UP TIMING

1 - -
15 27627-PH0-690 27627-PH0-690 / SPRING B, LOCK-UP TIMING

1 $2.65 $1.91
16 27631-PH0-680 27631-PH0-680 / VALVE A, LOCK-UP TIMING

1 $16.69 $12.02
17 27633-PH0-680 27633-PH0-680 / SPRING A, LOCK-UP TIMING

1 $2.65 $1.91
18 27634-PF4-000 27634-PF4-000 / CAP A, LOCK-UP TIMING VALVE

1 - -
19 27641-PF4-020 27641-PF4-020 / VALVE, LOCK-UP CONTROL

1 - -
20 27641-PF4-961 27641-PF4-961 / VALVE, LOCK-UP CONTROL

1 - -
21 27674-PC9-910 27674-PC9-910 / SPRING D, LOCK-UP CONTROL

1 - -
21 27644-PC9-912 27644-PC9-912 / SPRING A, LOCK-UP CONTROL

1 - -
21 27664-PC9-911 27664-PC9-911 / SPRING C, LOCK-UP CONTROL

1 - -
21 27654-PC9-911 27654-PC9-911 / SPRING B, LOCK-UP CONTROL

1 - -
22 27654-PF4-962 27654-PF4-962 / SPRING B, LOCK-UP CONTROL

1 - -
22 27644-PF4-962 27644-PF4-962 / SPRING A, LOCK-UP CONTROL

1 - -
23 27645-PF4-000 27645-PF4-000 / CAP, LOCK-UP CONTROL VALVE

1 - -
24 27645-PF4-961 27645-PF4-961 / CAP, LOCK-UP CONTROL VALVE

1 - -
25 27646-PF4-961 27646-PF4-961 / SLEEVE (13MM)

1 $3.00 $2.16
26 27728-PF4-000 27728-PF4-000 / CAP, REVERSE CONTROL VALVE

2 $2.67 $1.92
27 90004-PC9-000 90004-PC9-000 / BOLT, FLANGE (6X90)

2 $5.12 $3.68
28 90016-PF4-000 90016-PF4-000 / BOLT, FLANGE (6X85)

1 $4.77 $3.43
29 90024-612-000 90024-612-000 / BOLT, SEALING (8MM)

1 $3.13 $2.26
30 90089-PC9-000 90089-PC9-000 / BOLT, STOPPER (6MM)

1 $3.63 $2.62
31 90471-580-000 90471-580-000 / GASKET (8MM)

1 $1.67 $1.20
32 90701-639-000 90701-639-000 / PIN, DOWEL (8X55)

1 $4.58 $3.30
34 91101-PF4-003 91101-PF4-003 / ROLLER (3.5X21.8)

2 $1.67 $1.20
34 91102-PF4-000 91102-PF4-000 / ROLLER (3.5X19.8)

2 $3.17 $2.28
35 91316-612-000 91316-612-000 / O-RING (27.5X1.7)

1 $3.17 $2.28
36 94301-08140 94301-08140 / PIN, DOWEL (8X14)

2 $1.17 $0.84
37 95700-06025-08 95700-06025-08 / BOLT, FLANGE (6X25)

1 $0.98 $0.71
37 95701-06025-08 95701-06025-08 / BOLT, FLANGE (6X25)

1 $0.98 $0.71
37 95701-06028-08 95701-06028-08 / BOLT, FLANGE (6X28)

1 $1.20 $0.86
38 95701-06060-08 95701-06060-08 / BOLT, FLANGE (6X60)

2 $1.20 $0.86
39 95701-06065-08 95701-06065-08 / BOLT, FLANGE (6X65)

1 $1.30 $0.94
