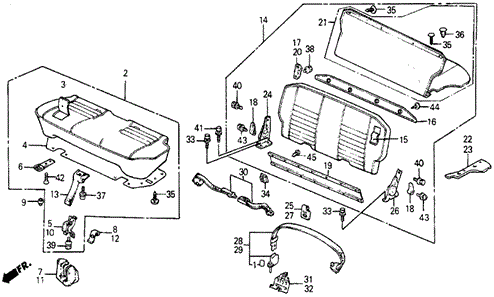

SEAT-BACK ASSY., RR. *B47L* (SILKY BLUE) in INTERIOR / BUMPER/REAR SEAT - SEAT BELT (WAGOVAN) for 1986 Honda CIVIC 5-DOOR

SEAT-BACK ASSY., RR. *B47L* (SILKY BLUE) in INTERIOR / BUMPER/REAR SEAT - SEAT BELT (WAGOVAN) for 1986 Honda CIVIC 5-DOOR #1
24
  • ADJUSTER, R. RECLINING *NH1L* (BLACK)
2
  • CUSHION ASSY., RR. SEAT *B47L* (SILKY BLUE)
43
  • SCREW-WASHER (4X8) - $0.55
15
  • COVER, RR. SEAT-BACK TRIM *B47L* (SILKY BLUE)
20
  • PLATE, L. RR. HOLDER BACK - $10.66
38
  • BOLT-WASHER (6X16) - $0.64
3
  • COVER, RR. SEAT CUSHION TRIM *B47L* (SILKY BLUE)
  • COVER, RR. SEAT CUSHION TRIM *B47L* (SILKY BLUE)
6
  • PLATE, CUSHION HOLDER - $6.37
39
  • BOLT-WASHER (8X20)
35
  • CLIP, MAT (5MM) *NH89L* (PALMY GRAY) - $2.66
  • CLIP, MAT (5MM) *NH167L* (GRAPHITE BLACK) - $2.66
18
  • LEVER, RR. RECLINING *NH1L* (BLACK) - $7.46
33
  • BOLT-WASHER (7/16X25) - $4.31
44
  • SCREW, TAPPING (4x16)
32
  • BRACKET, L. RR. SEAT BELT - $12.56
28
  • SEAT BELT ASSY., R. RR. *B49L* (FAIR BLUE) - $142.88
  • SEAT BELT ASSY., R. RR. *B49L*(NIPPON SEIKO) (FAIR BLUE)
4
  • MAT, RR. SEAT CUSHION *B47L* (SILKY BLUE)
42
  • SCREW, FLAT (5X16)
30
  • SEAT BELT ASSY., RR. CENTER *B49L* (FAIR BLUE)
11
  • COVER, L. RR. HINGE *NH1L* (BLACK) - $14.75
27
  • HOOK, L. CUSHION LOCK - $4.81
17
  • PLATE, R. RR. HOLDER BACK - $10.66
25
  • HOOK, R. CUSHION LOCK - $4.81
31
  • BRACKET, R. RR. SEAT BELT - $12.56
13
  • LOCK, RR. SEAT CUSHION *B47L* (SILKY BLUE)
29
  • SEAT BELT SET, L. RR. *B49L* (FAIR BLUE) - $142.88
1
  • CAP, BOLT *B49L* (NIPPON SEIKO) (FAIR BLUE)
8
  • CAP, R. HINGE COVER *NH1L* (BLACK) - $5.64
36
  • CLIP, MAT (7MM)
12
  • CAP, L. HINGE COVER *NH1L* (BLACK) - $5.64
18
  • LEVER, RR. RECLINING *NH1L* (BLACK) - $7.46
37
  • BOLT-WASHER (6X12) - $0.64
21
  • FLOOR MAT, TRUNK *B47L* (SILKY BLUE)
40
  • BOLT-WASHER (10X16) - $0.86
23
  • INSULATOR, L. TRUNK FLOOR
22
  • INSULATOR, R. TRUNK FLOOR
5
  • HINGE, R. RR. SEAT - $25.48
16
  • PROTECTOR, RR. SEAT - $23.62
33
  • BOLT-WASHER (7/16X25) - $4.31
10
  • HINGE, L. RR. SEAT - $25.48
35
  • CLIP, MAT (5MM) *NH89L* (PALMY GRAY) - $2.66
  • CLIP, MAT (5MM) *NH167L* (GRAPHITE BLACK) - $2.66
7
  • COVER, R. RR. HINGE *NH1L* (BLACK) - $14.75
26
  • ADJUSTER, L. RECLINING *NH1L* (BLACK)
35
  • CLIP, MAT (5MM) *NH89L* (PALMY GRAY) - $2.66
  • CLIP, MAT (5MM) *NH167L* (GRAPHITE BLACK) - $2.66
9
  • RUBBER, RR. SEAT CUSHION - $2.47
40
  • BOLT-WASHER (10X16) - $0.86
43
  • SCREW-WASHER (4X8) - $0.55
14
  • SEAT-BACK ASSY., RR. *B47L* (SILKY BLUE)
41
  • BOLT-WASHER (10X25) - $0.96
No. Part # Part # / Description Qty Req. List Price Price
1 77636-692-003ZF 77636-692-003ZF / CAP, BOLT *B49L* (NIPPON SEIKO) (FAIR BLUE)

2 - -
2 78110-SB6-682ZB 78110-SB6-682ZB / CUSHION ASSY., RR. SEAT *B47L* (SILKY BLUE)

1 - -
3 78111-SB6-683ZA 78111-SB6-683ZA / COVER, RR. SEAT CUSHION TRIM *B47L* (SILKY BLUE)

1 - -
3 78111-SB6-683ZA 78111-SB6-683ZA / COVER, RR. SEAT CUSHION TRIM *B47L* (SILKY BLUE)

1 - -
4 78112-SB6-682ZD 78112-SB6-682ZD / MAT, RR. SEAT CUSHION *B47L* (SILKY BLUE)

1 - -
5 78112-SB6-901 78112-SB6-901 / HINGE, R. RR. SEAT

1 $35.38 $25.48
6 78114-SB6-911 78114-SB6-911 / PLATE, CUSHION HOLDER

2 $8.85 $6.37
7 78115-SB6-900ZB 78115-SB6-900ZB / COVER, R. RR. HINGE *NH1L* (BLACK)

1 $20.49 $14.75
8 78116-SB6-900ZD 78116-SB6-900ZD / CAP, R. HINGE COVER *NH1L* (BLACK)

1 $7.83 $5.64
9 78119-SB6-960 78119-SB6-960 / RUBBER, RR. SEAT CUSHION

2 $3.43 $2.47
10 78122-SB6-901 78122-SB6-901 / HINGE, L. RR. SEAT

1 $35.38 $25.48
11 78125-SB6-900ZB 78125-SB6-900ZB / COVER, L. RR. HINGE *NH1L* (BLACK)

1 $20.49 $14.75
12 78126-SB6-900ZD 78126-SB6-900ZD / CAP, L. HINGE COVER *NH1L* (BLACK)

1 $7.83 $5.64
13 78127-SB6-681ZD 78127-SB6-681ZD / LOCK, RR. SEAT CUSHION *B47L* (SILKY BLUE)

1 - -
14 78150-SB6-682ZB 78150-SB6-682ZB / SEAT-BACK ASSY., RR. *B47L* (SILKY BLUE)

1 - -
15 78151-SB6-683ZA 78151-SB6-683ZA / COVER, RR. SEAT-BACK TRIM *B47L* (SILKY BLUE)

1 - -
16 78154-SB6-681 78154-SB6-681 / PROTECTOR, RR. SEAT

1 $32.80 $23.62
17 78155-SB6-901 78155-SB6-901 / PLATE, R. RR. HOLDER BACK

1 $14.80 $10.66
18 78158-SB6-901ZB 78158-SB6-901ZB / LEVER, RR. RECLINING *NH1L* (BLACK)

2 $10.37 $7.46
20 78165-SB6-901 78165-SB6-901 / PLATE, L. RR. HOLDER BACK

1 $14.80 $10.66
21 78180-SB6-680ZD 78180-SB6-680ZD / FLOOR MAT, TRUNK *B47L* (SILKY BLUE)

1 - -
22 78190-SB6-000 78190-SB6-000 / INSULATOR, R. TRUNK FLOOR

1 - -
23 78195-SB6-000 78195-SB6-000 / INSULATOR, L. TRUNK FLOOR

1 - -
24 78251-SB6-902ZA 78251-SB6-902ZA / ADJUSTER, R. RECLINING *NH1L* (BLACK)

1 - -
25 78255-SB6-910 78255-SB6-910 / HOOK, R. CUSHION LOCK

1 $6.68 $4.81
26 78451-SB6-902ZA 78451-SB6-902ZA / ADJUSTER, L. RECLINING *NH1L* (BLACK)

1 - -
27 78455-SB6-910 78455-SB6-910 / HOOK, L. CUSHION LOCK

1 $6.68 $4.81
28 786A1-SB6-671ZC 786A1-SB6-671ZC / SEAT BELT ASSY., R. RR. *B49L* (FAIR BLUE)

1 $198.45 $142.88
28 04824-SB6-A20ZD 04824-SB6-A20ZD / SEAT BELT ASSY., R. RR. *B49L*(NIPPON SEIKO) (FAIR BLUE)

1 - -
29 04828-SB6-A20ZD 04828-SB6-A20ZD / SEAT BELT SET, L. RR. *B49L* (FAIR BLUE)

1 $198.45 $142.88
30 04827-SB6-A20ZB 04827-SB6-A20ZB / SEAT BELT ASSY., RR. CENTER *B49L* (FAIR BLUE)

1 - -
31 78691-SB6-671 78691-SB6-671 / BRACKET, R. RR. SEAT BELT

1 $17.45 $12.56
32 78696-SB6-671 78696-SB6-671 / BRACKET, L. RR. SEAT BELT

1 $17.45 $12.56
33 90131-SB6-671 90131-SB6-671 / BOLT-WASHER (7/16X25)

2 $5.98 $4.31
35 90667-SA7-003ZT 90667-SA7-003ZT / CLIP, MAT (5MM) *NH89L* (PALMY GRAY)

20 $3.70 $2.66
35 90667-SA7-003YW 90667-SA7-003YW / CLIP, MAT (5MM) *NH167L* (GRAPHITE BLACK)

20 $3.70 $2.66
36 90667-SB6-901 90667-SB6-901 / CLIP, MAT (7MM)

4 - -
37 93401-06012-00 93401-06012-00 / BOLT-WASHER (6X12)

2 $0.88 $0.64
38 93402-06016-08 93402-06016-08 / BOLT-WASHER (6X16)

4 $0.88 $0.64
39 93492-08016-07 93492-08016-07 / BOLT-WASHER (8X20)

4 - -
40 93402-10016-08 93402-10016-08 / BOLT-WASHER (10X16)

4 $1.20 $0.86
41 93403-10025-07 93403-10025-07 / BOLT-WASHER (10X25)

2 $1.33 $0.96
42 93600-05016-0G 93600-05016-0G / SCREW, FLAT (5X16)

4 - -
43 93893-04008-07 93893-04008-07 / SCREW-WASHER (4X8)

2 $0.77 $0.55
44 93902-14480 93902-14480 / SCREW, TAPPING (4x16)

4 - -
