ARMATURE in ENGINE/STARTER MOTOR (HITACHI) for 1986 Honda CIVIC 5-DOOR

Select ARMATURE Part

1986 Honda CIVIC 5-DOOR

Change vehicle

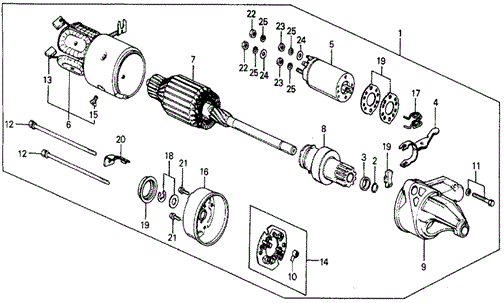

No. Part # Part # / Description List Price Price
1 31200-PE0-005RM 31200-PE0-005RM / STARTER MOTOR ASSY. (0.8KW) (S114-396) (RMD) (HITACHI)1

$164.25 $118.26
2 31201-634-005 31201-634-005 / CLIP, PINION STOPPER

- -
3 31202-634-005 31202-634-005 / STOPPER, PINION

- -
4 31203-PD4-005 31203-PD4-005 / LEVER, GEARSHIFT

$14.43 $10.39
5 31204-PD4-005 31204-PD4-005 / SWITCH, MAGNETIC

- -
6 31205-PD4-005 31205-PD4-005 / COIL, FIELD

- -
7 31206-PE0-005 31206-PE0-005 / ARMATURE

- -
8 31207-PE0-005 31207-PE0-005 / PINION

- -
9 31208-PE0-005 31208-PE0-005 / CASE, GEAR

$70.91 $51.06
10 31212-PD4-005 31212-PD4-005 / SPRING, BRUSH

$3.97 $2.86
11 31213-PD4-005 31213-PD4-005 / SCREW (6X37)

$4.17 $3.00
12 31214-679-005 31214-679-005 / BOLT, THROUGH (HITACHI)

- -
13 31215-679-005 31215-679-005 / BRUSH (POSITIVE)

- -
14 31231-PD4-005 31231-PD4-005 / HOLDER, BRUSH

$38.12 $27.44
15 31237-634-005 31237-634-005 / SCREW, FIELD COIL SETTING

$4.00 $2.88
16 31238-PE0-005 31238-PE0-005 / COVER, RR.

- -
17 31265-PD4-005 31265-PD4-005 / SPRING, TORSION

$4.47 $3.22
18 31271-634-005 31271-634-005 / WASHER KIT, THRUST (HITACHI)

- -
19 31281-PD4-005 31281-PD4-005 / COVER SET, DUST (HITACHI)

$8.88 $6.40
20 31291-PC0-015 31291-PC0-015 / STAY, ENGINE WIRE HARNESS

- -
21 93892-04012-08 93892-04012-08 / SCREW-WASHER (4X12)

$0.37 $0.26
22 94001-08000-0S 94001-08000-0S / NUT, HEX. (8MM)

$0.60 $0.43
23 94002-08000-0S 94002-08000-0S / NUT, HEX. (8MM)

$0.70 $0.50
24 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

$1.10 $0.79
25 94111-08800 94111-08800 / WASHER, SPRING (8MM)

$0.53 $0.38
1This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
