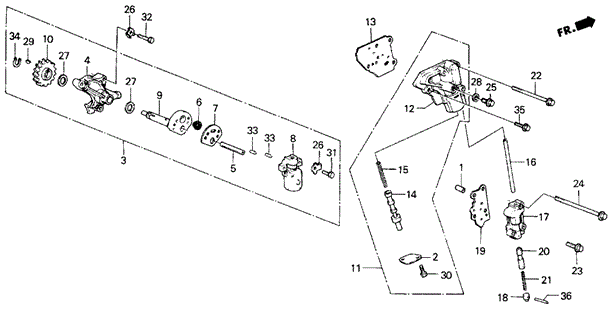

GOVERNOR ASSY. in TRANSMISSION - AUTOMATIC/AT GOVERNOR ('84-'85) for 1985 Honda CIVIC HATCHBACK

GOVERNOR ASSY. in TRANSMISSION - AUTOMATIC/AT GOVERNOR ('84-'85) for 1985 Honda CIVIC HATCHBACK #1
3
  • GOVERNOR ASSY.
34
  • CIRCLIP, OUTER (14MM) - $0.44
6
  • FILTER, GOVERNOR - $5.50
5
  • PIPE (5X65) - $3.38
29
  • KEY, WOODRUFF (3MM) - $1.96
33
  • PIN, DOWEL (5X8) - $0.80
28
  • GASKET (8MM) - $1.20
36
  • ROLLER (3X17.8) - $0.61
17
  • BODY, CLUTCH PRESSURE CONTROL VALVE
2
  • COVER, SHIFT VALVE - $3.92
1
  • PIPE, JOINT (8X29.5) - $2.52
8
  • BODY ASSY., GOVERNOR - $59.51
26
  • WASHER, LOCK (6MM) - $1.88
21
  • SPRING A, CLUTCH PRESSURE CONTROL VALVE (5.6-5.7) - $2.90
  • SPRING B, CLUTCH PRESSURE CONTROL VALVE (5.5-5.6) - $2.90
19
  • PLATE, CLUTCH PRESSURE CONTROLSEPARATING
33
  • PIN, DOWEL (5X8) - $0.80
32
  • BOLT, HEX. (6X30) - $0.50
31
  • BOLT, HEX. (6X18) - $0.60
22
  • BOLT, FLANGE (6X96) - $3.73
27
  • WASHER, THRUST (14MM) - $2.53
  • WASHER, THRUST (14MM)
12
  • BODY, LOCK-UP VALVE
25
  • BOLT, SEALING (8MM) - $2.26
24
  • BOLT, FLANGE (6X108)
20
  • VALVE, CLUTCH PRESSURE CONTROL - $15.26
10
  • GEAR, GOVERNOR
35
  • BOLT, FLANGE (6X20) - $0.16
30
  • BOLT, HEX. (5X12) - $0.40
23
  • BOLT, FLANGE (6X30) - $0.86
18
  • CAP, CLUTCH PRESSURE CONTROL VALVE - $1.97
26
  • WASHER, LOCK (6MM) - $1.88
27
  • WASHER, THRUST (14MM) - $2.53
  • WASHER, THRUST (14MM)
16
  • PIPE (6X119) - $5.89
14
  • VALVE, LOCK-UP SHIFT - $23.72
13
  • PLATE, LOCK-UP SEPARATING
7
  • PLATE, GOVERNOR - $3.72
4
  • HOLDER, GOVERNOR - $23.80
9
  • SHAFT, GOVERNOR
15
  • SPRING, LOCK-UP SHIFT VALVE
11
  • BODY ASSY., LOCK-UP VALVE
No. Part # Part # / Description Qty Req. List Price Price
1 22745-PC9-810 22745-PC9-810 / PIPE, JOINT (8X29.5)

1 $3.50 $2.52
2 27122-PC9-000 27122-PC9-000 / COVER, SHIFT VALVE

1 $5.45 $3.92
3 27300-PF0-904 27300-PF0-904 / GOVERNOR ASSY.

1 - -
4 27310-680-901 27310-680-901 / HOLDER, GOVERNOR

1 $33.05 $23.80
5 27312-PA9-000 27312-PA9-000 / PIPE (5X65)

1 $4.70 $3.38
6 27313-PC9-003 27313-PC9-003 / FILTER, GOVERNOR

1 $7.63 $5.50
7 27314-PC9-000 27314-PC9-000 / PLATE, GOVERNOR

1 $5.17 $3.72
8 27315-PC9-030 27315-PC9-030 / BODY ASSY., GOVERNOR

1 $82.65 $59.51
9 27340-PF0-305 27340-PF0-305 / SHAFT, GOVERNOR

1 - -
10 27342-PA9-670 27342-PA9-670 / GEAR, GOVERNOR

1 - -
11 27600-PF0-020 27600-PF0-020 / BODY ASSY., LOCK-UP VALVE

1 - -
12 27611-PF0-010 27611-PF0-010 / BODY, LOCK-UP VALVE

1 - -
13 27612-PF0-010 27612-PF0-010 / PLATE, LOCK-UP SEPARATING

1 - -
14 27621-PF0-020 27621-PF0-020 / VALVE, LOCK-UP SHIFT

1 $32.95 $23.72
15 27623-PF0-020 27623-PF0-020 / SPRING, LOCK-UP SHIFT VALVE

1 - -
16 27648-PF0-000 27648-PF0-000 / PIPE (6X119)

1 $8.18 $5.89
17 27652-PF0-010 27652-PF0-010 / BODY, CLUTCH PRESSURE CONTROL VALVE

1 - -
18 27653-PC9-950 27653-PC9-950 / CAP, CLUTCH PRESSURE CONTROL VALVE

1 $2.74 $1.97
19 27654-PF0-010 27654-PF0-010 / PLATE, CLUTCH PRESSURE CONTROLSEPARATING

1 - -
20 27655-PC9-950 27655-PC9-950 / VALVE, CLUTCH PRESSURE CONTROL

1 $21.20 $15.26
21 27656-PC9-950 27656-PC9-950 / SPRING A, CLUTCH PRESSURE CONTROL VALVE (5.6-5.7)

1 $4.03 $2.90
21 27657-PC9-950 27657-PC9-950 / SPRING B, CLUTCH PRESSURE CONTROL VALVE (5.5-5.6)

1 $4.03 $2.90
22 90003-PC9-000 90003-PC9-000 / BOLT, FLANGE (6X96)

3 $5.18 $3.73
23 95701-06030-08 95701-06030-08 / BOLT, FLANGE (6X30)

1 $1.20 $0.86
24 90011-PF0-000 90011-PF0-000 / BOLT, FLANGE (6X108)

2 - -
25 90024-612-000 90024-612-000 / BOLT, SEALING (8MM)

1 $3.13 $2.26
26 90433-639-000 90433-639-000 / WASHER, LOCK (6MM)

5 $2.62 $1.88
27 90451-PC9-000 90451-PC9-000 / WASHER, THRUST (14MM)

2 $3.52 $2.53
27 90451-035-900 90451-035-900 / WASHER, THRUST (14MM)

2 - -
28 90471-580-000 90471-580-000 / GASKET (8MM)

1 $1.67 $1.20
29 90741-PA9-000 90741-PA9-000 / KEY, WOODRUFF (3MM)

1 $2.72 $1.96
30 92101-05012-0G 92101-05012-0G / BOLT, HEX. (5X12)

2 $0.55 $0.40
31 92101-06018-0A 92101-06018-0A / BOLT, HEX. (6X18)

2 $0.83 $0.60
32 92201-06030-0H 92201-06030-0H / BOLT, HEX. (6X30)

3 $0.69 $0.50
33 94303-05080 94303-05080 / PIN, DOWEL (5X8)

2 $1.12 $0.80
34 94510-14000 94510-14000 / CIRCLIP, OUTER (14MM)

1 $0.62 $0.44
35 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

1 $0.22 $0.16
36 96220-30178 96220-30178 / ROLLER (3X17.8)

1 $0.85 $0.61
