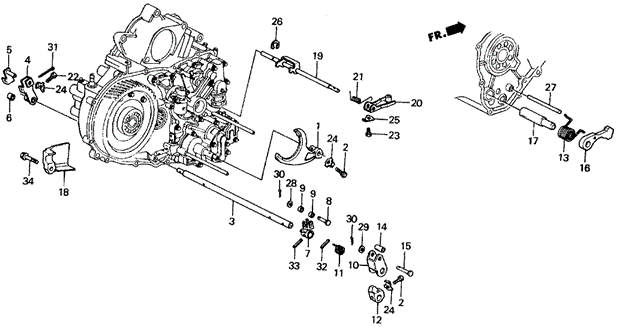

TRANSMISSION - AUTOMATIC/AT SHIFT LEVER SHAFT ('84-'85) for 1985 Honda CIVIC HATCHBACK

Select AT SHIFT LEVER SHAFT ('84-'85) Part

1985 Honda CIVIC HATCHBACK

Change vehicle

No. Part # Part # / Description List Price Price
1 24111-PA9-010 24111-PA9-010 / FORK, REVERSE SHIFT

- -
2 24282-634-000 24282-634-000 / BOLT, SHAFT FORK SETTING

$2.95 $2.12
3 24411-PA9-300 24411-PA9-300 / SHAFT, CONTROL

- -
4 24412-PC9-000 24412-PC9-000 / LEVER, CONTROL

- -
5 24414-PA9-010 24414-PA9-010 / PIN, CONTROL

$5.20 $3.74
6 24415-PA9-000 24415-PA9-000 / ROLLER, CONTROL LEVER

$5.78 $4.16
7 24421-PA9-300 24421-PA9-300 / LEVER, MANUAL VALVE

$27.17 $19.31
8 24423-PA9-000 24423-PA9-000 / PIN, MANUAL VALVE

- -
9 24425-639-000 24425-639-000 / ROLLER, MANUAL VALVE

- -
10 24532-PN6-003 24532-PN6-003 / LEVER, PARKING BRAKE

$18.00 $12.96
11 24535-PA9-010 24535-PA9-010 / SPRING, PARKING BRAKE

- -
12 24537-PA9-003 24537-PA9-003 / STOPPER, PARKING BRAKE (1)

$14.73 $10.61
13 24552-PA9-000 24552-PA9-000 / SPRING, PARKING BRAKE PAWL

- -
14 24553-612-000 24553-612-000 / ROLLER, PARKING BRAKE

- -
15 24555-PN6-000 24555-PN6-000 / PIN, ROLLER (6MM)

$6.23 $4.49
16 24561-PA9-030 24561-PA9-030 / PAWL, PARKING BRAKE

- -
17 24562-PA9-000 24562-PA9-000 / SHAFT, PARKING BRAKE

$16.18 $11.65
18 24901-PF0-910 24901-PF0-910 / HOLDER, CONTROL CABLE

- -
19 27490-PC9-000 27490-PC9-000 / SHAFT, THROTTLE VALVE

- -
20 27494-PF0-000 27494-PF0-000 / LEVER, THROTTLE CONTROL

- -
21 27495-PA9-000 27495-PA9-000 / SPRING, THROTTLE LEVER

- -
22 90001-PA9-000 90001-PA9-000 / BOLT, HEX. (6MM)

$4.12 $2.96
23 90010-P24-J00 90010-P24-J00 / BOLT, SPECIAL (5X15)

$2.63 $1.90
24 90433-639-000 90433-639-000 / WASHER, LOCK (6MM)

$2.72 $1.96
25 90436-PA9-000 90436-PA9-000 / WASHER, LOCK (5MM)

$3.43 $2.47
26 90607-081-000 90607-081-000 / CIRCLIP (7MM)

$2.83 $2.04
27 90701-639-000 90701-639-000 / PIN, DOWEL (8X55)

$4.77 $3.43
28 94101-05800 94101-05800 / WASHER, PLAIN (5MM)

$0.55 $0.40
29 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

$0.37 $0.26
30 94201-16120 94201-16120 / PIN, SPLIT (1.6X12)

$0.48 $0.35
31 94201-20350 94201-20350 / PIN, SPLIT (2.0X35)

$0.78 $0.56
32 94305-40162 94305-40162 / PIN, SPRING (4X16)

$1.17 $0.84
33 94305-50182 94305-50182 / PIN, SPRING (5X18)

$1.17 $0.84
34 95701-08035-08 95701-08035-08 / BOLT, FLANGE (8X35)

$0.88 $0.64
