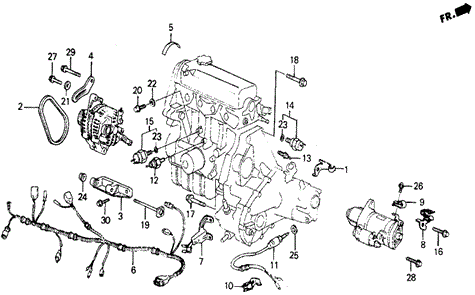

SUB-WIRE, ENGINE in ENGINE/ENGINE SUB CORD - SENSOR for 1984 Honda CIVIC 5-DOOR

SUB-WIRE, ENGINE in ENGINE/ENGINE SUB CORD - SENSOR for 1984 Honda CIVIC 5-DOOR #1
3
  • BRACKET, ALTERNATOR
  • BRACKET, ALTERNATOR
24
  • NUT, FLANGE (10MM) - $0.76
10
  • CLAMP, BACK LIGHT HARNESS - $4.43
26
  • BOLT, FLANGE (6X10) - $0.62
  • BOLT, FLANGE (6X10) - $0.62
5
  • PLATE, CAUTION
  • PLATE, CAUTION
19
  • BOLT, ALTERNATOR - $4.52
30
  • BOLT, FLANGE (10X32) - $0.94
16
  • BOLT, FLANGE (10X45) - $3.20
6
  • SUB-WIRE, ENGINE
28
  • BOLT, FLANGE (10X35) - $0.94
1
  • CLAMP, TUBE - $3.58
27
  • BOLT, FLANGE (8X25) - $0.31
8
  • CLAMP C, ENGINE WIRE HARNESS - $3.16
23
  • O-RING (13.5X1.4) - $1.33
29
  • BOLT, FLANGE (10X50) - $1.08
14
  • SWITCH, THERMO (B-60)
13
  • THERMO UNIT (DENSO) - $36.11
17
  • BOLT, FLANGE (12X60) - $3.92
23
  • O-RING (13.5X1.4) - $1.33
4
  • STAY, ALTERNATOR
18
  • BOLT, FLANGE (12X70) - $4.69
21
  • WASHER (23X8.3X3.2) - $2.78
2
  • BELT, ALTERNATOR (BANDO) - $12.11
  • BELT, ALTERNATOR (MITSUBOSHI) - $12.11
  • BELT, A.C.G - $12.11
11
  • SWITCH ASSY., BACK-UP LIGHT
7
  • CLAMP A, ENGINE WIRE HARNESS - $8.46
25
  • WASHER, DRAIN PLUG (14MM) - $0.28
12
  • SWITCH, OIL PRESSURE (TEC) - $16.75
  • SWITCH, OIL PRESSURE (DENSO) - $16.75
15
  • SWITCH, THERMO (B-75)
9
  • CLAMP E, ENGINE WIRE HARNESS - $3.84
No. Part # Part # / Description Qty Req. List Price Price
1 16704-PE0-000 16704-PE0-000 / CLAMP, TUBE

1 $4.97 $3.58
2 31110-PE0-003 31110-PE0-003 / BELT, ALTERNATOR (BANDO)

1 $16.82 $12.11
2 31110-PE0-014 31110-PE0-014 / BELT, ALTERNATOR (MITSUBOSHI)

1 $16.82 $12.11
2 31110-PE0-014 31110-PE0-014 / BELT, A.C.G

1 $16.82 $12.11
3 31112-PG6-000 31112-PG6-000 / BRACKET, ALTERNATOR

1 - -
3 31112-PG6-000 31112-PG6-000 / BRACKET, ALTERNATOR

1 - -
4 31113-PE0-000 31113-PE0-000 / STAY, ALTERNATOR

1 - -
5 31117-PE0-662 31117-PE0-662 / PLATE, CAUTION

1 - -
5 31117-PE0-662 31117-PE0-662 / PLATE, CAUTION

1 - -
6 32110-SB2-662 32110-SB2-662 / SUB-WIRE, ENGINE

1 - -
7 32741-PE0-000 32741-PE0-000 / CLAMP A, ENGINE WIRE HARNESS

1 $11.75 $8.46
8 32744-PE0-000 32744-PE0-000 / CLAMP C, ENGINE WIRE HARNESS

1 $4.39 $3.16
9 32745-PC0-000 32745-PC0-000 / CLAMP E, ENGINE WIRE HARNESS

1 $5.34 $3.84
10 32745-PE0-000 32745-PE0-000 / CLAMP, BACK LIGHT HARNESS

1 $6.15 $4.43
11 35600-PE0-013 35600-PE0-013 / SWITCH ASSY., BACK-UP LIGHT

1 - -
12 37240-PT0-014 37240-PT0-014 / SWITCH, OIL PRESSURE (TEC)

1 $23.27 $16.75
12 37240-PT0-014 37240-PT0-014 / SWITCH, OIL PRESSURE (DENSO)

1 $23.27 $16.75
13 37750-PC1-004 37750-PC1-004 / THERMO UNIT (DENSO)

1 $50.15 $36.11
14 37763-PB2-003 37763-PB2-003 / SWITCH, THERMO (B-60)

1 - -
15 37780-PA6-003 37780-PA6-003 / SWITCH, THERMO (B-75)

1 - -
16 90016-PE0-000 90016-PE0-000 / BOLT, FLANGE (10X45)

1 $4.45 $3.20
17 90050-PE0-000 90050-PE0-000 / BOLT, FLANGE (12X60)

3 $5.45 $3.92
18 90051-PE0-000 90051-PE0-000 / BOLT, FLANGE (12X70)

1 $6.52 $4.69
19 90057-PG7-003 90057-PG7-003 / BOLT, ALTERNATOR

1 $6.28 $4.52
21 90430-657-000 90430-657-000 / WASHER (23X8.3X3.2)

1 $3.87 $2.78
23 91307-PH7-660 91307-PH7-660 / O-RING (13.5X1.4)

2 $1.85 $1.33
24 94050-10080 94050-10080 / NUT, FLANGE (10MM)

1 $1.05 $0.76
25 94109-14000 94109-14000 / WASHER, DRAIN PLUG (14MM)

1 $0.38 $0.28
26 95700-06010-08 95700-06010-08 / BOLT, FLANGE (6X10)

1 $0.87 $0.62
26 95701-06010-08 95701-06010-08 / BOLT, FLANGE (6X10)

1 $0.87 $0.62
27 95701-08025-08 95701-08025-08 / BOLT, FLANGE (8X25)

1 $0.43 $0.31
28 95701-10035-08 95701-10035-08 / BOLT, FLANGE (10X35)

1 $1.30 $0.94
29 95701-10050-08 95701-10050-08 / BOLT, FLANGE (10X50)

1 $1.50 $1.08
30 95801-10032-08 95801-10032-08 / BOLT, FLANGE (10X32)

2 $1.30 $0.94
