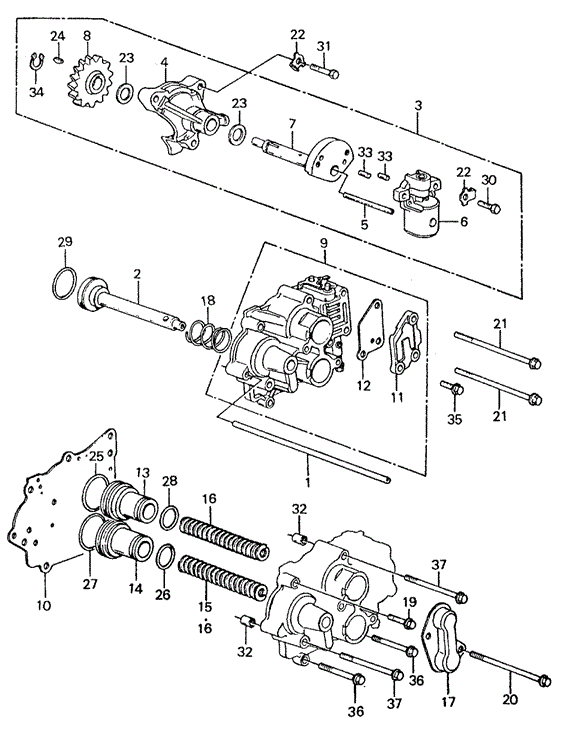

BODY SET, SERVO in TRANSMISSION - HONDAMATIC/AT SERVO BODY - GOVERNOR for 1982 Honda CIVIC SEDAN

BODY SET, SERVO in TRANSMISSION - HONDAMATIC/AT SERVO BODY - GOVERNOR for 1982 Honda CIVIC SEDAN #1
14
  • PISTON, SECOND ACCUMULATOR
  • PISTON, SECOND ACCUMULATOR
9
  • BODY SET, SERVO
  • BODY SET, SERVO
30
  • BOLT, HEX. (6X18) - $0.60
4
  • HOLDER, GOVERNOR - $23.80
37
  • BOLT, FLANGE (6X80) - $1.01
  • BOLT, FLANGE (6X80) - $1.01
34
  • CIRCLIP, OUTER (14MM) - $0.44
25
  • O-RING (35.2X2.4) (NOK) - $2.02
22
  • WASHER, LOCK (6MM) - $1.88
35
  • BOLT, FLANGE (6X20) - $0.16
33
  • PIN, DOWEL (5X8) - $0.80
8
  • GEAR, GOVERNOR
19
  • BOLT, FLANGE (6X30) - $0.86
31
  • BOLT, HEX. (6X30) - $0.50
1
  • PIPE, THIRD CLUTCH
5
  • PIPE (5X65) - $3.38
6
  • BODY ASSY., GOVERNOR - $23.12
21
  • BOLT, HEX. (6X100)
32
  • PIN, DOWEL (8X14) - $0.84
24
  • KEY, WOODRUFF (3MM) - $1.96
37
  • BOLT, FLANGE (6X80) - $1.01
  • BOLT, FLANGE (6X80) - $1.01
29
  • O-RING (31X2.7) (ARAI) - $1.94
28
  • O-RING (23.5X2.1) (ARAI) - $1.51
12
  • PLATE, THROTTLE SEPARATING
32
  • PIN, DOWEL (8X14) - $0.84
36
  • BOLT, FLANGE (6X60) - $0.86
27
  • O-RING (35.2X2.4) (NOK) - $2.02
  • O-RING (33.2X2.4) (NOK) - $2.17
20
  • BOLT, FLANGE (6X116.5)
2
  • SHAFT A, SHIFT FORK
  • SHAFT B, SHIFT FORK
  • SHAFT C, SHIFT FORK
15
  • SPRING, ACCUMULATOR
18
  • SPRING, SERVO RETURN
3
  • GOVERNOR ASSY.
16
  • SPRING, ACCUMULATOR
17
  • COVER, ACCUMULATOR - $11.58
11
  • COVER, THROTTLE VALVE
10
  • PLATE, SERVO SEPARATING
  • PLATE, SERVO SEPARATING
23
  • WASHER, THRUST (14MM)
13
  • PISTON, THIRD ACCUMULATOR
  • PISTON, THIRD ACCUMULATOR
23
  • WASHER, THRUST (14MM)
7
  • SHAFT, GOVERNOR - $15.40
22
  • WASHER, LOCK (6MM) - $1.88
21
  • BOLT, HEX. (6X100)
16
  • SPRING, ACCUMULATOR
36
  • BOLT, FLANGE (6X60) - $0.86
26
  • O-RING (23.5X2.1) (ARAI) - $1.51
  • O-RING (26X2)
33
  • PIN, DOWEL (5X8) - $0.80
No. Part # Part # / Description Qty Req. List Price Price
1 22743-PA9-000 22743-PA9-000 / PIPE, THIRD CLUTCH

1 - -
2 24271-PA9-030 24271-PA9-030 / SHAFT A, SHIFT FORK

1 - -
2 24272-PA9-020 24272-PA9-020 / SHAFT B, SHIFT FORK

1 - -
2 24273-PA9-020 24273-PA9-020 / SHAFT C, SHIFT FORK

1 - -
3 27300-PA9-672 27300-PA9-672 / GOVERNOR ASSY.

1 - -
4 27310-680-901 27310-680-901 / HOLDER, GOVERNOR

1 $33.05 $23.80
5 27312-PA9-000 27312-PA9-000 / PIPE (5X65)

1 $4.70 $3.38
6 27315-PA9-305 27315-PA9-305 / BODY ASSY., GOVERNOR

1 $35.08 $23.12
7 27341-PA9-000 27341-PA9-000 / SHAFT, GOVERNOR

1 $23.33 $15.40
8 27342-PA9-670 27342-PA9-670 / GEAR, GOVERNOR

1 - -
9 27400-PA9-345 27400-PA9-345 / BODY SET, SERVO

1 - -
9 27400-PA9-915 27400-PA9-915 / BODY SET, SERVO

1 - -
10 27412-PA9-020 27412-PA9-020 / PLATE, SERVO SEPARATING

1 - -
10 27412-PA9-010 27412-PA9-010 / PLATE, SERVO SEPARATING

1 - -
11 27413-PA9-000 27413-PA9-000 / COVER, THROTTLE VALVE

1 - -
12 27414-PA9-000 27414-PA9-000 / PLATE, THROTTLE SEPARATING

1 - -
13 27571-PA9-020 27571-PA9-020 / PISTON, THIRD ACCUMULATOR

1 - -
13 27571-PA9-010 27571-PA9-010 / PISTON, THIRD ACCUMULATOR

1 - -
14 27572-PA9-910 27572-PA9-910 / PISTON, SECOND ACCUMULATOR

1 - -
14 27572-PA9-020 27572-PA9-020 / PISTON, SECOND ACCUMULATOR

1 - -
15 27573-PA9-000 27573-PA9-000 / SPRING, ACCUMULATOR

1 - -
16 27574-PA9-010 27574-PA9-010 / SPRING, ACCUMULATOR

2 - -
17 27581-PA9-020 27581-PA9-020 / COVER, ACCUMULATOR

1 $16.08 $11.58
18 27861-PA9-010 27861-PA9-010 / SPRING, SERVO RETURN

1 - -
19 95701-06030-08 95701-06030-08 / BOLT, FLANGE (6X30)

1 $1.20 $0.86
20 90008-PA9-020 90008-PA9-020 / BOLT, FLANGE (6X116.5)

2 - -
21 90009-PA9-000 90009-PA9-000 / BOLT, HEX. (6X100)

2 - -
22 90433-639-000 90433-639-000 / WASHER, LOCK (6MM)

5 $2.62 $1.88
23 90451-035-900 90451-035-900 / WASHER, THRUST (14MM)

2 - -
24 90741-PA9-000 90741-PA9-000 / KEY, WOODRUFF (3MM)

1 $2.72 $1.96
27 91310-PA9-004 91310-PA9-004 / O-RING (35.2X2.4) (NOK)

1 $2.80 $2.02
28 91318-PA9-003 91318-PA9-003 / O-RING (23.5X2.1) (ARAI)

1 $2.10 $1.51
26 91315-612-000 91315-612-000 / O-RING (26X2)

1 - -
27 91317-PA9-003 91317-PA9-003 / O-RING (33.2X2.4) (NOK)

1 $3.02 $2.17
29 91344-580-000 91344-580-000 / O-RING (31X2.7) (ARAI)

1 $2.70 $1.94
30 92101-06018-0A 92101-06018-0A / BOLT, HEX. (6X18)

2 $0.83 $0.60
31 92201-06030-0H 92201-06030-0H / BOLT, HEX. (6X30)

3 $0.69 $0.50
32 94301-08140 94301-08140 / PIN, DOWEL (8X14)

2 $1.17 $0.84
33 94303-05080 94303-05080 / PIN, DOWEL (5X8)

2 $1.12 $0.80
34 94510-14000 94510-14000 / CIRCLIP, OUTER (14MM)

1 $0.62 $0.44
35 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

1 $0.22 $0.16
36 95701-06060-08 95701-06060-08 / BOLT, FLANGE (6X60)

2 $1.20 $0.86
37 95701-06080-08 95701-06080-08 / BOLT, FLANGE (6X80)

2 $1.40 $1.01
37 95701-06080-08 95701-06080-08 / BOLT, FLANGE (6X80)

2 $1.40 $1.01
