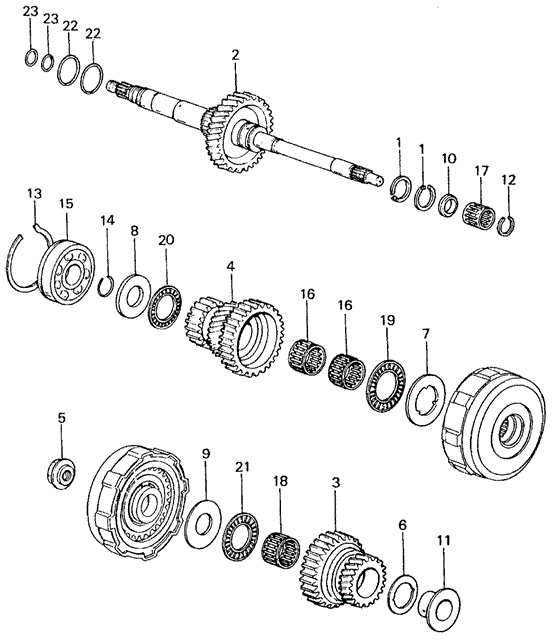

MAINSHAFT in TRANSMISSION - HONDAMATIC/AT MAINSHAFT for 1982 Honda CIVIC SEDAN

MAINSHAFT in TRANSMISSION - HONDAMATIC/AT MAINSHAFT for 1982 Honda CIVIC SEDAN #1
14
  • RING, SNAP (26MM) - $2.33
23
  • O-RING (19.8X1.9) (ARAI) - $2.03
  • O-RING (19.8X1.9) (ARAI) - $2.03
22
  • O-RING (31.2X1.9) (ARAI) - $1.93
16
  • BEARING, NEEDLE (32X38X20) (NTN) - $15.50
21
  • BEARING, THRUST NEEDLE (31X47X2) - $13.16
13
  • RING, SNAP (68MM) - $5.20
9
  • WASHER, THRUST (26MM) - $7.31
7
  • WASHER, SPLINE (35X50X3.20) - $8.83
  • WASHER, SPLINE (35X50X3.40) - $8.38
  • WASHER, SPLINE (35X50X3.00) - $8.38
  • WASHER, SPLINE (35X50X3.25) - $8.38
  • WASHER, SPLINE (35X50X3.35) - $8.62
  • WASHER, SPLINE (35X50X3.05) - $8.38
  • WASHER, SPLINE (35X50X3.30) - $8.38
  • WASHER, SPLINE (35X50X3.15) - $8.38
  • WASHER, SPLINE (35X50X3.10) - $8.38
12
  • CIRCLIP (OUTER) (20MM) - $2.82
11
  • COLLAR (26MM)
15
  • BEARING, BALL (63/26) (NTN) - $28.19
2
  • MAINSHAFT
5
  • NUT, FLANGE (19MM) - $7.38
20
  • BEARING, THRUST NEEDLE (32X44X2) (NTN) - $9.60
19
  • BEARING, THRUST NEEDLE (35X52X2) (NTN) - $13.16
3
  • GEAR, MAINSHAFT LOW
8
  • WASHER (26X45X4) - $8.46
18
  • BEARING, NEEDLE (31X36X18.5) - $17.64
6
  • WASHER, THRUST (31X43.5X1.5) - $5.47
10
  • COLLAR, DISTANCE (20MM)
1
  • RING, SEALING (32MM) - $8.33
23
  • O-RING (19.8X1.9) (ARAI) - $2.03
  • O-RING (19.8X1.9) (ARAI) - $2.03
16
  • BEARING, NEEDLE (32X38X20) (NTN) - $15.50
22
  • O-RING (31.2X1.9) (ARAI) - $1.93
4
  • GEAR, MAINSHAFT SECOND
1
  • RING, SEALING (32MM) - $8.33
17
  • BEARING, NEEDLE (20X26X20) - $15.59
  • BEARING, NEEDLE (20X26X20) - $15.59
No. Part # Part # / Description Qty Req. List Price Price
1 22814-PA9-023 22814-PA9-023 / RING, SEALING (32MM)

2 $11.57 $8.33
2 23210-PA9-901 23210-PA9-901 / MAINSHAFT

1 - -
3 23411-PA9-000 23411-PA9-000 / GEAR, MAINSHAFT LOW

1 - -
4 23431-PA9-670 23431-PA9-670 / GEAR, MAINSHAFT SECOND

1 - -
5 90201-PA9-000 90201-PA9-000 / NUT, FLANGE (19MM)

1 $10.25 $7.38
6 90406-PA9-000 90406-PA9-000 / WASHER, THRUST (31X43.5X1.5)

1 $7.59 $5.47
7 90415-PA9-010 90415-PA9-010 / WASHER, SPLINE (35X50X3.20)

1 $12.27 $8.83
7 90421-PA9-000 90421-PA9-000 / WASHER, SPLINE (35X50X3.40)

1 $11.63 $8.38
7 90411-PA9-010 90411-PA9-010 / WASHER, SPLINE (35X50X3.00)

1 $11.63 $8.38
7 90418-PA9-000 90418-PA9-000 / WASHER, SPLINE (35X50X3.25)

1 $11.63 $8.38
7 90420-PA9-000 90420-PA9-000 / WASHER, SPLINE (35X50X3.35)

1 $11.97 $8.62
7 90412-PA9-010 90412-PA9-010 / WASHER, SPLINE (35X50X3.05)

1 $11.63 $8.38
7 90419-PA9-000 90419-PA9-000 / WASHER, SPLINE (35X50X3.30)

1 $11.63 $8.38
7 90414-PA9-010 90414-PA9-010 / WASHER, SPLINE (35X50X3.15)

1 $11.63 $8.38
7 90413-PA9-010 90413-PA9-010 / WASHER, SPLINE (35X50X3.10)

1 $11.63 $8.38
8 90417-PA9-000 90417-PA9-000 / WASHER (26X45X4)

1 $11.75 $8.46
9 90422-PA9-000 90422-PA9-000 / WASHER, THRUST (26MM)

1 $10.15 $7.31
10 90506-PA9-010 90506-PA9-010 / COLLAR, DISTANCE (20MM)

1 - -
11 90508-PA9-000 90508-PA9-000 / COLLAR (26MM)

1 - -
12 90603-689-900 90603-689-900 / CIRCLIP (OUTER) (20MM)

1 $3.92 $2.82
13 90609-PC8-000 90609-PC8-000 / RING, SNAP (68MM)

1 $7.22 $5.20
14 90613-PA9-000 90613-PA9-000 / RING, SNAP (26MM)

1 $3.23 $2.33
15 91002-PA9-003 91002-PA9-003 / BEARING, BALL (63/26) (NTN)

1 $39.15 $28.19
16 91011-PG4-003 91011-PG4-003 / BEARING, NEEDLE (32X38X20) (NTN)

2 $21.53 $15.50
17 91011-428-008 91011-428-008 / BEARING, NEEDLE (20X26X20)

1 $21.65 $15.59
17 91011-P48-008 91011-P48-008 / BEARING, NEEDLE (20X26X20)

1 $21.65 $15.59
18 91012-PN6-701 91012-PN6-701 / BEARING, NEEDLE (31X36X18.5)

1 $24.50 $17.64
19 91014-PA9-003 91014-PA9-003 / BEARING, THRUST NEEDLE (35X52X2) (NTN)

1 $18.28 $13.16
20 91018-P56-003 91018-P56-003 / BEARING, THRUST NEEDLE (32X44X2) (NTN)

1 $13.33 $9.60
21 91019-PA9-013 91019-PA9-013 / BEARING, THRUST NEEDLE (31X47X2)

1 $18.28 $13.16
22 91307-PA9-003 91307-PA9-003 / O-RING (31.2X1.9) (ARAI)

2 $2.68 $1.93
23 91308-MG7-003 91308-MG7-003 / O-RING (19.8X1.9) (ARAI)

2 $2.82 $2.03
23 91308-PA9-003 91308-PA9-003 / O-RING (19.8X1.9) (ARAI)

2 $2.82 $2.03
