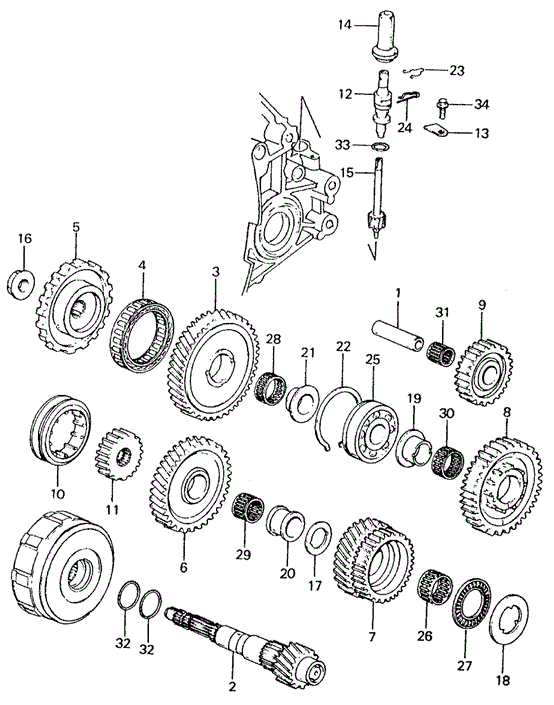

COUNTERSHAFT in TRANSMISSION - HONDAMATIC/AT COUNTERSHAFT for 1982 Honda CIVIC SEDAN

COUNTERSHAFT in TRANSMISSION - HONDAMATIC/AT COUNTERSHAFT for 1982 Honda CIVIC SEDAN #1
33
  • O-RING (23.5X2) - $1.43
17
  • WASHER, THRUST (28X45X2.40)
  • WASHER, THRUST (28X45X2.50)
  • WASHER, THRUST (28X45X2.30)
  • WASHER, THRUST (28X45X2.55)
  • WASHER, THRUST (28X45X2.45)
  • WASHER, THRUST (28X45X2.35)
  • WASHER, THRUST (28X45X2.60)
8
  • GEAR, COUNTERSHAFT REVERSE
32
  • O-RING (31.2X1.9) (ARAI) - $1.93
18
  • WASHER, SPLINE (35X50X3.05) - $8.38
  • WASHER, SPLINE (35X50X3.30) - $8.38
  • WASHER, SPLINE (35X50X3.10) - $8.38
  • WASHER, SPLINE (35X50X3.00) - $8.38
  • WASHER, SPLINE (35X50X3.25) - $8.38
  • WASHER, SPLINE (35X50X3.20) - $8.83
  • WASHER, SPLINE (35X50X3.35) - $8.62
  • WASHER, SPLINE (35X50X3.40) - $8.38
  • WASHER, SPLINE (35X50X3.15) - $8.38
31
  • BEARING, NEEDLE (14X18X15) (NTN) - $11.72
15
  • GEAR, SPEEDOMETER
22
  • RING, SNAP (62MM) - $4.33
3
  • GEAR, COUNTERSHAFT LOW - $35.54
12
  • HOLDER, SPEEDOMETER GEAR
30
  • BEARING, NEEDLE (30X36X14) (TOYO)
27
  • BEARING, THRUST NEEDLE (35X52X2) (NTN) - $13.16
11
  • HUB, REVERSE GEAR - $21.68
28
  • BEARING, NEEDLE (30X35X11) (TOYO)
9
  • GEAR, REVERSE IDLE - $46.46
7
  • GEAR, COUNTERSHAFT THIRD - $42.12
26
  • BEARING, NEEDLE (32X38X20) (NTN) - $15.50
25
  • BEARING, BALL (6305) (NTN) - $23.15
32
  • O-RING (31.2X1.9) (ARAI) - $1.93
13
  • PLATE, SPEEDOMETER GEAR HOLDER - $2.14
29
  • BEARING, NEEDLE (28X33X20) (NTN) - $12.52
1
  • PIN, PISTON
2
  • COUNTERSHAFT
5
  • GEAR, PARKING - $33.32
23
  • CLIP, SPEEDOMETER CABLE - $2.66
4
  • CLUTCH ASSY., ONE-WAY - $98.58
24
  • CLIP, SPEEDOMETER GEAR - $2.66
6
  • GEAR, COUNTERSHAFT SECOND
34
  • BOLT, FLANGE (6X16) - $0.64
10
  • GEAR, REVERSE SELECTOR
21
  • COLLAR, LOW GEAR - $13.15
16
  • NUT, HEX. (20MM) - $7.38
19
  • COLLAR, REVERSE GEAR
14
  • SEAL, GEAR HOLDER - $5.06
20
  • COLLAR, DISTANCE (28MM)
No. Part # Part # / Description Qty Req. List Price Price
1 13111-444-000 13111-444-000 / PIN, PISTON

1 - -
2 23220-PA9-671 23220-PA9-671 / COUNTERSHAFT

1 - -
3 23421-PA9-000 23421-PA9-000 / GEAR, COUNTERSHAFT LOW

1 $49.37 $35.54
4 23423-PA9-003 23423-PA9-003 / CLUTCH ASSY., ONE-WAY

1 $136.92 $98.58
5 23427-PA9-010 23427-PA9-010 / GEAR, PARKING

1 $46.28 $33.32
6 23441-PA9-000 23441-PA9-000 / GEAR, COUNTERSHAFT SECOND

1 - -
7 23451-PA9-900 23451-PA9-900 / GEAR, COUNTERSHAFT THIRD

1 $58.50 $42.12
8 23531-PA9-000 23531-PA9-000 / GEAR, COUNTERSHAFT REVERSE

1 - -
9 23541-PA9-010 23541-PA9-010 / GEAR, REVERSE IDLE

1 $64.53 $46.46
10 23565-639-000 23565-639-000 / GEAR, REVERSE SELECTOR

1 - -
11 23566-PA9-000 23566-PA9-000 / HUB, REVERSE GEAR

1 $30.12 $21.68
12 23811-689-020 23811-689-020 / HOLDER, SPEEDOMETER GEAR

1 - -
13 23813-689-000 23813-689-000 / PLATE, SPEEDOMETER GEAR HOLDER

1 $2.97 $2.14
14 23814-689-000 23814-689-000 / SEAL, GEAR HOLDER

1 $7.03 $5.06
15 23820-PA9-900 23820-PA9-900 / GEAR, SPEEDOMETER

1 - -
16 90201-689-900 90201-689-900 / NUT, HEX. (20MM)

1 $10.25 $7.38
17 90403-PA9-010 90403-PA9-010 / WASHER, THRUST (28X45X2.40)

1 - -
17 90407-PA9-000 90407-PA9-000 / WASHER, THRUST (28X45X2.50)

1 - -
17 90401-PA9-010 90401-PA9-010 / WASHER, THRUST (28X45X2.30)

1 - -
17 90408-PA9-000 90408-PA9-000 / WASHER, THRUST (28X45X2.55)

1 - -
17 90404-PA9-010 90404-PA9-010 / WASHER, THRUST (28X45X2.45)

1 - -
17 90402-PA9-010 90402-PA9-010 / WASHER, THRUST (28X45X2.35)

1 - -
17 90409-PA9-000 90409-PA9-000 / WASHER, THRUST (28X45X2.60)

1 - -
18 90412-PA9-010 90412-PA9-010 / WASHER, SPLINE (35X50X3.05)

1 $11.63 $8.38
18 90419-PA9-000 90419-PA9-000 / WASHER, SPLINE (35X50X3.30)

1 $11.63 $8.38
18 90413-PA9-010 90413-PA9-010 / WASHER, SPLINE (35X50X3.10)

1 $11.63 $8.38
18 90411-PA9-010 90411-PA9-010 / WASHER, SPLINE (35X50X3.00)

1 $11.63 $8.38
18 90418-PA9-000 90418-PA9-000 / WASHER, SPLINE (35X50X3.25)

1 $11.63 $8.38
18 90415-PA9-010 90415-PA9-010 / WASHER, SPLINE (35X50X3.20)

1 $12.27 $8.83
18 90420-PA9-000 90420-PA9-000 / WASHER, SPLINE (35X50X3.35)

1 $11.97 $8.62
18 90421-PA9-000 90421-PA9-000 / WASHER, SPLINE (35X50X3.40)

1 $11.63 $8.38
18 90414-PA9-010 90414-PA9-010 / WASHER, SPLINE (35X50X3.15)

1 $11.63 $8.38
19 90501-PA9-000 90501-PA9-000 / COLLAR, REVERSE GEAR

1 - -
20 90503-PA9-000 90503-PA9-000 / COLLAR, DISTANCE (28MM)

1 - -
21 90505-PA9-000 90505-PA9-000 / COLLAR, LOW GEAR

1 $18.27 $13.15
22 90603-689-000 90603-689-000 / RING, SNAP (62MM)

1 $6.02 $4.33
23 90637-689-000 90637-689-000 / CLIP, SPEEDOMETER CABLE

1 $3.70 $2.66
24 90638-689-000 90638-689-000 / CLIP, SPEEDOMETER GEAR

1 $3.70 $2.66
25 91004-PA9-003 91004-PA9-003 / BEARING, BALL (6305) (NTN)

1 $32.15 $23.15
26 91011-PG4-003 91011-PG4-003 / BEARING, NEEDLE (32X38X20) (NTN)

1 $21.53 $15.50
27 91014-PA9-003 91014-PA9-003 / BEARING, THRUST NEEDLE (35X52X2) (NTN)

1 $18.28 $13.16
28 91015-PA9-003 91015-PA9-003 / BEARING, NEEDLE (30X35X11) (TOYO)

1 - -
29 91016-PA9-003 91016-PA9-003 / BEARING, NEEDLE (28X33X20) (NTN)

1 $17.38 $12.52
30 91024-PA9-003 91024-PA9-003 / BEARING, NEEDLE (30X36X14) (TOYO)

1 - -
31 91025-PJ2-003 91025-PJ2-003 / BEARING, NEEDLE (14X18X15) (NTN)

1 $16.28 $11.72
32 91307-PA9-003 91307-PA9-003 / O-RING (31.2X1.9) (ARAI)

2 $2.68 $1.93
33 91313-611-010 91313-611-010 / O-RING (23.5X2)

1 $1.98 $1.43
34 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

1 $0.88 $0.64
