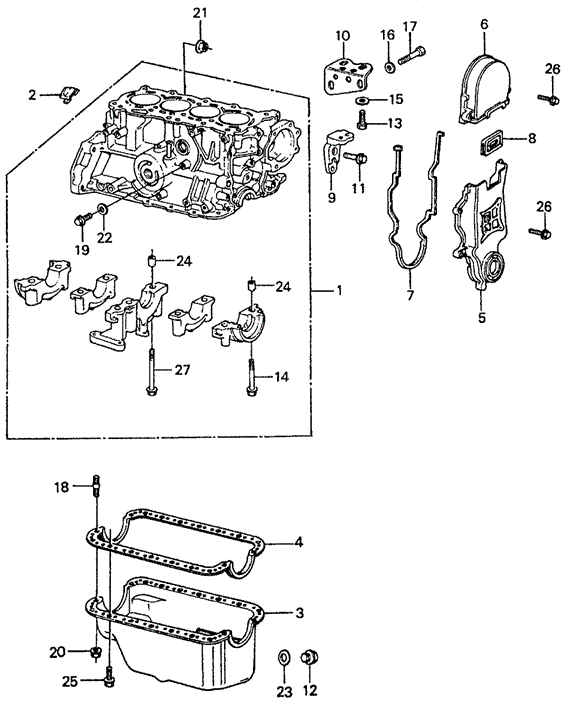

BLOCK ASSY., CYLINDER in ENGINE/CYLINDER BLOCK - OIL PAN for 1982 Honda CIVIC SEDAN

BLOCK ASSY., CYLINDER in ENGINE/CYLINDER BLOCK - OIL PAN for 1982 Honda CIVIC SEDAN #1
8
  • SEAL C, RUBBER - $6.78
12
  • BOLT, DRAIN PLUG (20MM) - $4.03
1
  • BLOCK ASSY., CYLINDER
11
  • BOLT, MOUNTING BRACKET - $3.46
16
  • WASHER, PLAIN (8.5X22X2.3) - $3.24
23
  • WASHER, DRAIN PLUG (20MM) - $0.53
22
  • WASHER, DRAIN PLUG (12MM) - $0.43
9
  • BRACKET, ENGINE MOUNTING
24
  • PIN, DOWEL (12X20) - $0.96
18
  • BOLT, STUD (6X28) - $1.85
21
  • NUT, FLANGE (10MM) - $0.76
24
  • PIN, DOWEL (12X20) - $0.96
19
  • BOLT, DRAIN PLUG (12MM) - $1.54
26
  • BOLT, FLANGE (6X20) - $0.16
2
  • SEAL, TIMING RUBBER
7
  • RUBBER, SEAL
15
  • WASHER, SPECIAL (9X24X4) - $3.37
5
  • COVER, TIMING BELT (LOWER)
3
  • PAN, OIL
6
  • COVER, TIMING BELT (UPPER)
27
  • BOLT, FLANGE (10X80) - $1.30
25
  • BOLT, FLANGE (6X18) - $0.64
14
  • BOLT, FLANGE (10x60)
4
  • GASKET, OIL PAN - $19.45
  • GASKET, OIL PAN (KOUKOKU) - $19.45
17
  • BOLT, HEX. (8X32)
13
  • BOLT, SPECIAL (8X20) - $3.29
26
  • BOLT, FLANGE (6X20) - $0.16
20
  • NUT, FLANGE (6MM) - $0.17
10
  • BRACKET, EX. MANIFOLD
No. Part # Part # / Description Qty Req. List Price Price
1 11000-PA6-020 11000-PA6-020 / BLOCK ASSY., CYLINDER

1 - -
2 11109-PA0-000 11109-PA0-000 / SEAL, TIMING RUBBER

1 - -
3 11200-PA6-030 11200-PA6-030 / PAN, OIL

1 - -
4 11251-PA6-004 11251-PA6-004 / GASKET, OIL PAN

1 $27.02 $19.45
4 11251-PA6-003 11251-PA6-003 / GASKET, OIL PAN (KOUKOKU)

1 $27.02 $19.45
5 11810-PA6-010 11810-PA6-010 / COVER, TIMING BELT (LOWER)

1 - -
6 11820-657-020 11820-657-020 / COVER, TIMING BELT (UPPER)

1 - -
7 11831-PA6-010 11831-PA6-010 / RUBBER, SEAL

1 - -
8 11840-657-010 11840-657-010 / SEAL C, RUBBER

1 $9.42 $6.78
9 11910-PC1-000 11910-PC1-000 / BRACKET, ENGINE MOUNTING

1 - -
10 11940-PA6-010 11940-PA6-010 / BRACKET, EX. MANIFOLD

1 - -
11 90006-642-000 90006-642-000 / BOLT, MOUNTING BRACKET

2 $4.80 $3.46
12 90009-634-000 90009-634-000 / BOLT, DRAIN PLUG (20MM)

1 $5.60 $4.03
13 90010-657-010 90010-657-010 / BOLT, SPECIAL (8X20)

2 $4.57 $3.29
14 90018-657-000 90018-657-000 / BOLT, FLANGE (10x60)

8 - -
15 90451-657-000 90451-657-000 / WASHER, SPECIAL (9X24X4)

2 $4.68 $3.37
16 90509-642-000 90509-642-000 / WASHER, PLAIN (8.5X22X2.3)

2 $4.50 $3.24
17 92000-08032-0H 92000-08032-0H / BOLT, HEX. (8X32)

2 - -
18 90041-PA5-000 90041-PA5-000 / BOLT, STUD (6X28)

6 $2.57 $1.85
19 92800-12000 92800-12000 / BOLT, DRAIN PLUG (12MM)

1 $2.13 $1.54
20 94050-06080 94050-06080 / NUT, FLANGE (6MM)

6 $0.23 $0.17
21 94050-10080 94050-10080 / NUT, FLANGE (10MM)

1 $1.05 $0.76
22 94109-12000 94109-12000 / WASHER, DRAIN PLUG (12MM)

1 $0.60 $0.43
23 94109-20000 94109-20000 / WASHER, DRAIN PLUG (20MM)

1 $0.73 $0.53
24 94301-12200 94301-12200 / PIN, DOWEL (12X20)

10 $1.33 $0.96
25 95701-06018-08 95701-06018-08 / BOLT, FLANGE (6X18)

12 $0.88 $0.64
26 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

6 $0.22 $0.16
27 95701-10080-00 95701-10080-00 / BOLT, FLANGE (10X80)

2 $1.80 $1.30
