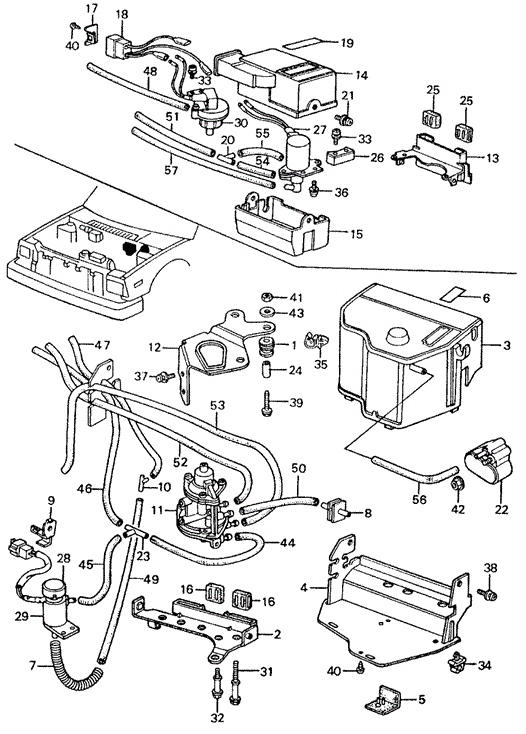

VALVE ASSY., EGR CONTROL in ENGINE/CONTROL VALVE NO. 2, NO. 3 ('82-'83) for 1982 Honda CIVIC SEDAN

VALVE ASSY., EGR CONTROL in ENGINE/CONTROL VALVE NO. 2, NO. 3 ('82-'83) for 1982 Honda CIVIC SEDAN #1
34
  • CLAMP, TUBE (3.5) - $4.02
15
  • COVER, CONTROL BOX (LOWER) (NO.3)
33
  • SCREW-WASHER (5X8) - $1.02
31
  • BOLT, SPECIAL (6x43.5)
16
  • RUBBER, CUSHION - $2.35
6
  • LABEL, CONTROL BOX (NO.2)
  • LABEL, CONTROL BOX (NO.2)
7
  • PROTECTOR, TUBE
11
  • VALVE ASSY., EGR CONTROL
  • VALVE ASSY., EGR CONTROL - $70.52
28
  • FILTER ASSY., SOLENOID VALVE
25
  • RUBBER, CUSHION
43
  • WASHER, PLAIN (6MM) - $0.31
1
  • RUBBER, AIR JET CONTROL MOUNTING
19
  • LABEL, CONTROL BOX (NO.3)
  • LABEL, CONTROL BOX (NO.3)
14
  • COVER, CONTROL BOX (UPPER) (NO.3)
57
  • BULK HOSE, VACUUM (5.5X8000) - $66.74
40
  • SCREW, TAPPING (3X8) - $0.40
52
  • BULK HOSE, VACUUM (4.5X1000) - $8.27
54
  • BULK HOSE, VACUUM (5.5X8000) - $66.74
21
  • SCREW-WASHER (5X8) - $1.90
49
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
55
  • BULK HOSE, VACUUM (5.5X8000) - $66.74
39
  • SCREW-WASHER (6X25)
25
  • RUBBER, CUSHION
48
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
18
  • WIRE ASSY.
4
  • COVER, CONTROL BOX (LOWER) (NO.2)
30
  • SWITCH ASSY., VACUUM - $48.41
  • SWITCH ASSY., VACUUM
8
  • JOINT, CONTROL BOX (NO.2)
17
  • STAY, CONNECTOR
40
  • SCREW, TAPPING (3X8) - $0.40
56
  • BULK HOSE, VACUUM (5.5X8000) - $66.74
51
  • BULK HOSE, VACUUM (4.5X1000) - $8.27
2
  • BASE, CONTROL BOX (NO.2)
24
  • COLLAR, CONTROL VALVE - $2.47
16
  • RUBBER, CUSHION - $2.35
46
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
5
  • RUBBER, PROTECTOR
29
  • VALVE ASSY., EGR CUT SOLENOID
53
  • BULK HOSE, VACUUM (4.5X1000) - $8.27
12
  • BRACKET, CONTROL VALVE
38
  • SCREW-WASHER (6X12) - $0.58
33
  • SCREW-WASHER (5X8) - $1.02
13
  • BASE, CONTROL BOX (NO.3)
22
  • FILTER ASSY. (A2)
41
  • NUT, HEX. (6MM) - $0.50
27
  • VALVE ASSY., OPENER SOLENOID
26
  • SPACER, MOUNTING RUBBER
32
  • BOLT, SPECIAL (6X27)
37
  • SCREW-WASHER (5X8) - $0.46
45
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
44
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
36
  • SCREW-WASHER (4X8) - $0.49
20
  • JOINT (THREE-WAY)
3
  • COVER, CONTROL BOX (UPPER) (NO.2)
23
  • JOINT, THREE WAY - $5.32
9
  • STOPPER, CONNECTOR
50
  • BULK HOSE, VACUUM (4.5X1000) - $8.27
No. Part # Part # / Description Qty Req. List Price Price
1 16807-PA6-000 16807-PA6-000 / RUBBER, AIR JET CONTROL MOUNTING

3 - -
2 18721-PA6-661 18721-PA6-661 / BASE, CONTROL BOX (NO.2)

1 - -
3 18722-PA6-661 18722-PA6-661 / COVER, CONTROL BOX (UPPER) (NO.2)

1 - -
4 18723-PA6-661 18723-PA6-661 / COVER, CONTROL BOX (LOWER) (NO.2)

1 - -
5 18726-PA6-661 18726-PA6-661 / RUBBER, PROTECTOR

1 - -
6 18727-PA6-671 18727-PA6-671 / LABEL, CONTROL BOX (NO.2)

1 - -
6 18727-PA5-681 18727-PA5-681 / LABEL, CONTROL BOX (NO.2)

1 - -
7 18729-PB1-000 18729-PB1-000 / PROTECTOR, TUBE

1 - -
8 18731-PA6-661 18731-PA6-661 / JOINT, CONTROL BOX (NO.2)

1 - -
9 18732-PA6-661 18732-PA6-661 / STOPPER, CONNECTOR

1 - -
11 18740-PA6-665 18740-PA6-665 / VALVE ASSY., EGR CONTROL

1 - -
11 18740-PA5-683 18740-PA5-683 / VALVE ASSY., EGR CONTROL

1 $97.95 $70.52
12 18743-PA6-661 18743-PA6-661 / BRACKET, CONTROL VALVE

1 - -
13 18801-PA6-681 18801-PA6-681 / BASE, CONTROL BOX (NO.3)

1 - -
14 18802-PA6-661 18802-PA6-661 / COVER, CONTROL BOX (UPPER) (NO.3)

1 - -
15 18803-PA6-681 18803-PA6-681 / COVER, CONTROL BOX (LOWER) (NO.3)

1 - -
16 18804-PB2-681 18804-PB2-681 / RUBBER, CUSHION

2 $3.27 $2.35
17 18805-PA6-661 18805-PA6-661 / STAY, CONNECTOR

1 - -
18 18808-PA6-661 18808-PA6-661 / WIRE ASSY.

1 - -
19 18809-PA6-661 18809-PA6-661 / LABEL, CONTROL BOX (NO.3)

1 - -
19 18809-PA6-682 18809-PA6-682 / LABEL, CONTROL BOX (NO.3)

1 - -
20 18810-PA6-682 18810-PA6-682 / JOINT (THREE-WAY)

1 - -
21 18813-PA6-681 18813-PA6-681 / SCREW-WASHER (5X8)

2 $2.63 $1.90
22 18850-PA6-003 18850-PA6-003 / FILTER ASSY. (A2)

1 - -
23 36010-PA6-004 36010-PA6-004 / JOINT, THREE WAY

1 $7.38 $5.32
24 36052-657-300 36052-657-300 / COLLAR, CONTROL VALVE

3 $3.43 $2.47
25 36058-PA0-004 36058-PA0-004 / RUBBER, CUSHION

2 - -
26 36085-PB1-004 36085-PB1-004 / SPACER, MOUNTING RUBBER

1 - -
27 36130-PA6-661 36130-PA6-661 / VALVE ASSY., OPENER SOLENOID

1 - -
28 36138-PA6-661 36138-PA6-661 / FILTER ASSY., SOLENOID VALVE

1 - -
29 36160-PA6-662 36160-PA6-662 / VALVE ASSY., EGR CUT SOLENOID

1 - -
30 36183-PA6-691 36183-PA6-691 / SWITCH ASSY., VACUUM

1 $67.23 $48.41
30 36183-PA6-681 36183-PA6-681 / SWITCH ASSY., VACUUM

1 - -
31 90005-PB2-000 90005-PB2-000 / BOLT, SPECIAL (6x43.5)

1 - -
32 90006-PB1-000 90006-PB1-000 / BOLT, SPECIAL (6X27)

1 - -
33 90092-657-000 90092-657-000 / SCREW-WASHER (5X8)

2 $1.42 $1.02
34 90601-PB1-003 90601-PB1-003 / CLAMP, TUBE (3.5)

1 $5.58 $4.02
36 93892-04008-08 93892-04008-08 / SCREW-WASHER (4X8)

1 $0.68 $0.49
37 93892-05008-08 93892-05008-08 / SCREW-WASHER (5X8)

3 $0.63 $0.46
38 93894-06012-08 93894-06012-08 / SCREW-WASHER (6X12)

2 $0.80 $0.58
39 93894-06025-08 93894-06025-08 / SCREW-WASHER (6X25)

2 - -
40 93903-32120 93903-32120 / SCREW, TAPPING (3X8)

3 $0.55 $0.40
41 94002-06080-0S 94002-06080-0S / NUT, HEX. (6MM)

1 $0.70 $0.50
43 94103-06800 94103-06800 / WASHER, PLAIN (6MM)

1 $0.43 $0.31
49 95005-35008-10M 95005-35008-10M / BULK HOSE, VACUUM (3.5X8000)

1 $52.80 $38.02
53 95005-45001-10M 95005-45001-10M / BULK HOSE, VACUUM (4.5X1000)

1 $11.48 $8.27
57 95005-55008-10M 95005-55008-10M / BULK HOSE, VACUUM (5.5X8000)

1 $92.70 $66.74
