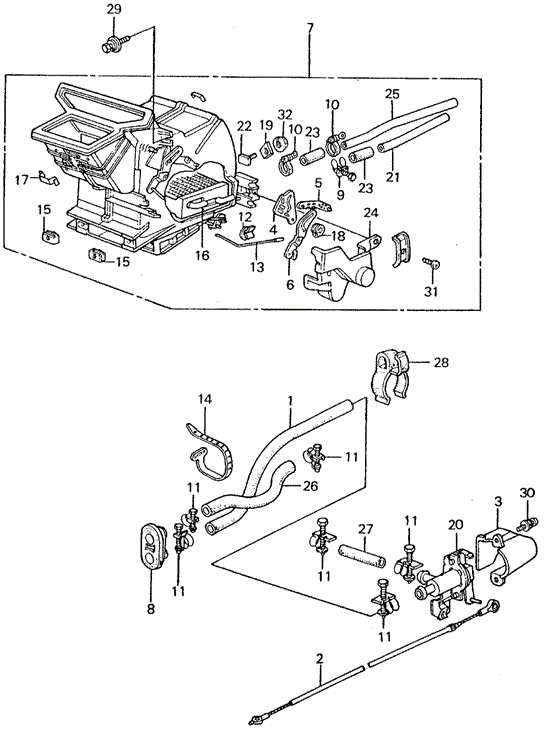

HEATER UNIT in ELECTRICAL / EXHAUST / HEATER / FUEL/HEATER UNIT - WATER HOSE for 1982 Honda CIVIC SEDAN

HEATER UNIT in ELECTRICAL / EXHAUST / HEATER / FUEL/HEATER UNIT - WATER HOSE for 1982 Honda CIVIC SEDAN #1
16
  • CORE, HEATER
3
  • COVER, WATER VALVE DUST
19
  • GASKET, HEATER - $1.38
5
  • LEVER, MODE CABLE
11
  • CLAMP, WATER HOSE
12
  • PIVOT, ADJUSTABLE
9
  • CLAMP, HOSE
11
  • CLAMP, WATER HOSE
26
  • HOSE, WATER OUTLET
15
  • NUT, INSTRUMENT PANEL - $5.33
15
  • NUT, INSTRUMENT PANEL - $5.33
11
  • CLAMP, WATER HOSE
18
  • STOPPER, LEVER
1
  • HOSE B, WATER
14
  • BAND, OIL HOSE - $2.22
30
  • SCREW-WASHER (4X8) - $0.58
6
  • LINK, HOT AIR DAMPER
11
  • CLAMP, WATER HOSE
2
  • CABLE, CONTROL VALVE
23
  • HOSE, WATER - $5.66
21
  • PIPE, WATER INLET - $6.60
23
  • HOSE, WATER - $5.66
25
  • PIPE, WATER OUTLET
11
  • CLAMP, WATER HOSE
10
  • CLAMP, WATER HOSE
17
  • CLAMP, CASE HOLD
31
  • SCREW, TAPPING (5X12) - $0.36
32
  • NUT, FLANGE (8MM) - $0.18
7
  • HEATER UNIT
27
  • HOSE, WATER VALVE
8
  • GROMMET, HEATER PIPE
10
  • CLAMP, WATER HOSE
29
  • BOLT-WASHER (6X16) - $0.73
28
  • HOLDER, WATER HOSE
11
  • CLAMP, WATER HOSE
20
  • VALVE ASSY., WATER
4
  • PLATE, GEAR
24
  • COVER, WATER VALVE
No. Part # Part # / Description Qty Req. List Price Price
1 38692-SA0-010 38692-SA0-010 / HOSE B, WATER

1 - -
2 38693-SA0-000 38693-SA0-000 / CABLE, CONTROL VALVE

1 - -
3 38694-SA0-013 38694-SA0-013 / COVER, WATER VALVE DUST

1 - -
4 39205-SA0-003 39205-SA0-003 / PLATE, GEAR

1 - -
5 39206-SA0-003 39206-SA0-003 / LEVER, MODE CABLE

1 - -
6 39207-SA0-911 39207-SA0-911 / LINK, HOT AIR DAMPER

1 - -
7 39210-SA0-678 39210-SA0-678 / HEATER UNIT

1 - -
8 39214-692-000 39214-692-000 / GROMMET, HEATER PIPE

1 - -
9 39219-671-000 39219-671-000 / CLAMP, HOSE

1 - -
10 39289-692-003 39289-692-003 / CLAMP, WATER HOSE

2 - -
11 39223-671-000 39223-671-000 / CLAMP, WATER HOSE

6 - -
12 39223-692-003 39223-692-003 / PIVOT, ADJUSTABLE

1 - -
14 90656-PB1-003 90656-PB1-003 / BAND, OIL HOSE

1 $3.08 $2.22
15 39233-692-003 39233-692-003 / NUT, INSTRUMENT PANEL

2 $7.40 $5.33
16 39245-692-003 39245-692-003 / CORE, HEATER

1 - -
17 N116632-0120 N116632-0120 / CLAMP, CASE HOLD

9 - -
18 39246-692-003 39246-692-003 / STOPPER, LEVER

3 - -
19 39248-692-003 39248-692-003 / GASKET, HEATER

1 $1.92 $1.38
20 39271-SA0-023 39271-SA0-023 / VALVE ASSY., WATER

1 - -
21 39278-692-003 39278-692-003 / PIPE, WATER INLET

1 $9.17 $6.60
23 39286-692-003 39286-692-003 / HOSE, WATER

2 $7.87 $5.66
24 39292-SA0-013 39292-SA0-013 / COVER, WATER VALVE

1 - -
25 39293-692-003 39293-692-003 / PIPE, WATER OUTLET

1 - -
26 39312-692-000 39312-692-000 / HOSE, WATER OUTLET

1 - -
27 39313-SA0-010 39313-SA0-010 / HOSE, WATER VALVE

1 - -
28 90664-693-000 90664-693-000 / HOLDER, WATER HOSE

1 - -
29 93405-06016-08 93405-06016-08 / BOLT-WASHER (6X16)

2 $1.02 $0.73
30 93893-04008-08 93893-04008-08 / SCREW-WASHER (4X8)

2 $0.80 $0.58
31 93903-35220 93903-35220 / SCREW, TAPPING (5X12)

1 $0.50 $0.36
32 94050-08080 94050-08080 / NUT, FLANGE (8MM)

1 $0.25 $0.18
