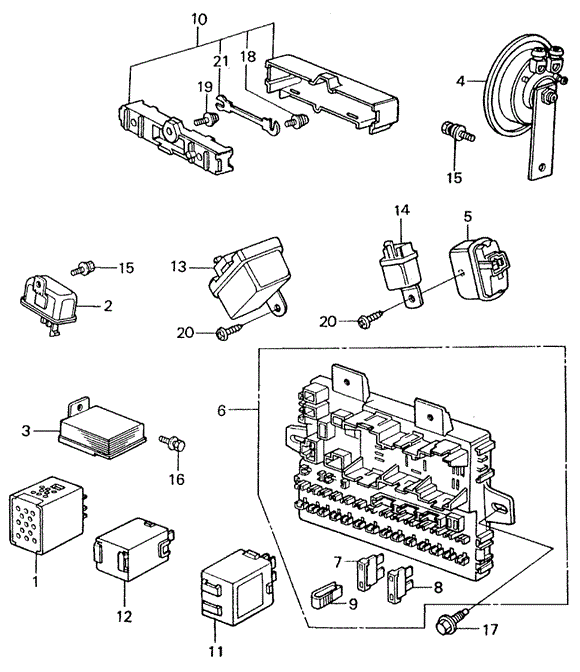

BOX ASSY., FUSE in ELECTRICAL / EXHAUST / HEATER / FUEL/FUSE BOX - RELAY - HORN ('82-'83) for 1982 Honda CIVIC SEDAN

BOX ASSY., FUSE in ELECTRICAL / EXHAUST / HEATER / FUEL/FUSE BOX - RELAY - HORN ('82-'83) for 1982 Honda CIVIC SEDAN #1
20
  • SCREW, TAPPING (6X16) - $6.66
15
  • BOLT-WASHER (6X16) - $0.64
20
  • SCREW, TAPPING (6X16) - $6.66
13
  • BUZZER ASSY., BELT
9
  • PULLER, FUSE (SUMITOMO) - $1.44
18
  • SCREW-WASHER (5X10) - $0.58
11
  • RELAY ASSY., INTERMITTENT WIPER (IS-2206) (MITSUBA) - $44.12
15
  • BOLT-WASHER (6X16) - $0.64
3
  • RESISTOR, AUTO CHOKE - $14.39
  • RESISTOR, AUTO CHOKE - $14.17
8
  • FUSE, BLADE (15A) - $0.55
14
  • RELAY ASSY., POWER - $50.95
10
  • BOX ASSY., MAIN FUSE
5
  • RELAY ASSY., HORN - $36.60
12
  • RELAY ASSY., TURN SIGNAL AND HAZARD (FR-3321) (MITSUBA) - $28.92
  • RELAY ASSY., TURN SIGNAL AND HAZARD (FR-3309) (MITSUBA) - $28.92
4
  • HORN ASSY. (LOW)
2
  • CONTROL UNIT, IDLE - $33.00
6
  • BOX ASSY., FUSE
17
  • BOLT-WASHER (6X20) - $0.73
21
  • FUSE (55A) - $0.80
19
  • SCREW-WASHER (6X12) - $0.58
1
  • RELAY ASSY., FUEL CUT (3.7 141) (3P) (SHINDENGEN)
7
  • FUSE, BLADE (10A) - $0.55
No. Part # Part # / Description Qty Req. List Price Price
1 16760-SA0-003 16760-SA0-003 / RELAY ASSY., FUEL CUT (3.7 141) (3P) (SHINDENGEN)

1 - -
2 36042-PA6-003 36042-PA6-003 / CONTROL UNIT, IDLE

1 $45.83 $33.00
3 37380-PC2-661 37380-PC2-661 / RESISTOR, AUTO CHOKE

1 $19.98 $14.39
3 37380-PA6-661 37380-PA6-661 / RESISTOR, AUTO CHOKE

1 $19.68 $14.17
4 38100-SH3-G02 38100-SH3-G02 / HORN ASSY. (LOW)

1 - -
5 38120-671-623 38120-671-623 / RELAY ASSY., HORN

1 $50.83 $36.60
6 38200-SA0-679 38200-SA0-679 / BOX ASSY., FUSE

1 - -
7 98200-31000 98200-31000 / FUSE, BLADE (10A)

19 $0.77 $0.55
8 98200-31500 98200-31500 / FUSE, BLADE (15A)

14 $0.77 $0.55
9 38235-SA5-003 38235-SA5-003 / PULLER, FUSE (SUMITOMO)

1 $2.00 $1.44
10 38250-SA0-033 38250-SA0-033 / BOX ASSY., MAIN FUSE

1 - -
11 38290-SA5-003 38290-SA5-003 / RELAY ASSY., INTERMITTENT WIPER (IS-2206) (MITSUBA)

1 $62.08 $44.12
12 38300-S5T-003 38300-S5T-003 / RELAY ASSY., TURN SIGNAL AND HAZARD (FR-3321) (MITSUBA)

1 $40.17 $28.92
12 38300-SE3-013 38300-SE3-013 / RELAY ASSY., TURN SIGNAL AND HAZARD (FR-3309) (MITSUBA)

1 $40.17 $28.92
13 38965-671-672 38965-671-672 / BUZZER ASSY., BELT

1 - -
14 39400-SA5-405 39400-SA5-405 / RELAY ASSY., POWER

1 $70.77 $50.95
15 93402-06016-08 93402-06016-08 / BOLT-WASHER (6X16)

1 $0.88 $0.64
17 93405-06020-08 93405-06020-08 / BOLT-WASHER (6X20)

2 $1.02 $0.73
18 93893-05010-08 93893-05010-08 / SCREW-WASHER (5X10)

2 $0.80 $0.58
19 93893-06012-08 93893-06012-08 / SCREW-WASHER (6X12)

1 $0.80 $0.58
20 93901-16210 93901-16210 / SCREW, TAPPING (6X16)

2 $9.25 $6.66
21 98200-65500 98200-65500 / FUSE (55A)

1 $1.12 $0.80
