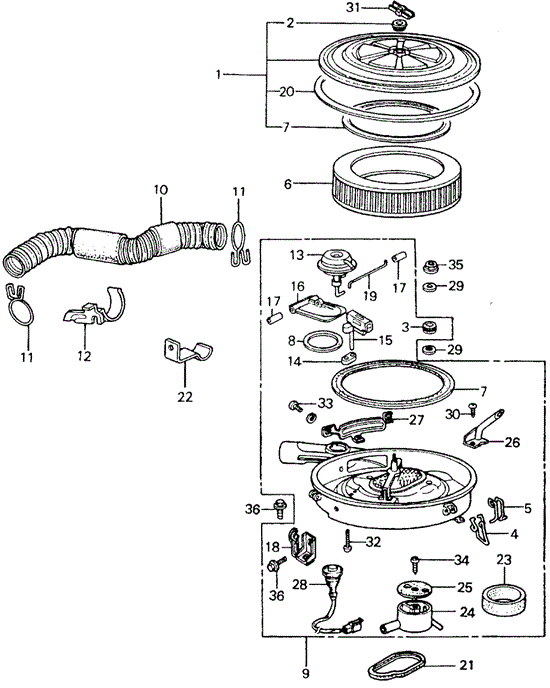

CASE ASSY., CLEANER in ELECTRICAL / EXHAUST / HEATER / FUEL/AIR CLEANER - FILTER - HOT AIR PIPE for 1982 Honda CIVIC SEDAN

CASE ASSY., CLEANER in ELECTRICAL / EXHAUST / HEATER / FUEL/AIR CLEANER - FILTER - HOT AIR PIPE for 1982 Honda CIVIC SEDAN #1
6
  • ELEMENT, AIR CLEANER
3
  • RUBBER, AIR CONTROL MOUNTING
21
  • INSULATOR, CLEANER CASE
30
  • SCREW, TAPPING (6X16)
12
  • CLAMP, AIR IN. PIPE
19
  • PIN, PLUG LOCK - $1.94
11
  • CLIP, AIR IN. TUBE
26
  • PIPE, BREATHER
22
  • CLAMP, CANISTER HOSE
14
  • INSULATOR, SENSOR
32
  • SCREW, PAN (4X16) - $0.36
17
  • PLUG, CONTROL VALVE - $2.90
11
  • CLIP, AIR IN. TUBE
35
  • NUT, FLANGE (6MM) - $0.17
7
  • GASKET, ELEMENT
28
  • SWITCH ASSY., AIR TEMPERATURE
4
  • CLIP A, WIRE (DACRO COATING) - $3.53
29
  • WASHER, SEAT MOUNTING - $1.52
29
  • WASHER, SEAT MOUNTING - $1.52
36
  • BOLT, FLANGE (6X10) - $0.62
  • BOLT, FLANGE (6X10) - $0.62
17
  • PLUG, CONTROL VALVE - $2.90
23
  • COVER, BREATHER CHAMBER
10
  • PIPE, AIR IN.
  • PIPE, AIR IN.
36
  • BOLT, FLANGE (6X10) - $0.62
  • BOLT, FLANGE (6X10) - $0.62
16
  • VALVE, AIR CONTROL
1
  • COVER, AIR CLEANER
31
  • NUT, AIR CLEANER COVER (DACRO COATING) - $3.01
15
  • SENSOR, AIR IN.
  • SENSOR, AIR IN.
20
  • GASKET, AIR CLEANER COVER - $8.58
2
  • WASHER, AIR CLEANER
25
  • GASKET, BREATHER
8
  • SEAL, VALVE
34
  • SCREW, TAPPING (6X16) - $0.29
18
  • STAY, CLEANER CASE
24
  • CHAMBER, BREATHER
13
  • DIAPHRAGM, CONTROL VALVE
5
  • CLIP B, WIRE (DACRO COATING)
9
  • CASE ASSY., CLEANER
  • CASE ASSY., CLEANER
27
  • PLATE, RECTIFIER
33
  • SCREW-WASHER (4X8) - $0.49
7
  • GASKET, ELEMENT
No. Part # Part # / Description Qty Req. List Price Price
1 17210-PA6-681 17210-PA6-681 / COVER, AIR CLEANER

1 - -
2 17212-PC0-000 17212-PC0-000 / WASHER, AIR CLEANER

1 - -
3 17213-PA0-000 17213-PA0-000 / RUBBER, AIR CONTROL MOUNTING

2 - -
4 17216-671-000 17216-671-000 / CLIP A, WIRE (DACRO COATING)

3 $4.91 $3.53
5 17217-657-000 17217-657-000 / CLIP B, WIRE (DACRO COATING)

3 - -
6 17220-PA6-023 17220-PA6-023 / ELEMENT, AIR CLEANER

1 - -
7 17221-PA0-300 17221-PA0-300 / GASKET, ELEMENT

2 - -
8 17222-657-300 17222-657-300 / SEAL, VALVE

1 - -
9 17240-PA5-663 17240-PA5-663 / CASE ASSY., CLEANER

1 - -
9 17240-PA5-683 17240-PA5-683 / CASE ASSY., CLEANER

1 - -
10 17242-PA0-003 17242-PA0-003 / PIPE, AIR IN.

1 - -
10 17242-PA0-003 17242-PA0-003 / PIPE, AIR IN.

1 - -
11 17243-671-000 17243-671-000 / CLIP, AIR IN. TUBE

2 - -
12 17244-PA0-010 17244-PA0-010 / CLAMP, AIR IN. PIPE

1 - -
13 17245-PG6-000 17245-PG6-000 / DIAPHRAGM, CONTROL VALVE

1 - -
14 17247-PA0-000 17247-PA0-000 / INSULATOR, SENSOR

1 - -
15 17250-PE0-003 17250-PE0-003 / SENSOR, AIR IN.

1 - -
15 17250-PE0-003 17250-PE0-003 / SENSOR, AIR IN.

1 - -
16 17251-657-920 17251-657-920 / VALVE, AIR CONTROL

1 - -
17 17253-PC6-300 17253-PC6-300 / PLUG, CONTROL VALVE

2 $4.03 $2.90
18 17255-PA6-661 17255-PA6-661 / STAY, CLEANER CASE

1 - -
19 17257-PE3-730 17257-PE3-730 / PIN, PLUG LOCK

1 $2.70 $1.94
20 17258-PA6-680 17258-PA6-680 / GASKET, AIR CLEANER COVER

1 $11.92 $8.58
21 17266-PA0-000 17266-PA0-000 / INSULATOR, CLEANER CASE

1 - -
22 17267-PA5-660 17267-PA5-660 / CLAMP, CANISTER HOSE

1 - -
23 17270-PB2-000 17270-PB2-000 / COVER, BREATHER CHAMBER

1 - -
24 17271-PA5-660 17271-PA5-660 / CHAMBER, BREATHER

1 - -
25 17272-PA6-000 17272-PA6-000 / GASKET, BREATHER

1 - -
26 17276-PA5-661 17276-PA5-661 / PIPE, BREATHER

1 - -
27 17415-PA6-000 17415-PA6-000 / PLATE, RECTIFIER

1 - -
28 37300-PA5-671 37300-PA5-671 / SWITCH ASSY., AIR TEMPERATURE

1 - -
29 77302-124-000 77302-124-000 / WASHER, SEAT MOUNTING

4 $2.12 $1.52
30 90070-PC1-000 90070-PC1-000 / SCREW, TAPPING (6X16)

1 - -
31 90203-PB2-000 90203-PB2-000 / NUT, AIR CLEANER COVER (DACRO COATING)

1 $4.18 $3.01
32 93500-04016-0H 93500-04016-0H / SCREW, PAN (4X16)

1 $0.50 $0.36
33 93891-04008-08 93891-04008-08 / SCREW-WASHER (4X8)

2 $0.68 $0.49
34 93903-36210 93903-36210 / SCREW, TAPPING (6X16)

1 $0.40 $0.29
35 94050-06080 94050-06080 / NUT, FLANGE (6MM)

2 $0.23 $0.17
36 95700-06010-08 95700-06010-08 / BOLT, FLANGE (6X10)

2 $0.87 $0.62
36 95701-06010-08 95701-06010-08 / BOLT, FLANGE (6X10)

2 $0.87 $0.62
