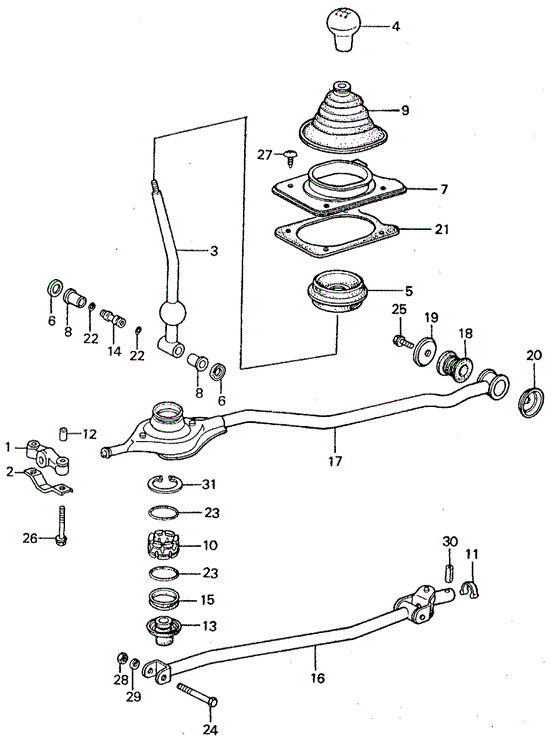

LEVER, CHANGE in CHASSIS/SHIFT LEVER for 1982 Honda CIVIC SEDAN

LEVER, CHANGE in CHASSIS/SHIFT LEVER for 1982 Honda CIVIC SEDAN #1
14
  • COLLAR, RR. JOINT
16
  • ROD, GEARSHIFT
7
  • HOLDER, CHANGE BOOT - $12.62
9
  • BOOT, CHANGE LEVER
21
  • SEAL, SHIFT LEVER MOUNTING
6
  • WASHER, THRUST - $2.90
27
  • SCREW, TAPPING (6X16)
23
  • O-RING (35X3) - $1.69
28
  • NUT, HEX. (8MM) - $0.43
13
  • DUST SEAL B, CHANGE
6
  • WASHER, THRUST - $2.90
30
  • PIN, SPRING (8X20)
22
  • O-RING (11X1.9) (NOK) - $0.89
8
  • BUSH, RR. JOINT - $3.72
10
  • SEAT, CHANGE LEVER BALL
17
  • EXTENSION, CHANGE - $34.50
5
  • DUST SEAL A
31
  • CIRCLIP, INNER (40MM) - $1.03
20
  • WASHER B, EXTENSION END - $3.94
18
  • RUBBER, EXTENSION END
4
  • KNOB, CHANGE LEVER
15
  • STOPPER, CHANGE LEVER BALL
19
  • WASHER A, EXTENSION END
3
  • LEVER, CHANGE
26
  • BOLT-WASHER (8X40) - $0.91
22
  • O-RING (11X1.9) (NOK) - $0.89
2
  • STOPPER, EX. PIPE MOUNTING
8
  • BUSH, RR. JOINT - $3.72
24
  • BOLT, HEX. (8X45)
12
  • COLLAR, PIPE MOUNTING
25
  • BOLT-WASHER (6X16) - $0.64
23
  • O-RING (35X3) - $1.69
11
  • CLIP - $3.36
1
  • RUBBER, EX. PIPE MOUNTING - $6.05
29
  • WASHER, SPRING (8MM) - $0.38
No. Part # Part # / Description Qty Req. List Price Price
1 18260-659-000 18260-659-000 / RUBBER, EX. PIPE MOUNTING

1 $8.40 $6.05
2 18262-659-000 18262-659-000 / STOPPER, EX. PIPE MOUNTING

1 - -
3 54101-693-000 54101-693-000 / LEVER, CHANGE

1 - -
4 54102-SB3-305 54102-SB3-305 / KNOB, CHANGE LEVER

1 - -
5 54104-692-000 54104-692-000 / DUST SEAL A

1 - -
6 54105-692-010 54105-692-010 / WASHER, THRUST

2 $4.03 $2.90
7 54106-692-010 54106-692-010 / HOLDER, CHANGE BOOT

1 $17.53 $12.62
8 54107-SA0-010 54107-SA0-010 / BUSH, RR. JOINT

2 $5.17 $3.72
9 54108-SA0-020 54108-SA0-020 / BOOT, CHANGE LEVER

1 - -
10 54110-692-020 54110-692-020 / SEAT, CHANGE LEVER BALL

1 - -
11 54113-611-505 54113-611-505 / CLIP

1 $4.67 $3.36
12 54114-SA0-000 54114-SA0-000 / COLLAR, PIPE MOUNTING

2 - -
13 54114-692-020 54114-692-020 / DUST SEAL B, CHANGE

1 - -
14 54117-692-000 54117-692-000 / COLLAR, RR. JOINT

1 - -
15 54119-692-000 54119-692-000 / STOPPER, CHANGE LEVER BALL

1 - -
16 54201-SA0-030 54201-SA0-030 / ROD, GEARSHIFT

1 - -
17 54301-SA0-050 54301-SA0-050 / EXTENSION, CHANGE

1 $47.92 $34.50
18 54303-SA5-000 54303-SA5-000 / RUBBER, EXTENSION END

1 - -
19 54304-689-000 54304-689-000 / WASHER A, EXTENSION END

1 - -
20 54305-SA0-000 54305-SA0-000 / WASHER B, EXTENSION END

1 $5.47 $3.94
21 54318-SA0-000 54318-SA0-000 / SEAL, SHIFT LEVER MOUNTING

1 - -
22 91303-HA0-004 91303-HA0-004 / O-RING (11X1.9) (NOK)

4 $1.23 $0.89
23 91351-689-000 91351-689-000 / O-RING (35X3)

2 $2.35 $1.69
24 92201-08045-0H 92201-08045-0H / BOLT, HEX. (8X45)

1 - -
25 93402-06016-08 93402-06016-08 / BOLT-WASHER (6X16)

1 $0.88 $0.64
26 93402-08040-08 93402-08040-08 / BOLT-WASHER (8X40)

2 $1.27 $0.91
27 93904-16210 93904-16210 / SCREW, TAPPING (6X16)

4 - -
28 94001-08000-0S 94001-08000-0S / NUT, HEX. (8MM)

1 $0.60 $0.43
29 94111-08800 94111-08800 / WASHER, SPRING (8MM)

1 $0.53 $0.38
30 94305-80202 94305-80202 / PIN, SPRING (8X20)

1 - -
31 94520-40000 94520-40000 / CIRCLIP, INNER (40MM)

1 $1.43 $1.03
