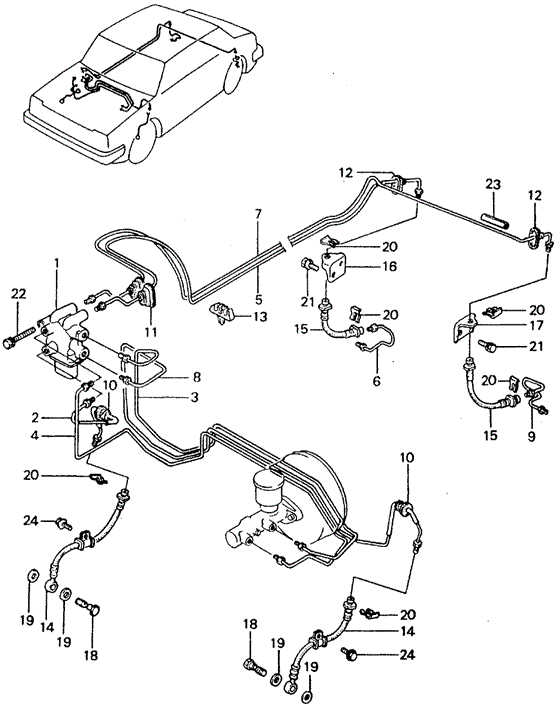

VALVE ASSY., PROPORTIONING in CHASSIS/BRAKE LINE for 1982 Honda CIVIC SEDAN

VALVE ASSY., PROPORTIONING in CHASSIS/BRAKE LINE for 1982 Honda CIVIC SEDAN #1
21
  • BOLT-WASHER (6X16) - $0.64
3
  • PIPE B, BRAKE
24
  • BOLT, FLANGE (6X10) - $0.62
  • BOLT, FLANGE (6X10) - $0.62
2
  • PIPE A, BRAKE
20
  • CLIP, BRAKE HOSE - $3.30
1
  • VALVE ASSY., PROPORTIONING
7
  • PIPE D, BRAKE
18
  • BOLT, OIL - $3.97
11
  • GROMMET B, BRAKE PIPE
23
  • TUBE, VINYL (5X7X60) - $0.25
10
  • GROMMET A, BRAKE PIPE
10
  • GROMMET A, BRAKE PIPE
8
  • PIPE F, BRAKE
17
  • BRACKET, L. RR. BRAKE HOSE
19
  • GASKET, OIL BOLT - $2.27
  • WASHER, OIL BOLT - $1.87
6
  • PIPE E, R. BRAKE
20
  • CLIP, BRAKE HOSE - $3.30
19
  • GASKET, OIL BOLT - $2.27
  • WASHER, OIL BOLT - $1.87
22
  • BOLT-WASHER (8X45) - $0.62
5
  • PIPE C, BRAKE
4
  • PIPE H, BRAKE - $22.61
9
  • PIPE E, L. BRAKE
15
  • HOSE SET, RR. BRAKE
12
  • GROMMET A, BRAKE PIPE
19
  • GASKET, OIL BOLT - $2.27
  • WASHER, OIL BOLT - $1.87
12
  • GROMMET A, BRAKE PIPE
20
  • CLIP, BRAKE HOSE - $3.30
24
  • BOLT, FLANGE (6X10) - $0.62
  • BOLT, FLANGE (6X10) - $0.62
14
  • SET,FR BRAKE HOSE - $24.38
21
  • BOLT-WASHER (6X16) - $0.64
20
  • CLIP, BRAKE HOSE - $3.30
18
  • BOLT, OIL - $3.97
13
  • CLIP D, BRAKE PIPE (WHITE) - $4.94
16
  • BRACKET, R. RR. BRAKE HOSE
15
  • HOSE SET, RR. BRAKE
20
  • CLIP, BRAKE HOSE - $3.30
14
  • SET,FR BRAKE HOSE - $24.38
20
  • CLIP, BRAKE HOSE - $3.30
19
  • GASKET, OIL BOLT - $2.27
  • WASHER, OIL BOLT - $1.87
No. Part # Part # / Description Qty Req. List Price Price
1 46210-SA0-672 46210-SA0-672 / VALVE ASSY., PROPORTIONING

1 - -
2 46310-SA0-600 46310-SA0-600 / PIPE A, BRAKE

1 - -
3 46320-SA0-672 46320-SA0-672 / PIPE B, BRAKE

1 - -
4 46321-SA0-672 46321-SA0-672 / PIPE H, BRAKE

1 $31.40 $22.61
5 46330-SA1-000 46330-SA1-000 / PIPE C, BRAKE

1 - -
6 46331-SA0-000 46331-SA0-000 / PIPE E, R. BRAKE

1 - -
7 46340-SA1-000 46340-SA1-000 / PIPE D, BRAKE

1 - -
8 46360-SA0-603 46360-SA0-603 / PIPE F, BRAKE

1 - -
9 46361-SA0-000 46361-SA0-000 / PIPE E, L. BRAKE

1 - -
10 46380-579-300 46380-579-300 / GROMMET A, BRAKE PIPE

2 - -
11 46381-SA0-300 46381-SA0-300 / GROMMET B, BRAKE PIPE

2 - -
12 46382-SA0-300 46382-SA0-300 / GROMMET A, BRAKE PIPE

2 - -
13 46392-692-003 46392-692-003 / CLIP D, BRAKE PIPE (WHITE)

6 $6.87 $4.94
14 01464-SA0-030 01464-SA0-030 / SET,FR BRAKE HOSE

2 $33.87 $24.38
15 01466-SA0-010 01466-SA0-010 / HOSE SET, RR. BRAKE

2 - -
16 46435-SA0-670 46435-SA0-670 / BRACKET, R. RR. BRAKE HOSE

1 - -
17 46436-SA0-670 46436-SA0-670 / BRACKET, L. RR. BRAKE HOSE

1 - -
18 46462-SE0-000 46462-SE0-000 / BOLT, OIL

2 $5.52 $3.97
19 46472-568-000 46472-568-000 / GASKET, OIL BOLT

4 $3.15 $2.27
19 90545-300-000 90545-300-000 / WASHER, OIL BOLT

4 $2.60 $1.87
20 90651-538-000 90651-538-000 / CLIP, BRAKE HOSE

6 $4.58 $3.30
21 93402-06016-08 93402-06016-08 / BOLT-WASHER (6X16)

4 $0.88 $0.64
22 93402-08045-08 93402-08045-08 / BOLT-WASHER (8X45)

1 $0.87 $0.62
23 95003-12006-10 95003-12006-10 / TUBE, VINYL (5X7X60)

1 $0.35 $0.25
24 95700-06010-08 95700-06010-08 / BOLT, FLANGE (6X10)

2 $0.87 $0.62
24 95701-06010-08 95701-06010-08 / BOLT, FLANGE (6X10)

2 $0.87 $0.62
