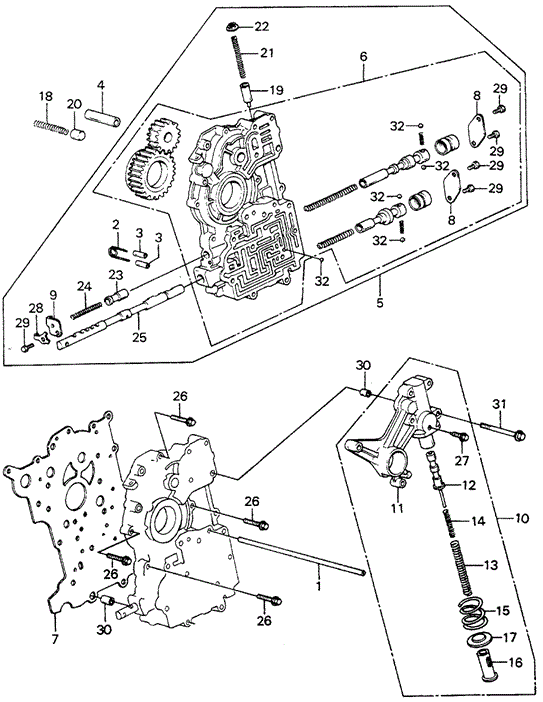

BODY SUB-ASSY., MAIN VALVE in TRANSMISSION - HONDAMATIC/HMT MAIN VALVE BODY - REGULATORVALVE for 1982 Honda CIVIC HATCHBACK

BODY SUB-ASSY., MAIN VALVE in TRANSMISSION - HONDAMATIC/HMT MAIN VALVE BODY - REGULATORVALVE for 1982 Honda CIVIC HATCHBACK #1
9
  • PLATE, VALVE STOPPER
3
  • ROLLER (6X16)
7
  • PLATE, MAIN SEPARATING
23
  • VALVE, ORIFICE CONTROL
  • VALVE, ORIFICE CONTROL
8
  • COVER, SHIFT VALVE - $4.61
21
  • SPRING, RELIEF VALVE
29
  • BOLT, HEX. (5X12) - $0.40
8
  • COVER, SHIFT VALVE - $4.61
29
  • BOLT, HEX. (5X12) - $0.40
14
  • SPRING B, REGULATOR VALVE - $2.86
27
  • BOLT, STOPPER (6MM)
2
  • SPRING, ROLLER - $3.46
17
  • SEAT, REACTION SPRING
19
  • VALVE, RELIEF - $9.83
11
  • BODY, REGULATOR VALVE
28
  • WASHER, LOCK (5MM) - $2.38
32
  • BALL, STEEL (#6) (3/16) - $0.20
32
  • BALL, STEEL (#6) (3/16) - $0.20
26
  • BOLT, FLANGE (6X30) - $0.86
26
  • BOLT, FLANGE (6X30) - $0.86
25
  • VALVE, MANUAL
1
  • PIPE, LOW CLUTCH
10
  • REGULATOR ASSY.
29
  • BOLT, HEX. (5X12) - $0.40
29
  • BOLT, HEX. (5X12) - $0.40
30
  • PIN, DOWEL (8X14) - $0.84
20
  • VALVE, TORQUE CONVERTER CHECK - $3.19
16
  • CAP, REGULATOR SPRING
15
  • SPRING, REACTION STATOR - $10.10
24
  • SPRING, ORIFICE CONTROL VALVE
  • SPRING, ORIFICE CONTROL VALVE
3
  • ROLLER (6X16)
4
  • SHAFT, OIL PUMP GEAR - $6.50
12
  • VALVE, REGULATOR - $24.37
32
  • BALL, STEEL (#6) (3/16) - $0.20
32
  • BALL, STEEL (#6) (3/16) - $0.20
32
  • BALL, STEEL (#6) (3/16) - $0.20
26
  • BOLT, FLANGE (6X30) - $0.86
26
  • BOLT, FLANGE (6X30) - $0.86
22
  • CAP, TORQUE CONVERTER CHECK VALVE
29
  • BOLT, HEX. (5X12) - $0.40
30
  • PIN, DOWEL (8X14) - $0.84
6
  • BODY SUB-ASSY., MAIN VALVE
31
  • BOLT, FLANGE (6X60) - $0.86
18
  • SPRING, CHECK VALVE
13
  • SPRING A, REGULATOR VALVE - $3.55
No. Part # Part # / Description Qty Req. List Price Price
1 22741-PA9-000 22741-PA9-000 / PIPE, LOW CLUTCH

1 - -
2 24461-PA9-010 24461-PA9-010 / SPRING, ROLLER

1 $4.80 $3.46
3 24471-612-000 24471-612-000 / ROLLER (6X16)

2 - -
4 25145-PA9-010 25145-PA9-010 / SHAFT, OIL PUMP GEAR

1 $9.03 $6.50
6 27105-PA9-305 27105-PA9-305 / BODY SUB-ASSY., MAIN VALVE

1 - -
7 27112-PA9-010 27112-PA9-010 / PLATE, MAIN SEPARATING

1 - -
8 27122-PA9-000 27122-PA9-000 / COVER, SHIFT VALVE

2 $6.40 $4.61
9 27124-PA9-000 27124-PA9-000 / PLATE, VALVE STOPPER

1 - -
10 27200-PA9-020 27200-PA9-020 / REGULATOR ASSY.

1 - -
11 27211-PA9-010 27211-PA9-010 / BODY, REGULATOR VALVE

1 - -
12 27221-PC9-000 27221-PC9-000 / VALVE, REGULATOR

1 $33.85 $24.37
13 27231-PA9-000 27231-PA9-000 / SPRING A, REGULATOR VALVE

1 $4.93 $3.55
14 27232-PA9-000 27232-PA9-000 / SPRING B, REGULATOR VALVE

1 $3.97 $2.86
15 27233-PA9-000 27233-PA9-000 / SPRING, REACTION STATOR

1 $14.03 $10.10
16 27246-PA9-000 27246-PA9-000 / CAP, REGULATOR SPRING

1 - -
17 27247-PA9-000 27247-PA9-000 / SEAT, REACTION SPRING

1 - -
18 27255-639-010 27255-639-010 / SPRING, CHECK VALVE

1 - -
19 27256-PA9-000 27256-PA9-000 / VALVE, RELIEF

1 $13.65 $9.83
20 27256-639-000 27256-639-000 / VALVE, TORQUE CONVERTER CHECK

1 $4.43 $3.19
21 27257-PA9-000 27257-PA9-000 / SPRING, RELIEF VALVE

1 - -
22 27257-591-020 27257-591-020 / CAP, TORQUE CONVERTER CHECK VALVE

1 - -
23 27417-PA9-010 27417-PA9-010 / VALVE, ORIFICE CONTROL

1 - -
23 27417-PA9-000 27417-PA9-000 / VALVE, ORIFICE CONTROL

1 - -
24 27418-PA9-020 27418-PA9-020 / SPRING, ORIFICE CONTROL VALVE

1 - -
24 27418-PA9-010 27418-PA9-010 / SPRING, ORIFICE CONTROL VALVE

1 - -
25 27421-PA9-000 27421-PA9-000 / VALVE, MANUAL

1 - -
26 95701-06030-08 95701-06030-08 / BOLT, FLANGE (6X30)

4 $1.20 $0.86
27 90089-591-020 90089-591-020 / BOLT, STOPPER (6MM)

1 - -
28 90436-PA9-000 90436-PA9-000 / WASHER, LOCK (5MM)

1 $3.30 $2.38
29 92101-05012-0G 92101-05012-0G / BOLT, HEX. (5X12)

5 $0.55 $0.40
30 94301-08140 94301-08140 / PIN, DOWEL (8X14)

3 $1.17 $0.84
31 95701-06060-08 95701-06060-08 / BOLT, FLANGE (6X60)

6 $1.20 $0.86
32 96211-06000 96211-06000 / BALL, STEEL (#6) (3/16)

5 $0.28 $0.20
