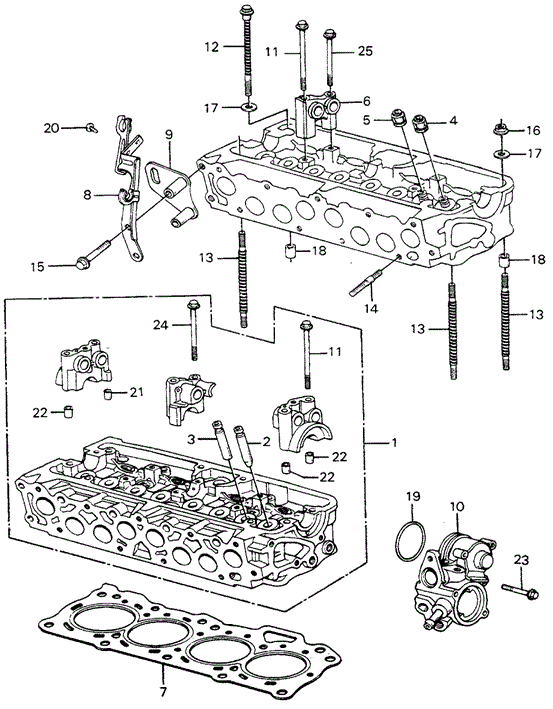

CYLINDER HEAD ASSY. in ENGINE/CYLINDER HEAD (4) for 1982 Honda CIVIC HATCHBACK

CYLINDER HEAD ASSY. in ENGINE/CYLINDER HEAD (4) for 1982 Honda CIVIC HATCHBACK #1
1
  • CYLINDER HEAD ASSY.
20
  • SCREW, TAPPING (5X12) - $0.61
10
  • HOLDER, DISTRIBUTOR
5
  • SEAL B, VALVE STEM (ARAI)
  • SEAL B, VALVE STEM (NIPPON)
24
  • BOLT, FLANGE (6X70) - $0.94
19
  • O-RING (53.8X3.1) - $2.50
18
  • PIN, DOWEL (14X20) - $0.98
7
  • GASKET, CYLINDER HEAD
9
  • BRACKET, SPACER
21
  • PIN, DOWEL (8X14) - $0.84
11
  • BOLT, FLANGE (8X77) - $3.40
2
  • GUIDE, VALVE
8
  • STAY, SHOT AIR VALVE
  • STAY, SHOT AIR VALVE
  • STAY, SHOT AIR VALVE
13
  • BOLT, STUD (10X126)
17
  • WASHER, SPECIAL (23x11x2.3) - $2.66
22
  • PIN, DOWEL (10X16) - $0.96
17
  • WASHER, SPECIAL (23x11x2.3) - $2.66
23
  • BOLT, FLANGE (6X45) - $0.86
18
  • PIN, DOWEL (14X20) - $0.98
4
  • SEAL, VALVE STEM (NOK) - $5.50
  • SEAL A, VALVE STEM (ARAI) - $2.47
22
  • PIN, DOWEL (10X16) - $0.96
13
  • BOLT, STUD (10X126)
16
  • NUT, FLANGE (10MM) - $0.78
25
  • BOLT, FLANGE (6X65) - $0.83
14
  • BOLT, STUD (8X48)
22
  • PIN, DOWEL (10X16) - $0.96
13
  • BOLT, STUD (10X126)
11
  • BOLT, FLANGE (8X77) - $3.40
6
  • HOLDER, CAM
3
  • GUIDE, EX. VALVE
12
  • BOLT, FLANGE (10X112)
15
  • BOLT, FLANGE (10X45) - $1.08
No. Part # Part # / Description Qty Req. List Price Price
1 12010-PA5-010 12010-PA5-010 / CYLINDER HEAD ASSY.

1 - -
2 12204-PA6-305 12204-PA6-305 / GUIDE, VALVE

4 - -
3 12205-657-315 12205-657-315 / GUIDE, EX. VALVE

4 - -
4 12209-MB9-003 12209-MB9-003 / SEAL, VALVE STEM (NOK)

4 $8.33 $5.50
4 12210-PD2-003 12210-PD2-003 / SEAL A, VALVE STEM (ARAI)

4 $3.75 $2.47
5 12211-PA6-003 12211-PA6-003 / SEAL B, VALVE STEM (ARAI)

4 - -
5 12211-PA6-003 12211-PA6-003 / SEAL B, VALVE STEM (NIPPON)

4 - -
6 12232-689-000 12232-689-000 / HOLDER, CAM

2 - -
7 12251-PA0-010 12251-PA0-010 / GASKET, CYLINDER HEAD

1 - -
8 17341-PA6-671 17341-PA6-671 / STAY, SHOT AIR VALVE

1 - -
8 17341-PA6-680 17341-PA6-680 / STAY, SHOT AIR VALVE

1 - -
8 17341-PA6-691 17341-PA6-691 / STAY, SHOT AIR VALVE

1 - -
9 17342-671-000 17342-671-000 / BRACKET, SPACER

1 - -
10 30150-PB1-921 30150-PB1-921 / HOLDER, DISTRIBUTOR

1 - -
11 90005-634-003 90005-634-003 / BOLT, FLANGE (8X77)

5 $4.71 $3.40
12 90005-671-003 90005-671-003 / BOLT, FLANGE (10X112)

7 - -
13 90024-PA5-003 90024-PA5-003 / BOLT, STUD (10X126)

3 - -
14 90062-657-310 90062-657-310 / BOLT, STUD (8X48)

10 - -
15 95801-10045-08 95801-10045-08 / BOLT, FLANGE (10X45)

2 $1.50 $1.08
16 94050-10000 94050-10000 / NUT, FLANGE (10MM)

3 $1.08 $0.78
17 90438-611-010 90438-611-010 / WASHER, SPECIAL (23x11x2.3)

10 $3.69 $2.66
18 94301-14200 94301-14200 / PIN, DOWEL (14X20)

2 $1.37 $0.98
19 91302-657-000 91302-657-000 / O-RING (53.8X3.1)

1 $3.47 $2.50
20 93903-25280 93903-25280 / SCREW, TAPPING (5X12)

2 $0.85 $0.61
21 94301-08140 94301-08140 / PIN, DOWEL (8X14)

1 $1.17 $0.84
22 94301-10160 94301-10160 / PIN, DOWEL (10X16)

5 $1.33 $0.96
23 95701-06045-08 95701-06045-08 / BOLT, FLANGE (6X45)

1 $1.20 $0.86
24 95701-06070-08 95701-06070-08 / BOLT, FLANGE (6X70)

1 $1.30 $0.94
25 95722-06065 95722-06065 / BOLT, FLANGE (6X65)

2 $1.15 $0.83
