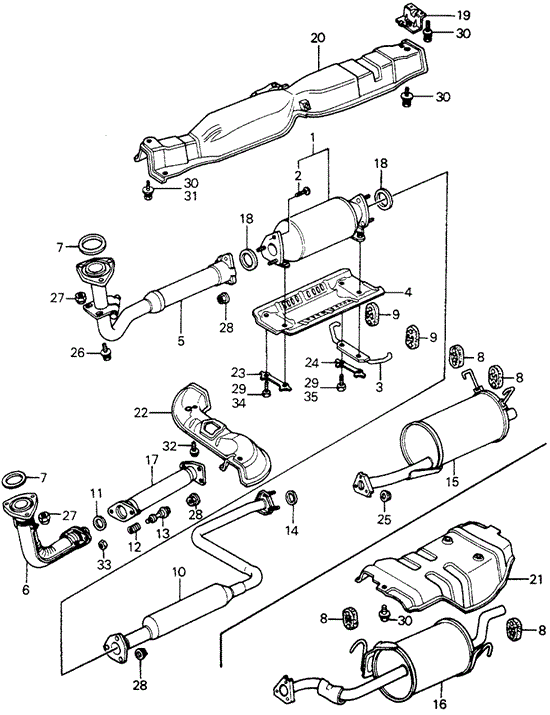

CONVERTER in ELECTRICAL / EXHAUST / HEATER / FUEL/EXHAUST SYSTEM (2) for 1982 Honda CIVIC HATCHBACK

CONVERTER in ELECTRICAL / EXHAUST / HEATER / FUEL/EXHAUST SYSTEM (2) for 1982 Honda CIVIC HATCHBACK #1
8
  • RUBBER, MUFFLER MOUNTING (74X45X22) - $7.31
4
  • COVER (LOWER)
20
  • PLATE, FR. FLOOR HEAT BAFFLE
7
  • GASKET, EX. PIPE (ISHINO GASKET) - $4.98
28
  • NUT, SELF-LOCK (10MM) - $0.34
28
  • NUT, SELF-LOCK (10MM) - $0.34
22
  • PLATE, TANK HEAT BAFFLE
3
  • BRACKET, CONVERTER - $30.26
27
  • NUT, SELF-LOCK (10MM) - $0.42
  • NUT, SELF-LOCK (10MM) - $2.36
10
  • PIPE B, EX.
8
  • RUBBER, MUFFLER MOUNTING (74X45X22) - $7.31
19
  • BRACKET, TANK HEAT BAFFLE
30
  • BOLT-WASHER (6X12) - $0.67
18
  • GASKET, PRE CHAMBER (52.5MM-53.5MM) - $7.57
32
  • SCREW, TAPPING (6X12) - $0.49
2
  • BOLT, CONVERTER - $9.28
30
  • BOLT-WASHER (6X12) - $0.67
8
  • RUBBER, MUFFLER MOUNTING (74X45X22) - $7.31
30
  • BOLT-WASHER (6X12) - $0.67
5
  • PIPE A, EX.
15
  • MUFFLER, EX.
18
  • GASKET, PRE CHAMBER (52.5MM-53.5MM) - $7.57
28
  • NUT, SELF-LOCK (10MM) - $0.34
9
  • RUBBER, MUFFLER MOUNTING (74X53X22) - $7.31
7
  • GASKET, EX. PIPE (ISHINO GASKET) - $4.98
34
  • BOLT, FLANGE (8X12) - $0.71
27
  • NUT, SELF-LOCK (10MM) - $0.42
  • NUT, SELF-LOCK (10MM) - $2.36
9
  • RUBBER, MUFFLER MOUNTING (74X53X22) - $7.31
1
  • CONVERTER
25
  • NUT, SELF-LOCK (8MM) (CLINCH) - $0.30
35
  • BOLT, FLANGE (8X16) - $0.71
31
  • SCREW, TAPPING (6X10)
30
  • BOLT-WASHER (6X12) - $0.67
8
  • RUBBER, MUFFLER MOUNTING (74X45X22) - $7.31
14
  • GASKET, MUFFLER - $6.94
No. Part # Part # / Description Qty Req. List Price Price
1 18160-PA6-U01 18160-PA6-U01 / CONVERTER

1 - -
2 18176-P08-003 18176-P08-003 / BOLT, CONVERTER

6 $12.88 $9.28
3 18177-PA6-010 18177-PA6-010 / BRACKET, CONVERTER

1 $42.03 $30.26
4 18181-PA6-663 18181-PA6-663 / COVER (LOWER)

1 - -
5 18210-SA0-663 18210-SA0-663 / PIPE A, EX.

1 - -
7 18212-SA0-003 18212-SA0-003 / GASKET, EX. PIPE (ISHINO GASKET)

1 $6.92 $4.98
8 18215-SA0-000 18215-SA0-000 / RUBBER, MUFFLER MOUNTING (74X45X22)

2 $10.15 $7.31
9 18215-671-000 18215-671-000 / RUBBER, MUFFLER MOUNTING (74X53X22)

2 $10.15 $7.31
10 18220-SA0-965 18220-SA0-965 / PIPE B, EX.

1 - -
14 18303-SE1-S01 18303-SE1-S01 / GASKET, MUFFLER

1 $9.63 $6.94
15 18307-SA0-966 18307-SA0-966 / MUFFLER, EX.

1 - -
18 18393-SH3-S00 18393-SH3-S00 / GASKET, PRE CHAMBER (52.5MM-53.5MM)

2 $10.52 $7.57
19 70268-SA0-020 70268-SA0-020 / BRACKET, TANK HEAT BAFFLE

1 - -
20 72201-SA0-964 72201-SA0-964 / PLATE, FR. FLOOR HEAT BAFFLE

1 - -
22 72206-SA0-010 72206-SA0-010 / PLATE, TANK HEAT BAFFLE

1 - -
25 90115-659-003 90115-659-003 / NUT, SELF-LOCK (8MM) (CLINCH)

3 $0.42 $0.30
27 90212-SA5-003 90212-SA5-003 / NUT, SELF-LOCK (10MM)

3 $0.58 $0.42
27 90303-692-003 90303-692-003 / NUT, SELF-LOCK (10MM)

3 $3.28 $2.36
28 90212-671-005 90212-671-005 / NUT, SELF-LOCK (10MM)

6 $0.47 $0.34
30 93405-06012-08 93405-06012-08 / BOLT-WASHER (6X12)

3 $0.93 $0.67
31 93904-26020 93904-26020 / SCREW, TAPPING (6X10)

4 - -
32 93904-26120 93904-26120 / SCREW, TAPPING (6X12)

1 $0.68 $0.49
34 95701-08012-08 95701-08012-08 / BOLT, FLANGE (8X12)

2 $0.98 $0.71
35 95701-08016-08 95701-08016-08 / BOLT, FLANGE (8X16)

2 $0.98 $0.71
