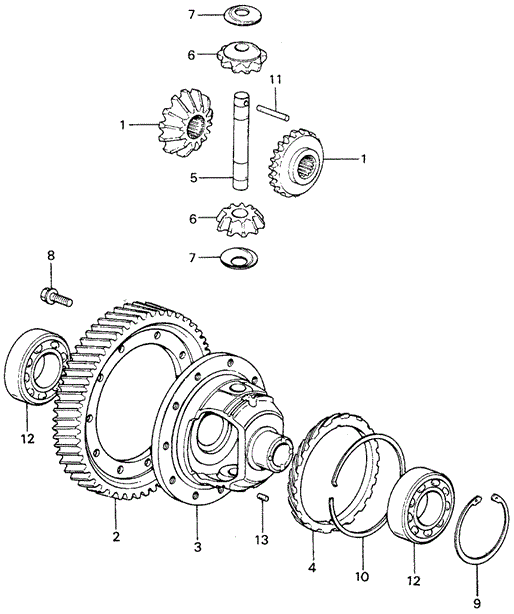

GEAR, FINAL DRIVEN in TRANSMISSION - HONDAMATIC/HMT DIFFERENTIAL GEAR (2) for 1982 Honda CIVIC 5-DOOR

GEAR, FINAL DRIVEN in TRANSMISSION - HONDAMATIC/HMT DIFFERENTIAL GEAR (2) for 1982 Honda CIVIC 5-DOOR #1
2
  • GEAR, FINAL DRIVEN
8
  • BOLT, FLANGE (10MM) - $3.43
6
  • GEAR, DIFFERENTIAL PINION - $43.04
3
  • CASE, DIFFERENTIAL
1
  • GEAR, DIFFERENTIAL SIDE
5
  • SHAFT, PINION - $29.05
12
  • BEARING, RADIAL BALL (6207) - $19.18
11
  • PIN, SPRING (4X28) - $0.86
1
  • GEAR, DIFFERENTIAL SIDE
7
  • WASHER C, DIFFERENTIAL PINION (0.9MM) - $4.28
  • WASHER D, DIFFERENTIAL PINION (1.0MM) - $4.28
  • WASHER A, DIFFERENTIAL PINION (0.7MM) - $4.28
  • WASHER B, DIFFERENTIAL PINION (0.8MM) - $4.28
6
  • GEAR, DIFFERENTIAL PINION - $43.04
12
  • BEARING, RADIAL BALL (6207) - $19.18
13
  • ROLLER (5X10) - $0.36
4
  • GEAR, SPEEDOMETER DRIVE - $40.10
7
  • WASHER C, DIFFERENTIAL PINION (0.9MM) - $4.28
  • WASHER D, DIFFERENTIAL PINION (1.0MM) - $4.28
  • WASHER A, DIFFERENTIAL PINION (0.7MM) - $4.28
  • WASHER B, DIFFERENTIAL PINION (0.8MM) - $4.28
10
  • CIRCLIP (OUTER) (90MM) - $5.93
9
  • RING, SNAP (72MM) (2.95MM)
  • RING, SNAP (72MM) (2.85MM)
  • RING, SNAP (72MM) (2.65MM)
  • RING, SNAP (72MM) (2.45MM)
  • RING, SNAP (72MM) (2.55MM)
  • RING, SNAP (72MM) (2.75MM)
No. Part # Part # / Description Qty Req. List Price Price
1 41221-PB7-000 41221-PB7-000 / GEAR, DIFFERENTIAL SIDE

2 - -
2 41233-PA9-670 41233-PA9-670 / GEAR, FINAL DRIVEN

1 - -
3 41311-PA9-000 41311-PA9-000 / CASE, DIFFERENTIAL

1 - -
4 41312-PA9-010 41312-PA9-010 / GEAR, SPEEDOMETER DRIVE

1 $55.70 $40.10
5 41321-PL3-T00 41321-PL3-T00 / SHAFT, PINION

1 $40.35 $29.05
6 41341-PC9-010 41341-PC9-010 / GEAR, DIFFERENTIAL PINION

2 $59.78 $43.04
7 41353-689-000 41353-689-000 / WASHER C, DIFFERENTIAL PINION (0.9MM)

2 $5.95 $4.28
7 41354-689-000 41354-689-000 / WASHER D, DIFFERENTIAL PINION (1.0MM)

2 $5.95 $4.28
7 41351-689-000 41351-689-000 / WASHER A, DIFFERENTIAL PINION (0.7MM)

2 $5.95 $4.28
7 41352-689-000 41352-689-000 / WASHER B, DIFFERENTIAL PINION (0.8MM)

2 $5.95 $4.28
8 90003-PA9-003 90003-PA9-003 / BOLT, FLANGE (10MM)

10 $4.77 $3.43
9 90419-634-000 90419-634-000 / RING, SNAP (72MM) (2.95MM)

1 - -
9 90418-634-000 90418-634-000 / RING, SNAP (72MM) (2.85MM)

1 - -
9 90416-634-000 90416-634-000 / RING, SNAP (72MM) (2.65MM)

1 - -
9 90414-634-000 90414-634-000 / RING, SNAP (72MM) (2.45MM)

1 - -
9 90415-634-000 90415-634-000 / RING, SNAP (72MM) (2.55MM)

1 - -
9 90417-634-000 90417-634-000 / RING, SNAP (72MM) (2.75MM)

1 - -
10 90608-PA9-000 90608-PA9-000 / CIRCLIP (OUTER) (90MM)

1 $8.23 $5.93
11 94305-40282 94305-40282 / PIN, SPRING (4X28)

1 $1.20 $0.86
12 96100-62070-00 96100-62070-00 / BEARING, RADIAL BALL (6207)

2 $26.63 $19.18
13 96220-50100 96220-50100 / ROLLER (5X10)

1 $0.50 $0.36
