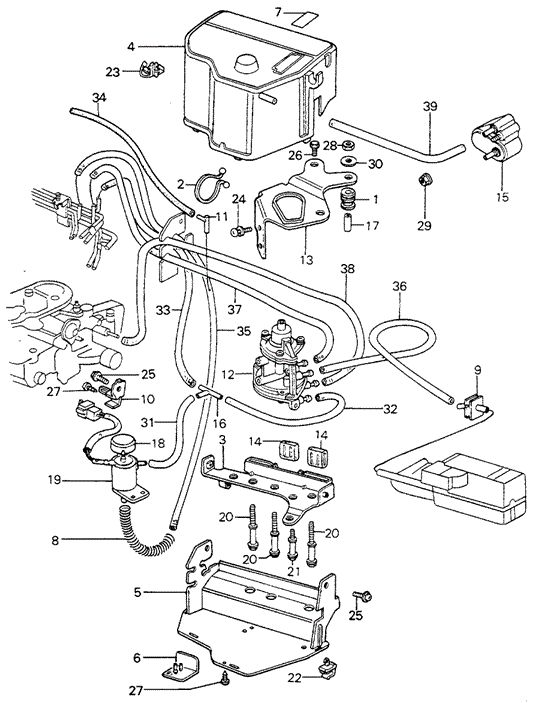

VALVE ASSY., EGR CONTROL in ENGINE/NO. 2 CONTROL BOX (3) for 1982 Honda CIVIC 5-DOOR

VALVE ASSY., EGR CONTROL in ENGINE/NO. 2 CONTROL BOX (3) for 1982 Honda CIVIC 5-DOOR #1
3
  • BASE, CONTROL BOX (NO.2)
22
  • CLAMP, TUBE (3.5) - $4.02
27
  • SCREW, TAPPING (3X8) - $0.40
26
  • SCREW-WASHER (6X25)
14
  • RUBBER, CUSHION - $2.35
20
  • BOLT, SPECIAL (6x43.5)
18
  • FILTER ASSY., SOLENOID VALVE
38
  • BULK HOSE, VACUUM (4.5X1000) - $8.27
8
  • PROTECTOR, TUBE
16
  • JOINT, THREE WAY - $5.32
19
  • VALVE ASSY., EGR CUT SOLENOID
1
  • RUBBER, AIR JET CONTROL MOUNTING
27
  • SCREW, TAPPING (3X8) - $0.40
12
  • VALVE ASSY., EGR CONTROL
25
  • SCREW-WASHER (6X12) - $0.58
24
  • SCREW-WASHER (5X8) - $0.46
10
  • STOPPER, CONNECTOR
39
  • BULK HOSE, VACUUM (5.5X8000) - $66.74
37
  • BULK HOSE, VACUUM (4.5X1000) - $8.27
15
  • FILTER ASSY. (A2)
4
  • COVER, CONTROL BOX (UPPER) (NO.2)
36
  • BULK HOSE, VACUUM (4.5X1000) - $8.27
28
  • NUT, HEX. (6MM) - $0.50
7
  • LABEL, CONTROL BOX (NO.2)
20
  • BOLT, SPECIAL (6x43.5)
25
  • SCREW-WASHER (6X12) - $0.58
13
  • BRACKET, CONTROL VALVE
6
  • RUBBER, PROTECTOR
31
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
20
  • BOLT, SPECIAL (6x43.5)
17
  • COLLAR, CONTROL VALVE - $2.47
14
  • RUBBER, CUSHION - $2.35
35
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
33
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
30
  • WASHER, PLAIN (6MM) - $0.31
21
  • BOLT, SPECIAL (6X27)
5
  • COVER, CONTROL BOX (LOWER) (NO.2)
9
  • JOINT, CONTROL BOX (NO.2)
32
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
No. Part # Part # / Description Qty Req. List Price Price
1 16807-PA6-000 16807-PA6-000 / RUBBER, AIR JET CONTROL MOUNTING

3 - -
3 18721-PA6-661 18721-PA6-661 / BASE, CONTROL BOX (NO.2)

1 - -
4 18722-PA6-661 18722-PA6-661 / COVER, CONTROL BOX (UPPER) (NO.2)

1 - -
5 18723-PA6-661 18723-PA6-661 / COVER, CONTROL BOX (LOWER) (NO.2)

1 - -
6 18726-PA6-661 18726-PA6-661 / RUBBER, PROTECTOR

1 - -
7 18727-PA6-671 18727-PA6-671 / LABEL, CONTROL BOX (NO.2)

1 - -
8 18729-PB1-000 18729-PB1-000 / PROTECTOR, TUBE

1 - -
9 18731-PA6-661 18731-PA6-661 / JOINT, CONTROL BOX (NO.2)

1 - -
10 18732-PA6-661 18732-PA6-661 / STOPPER, CONNECTOR

1 - -
12 18740-PA6-665 18740-PA6-665 / VALVE ASSY., EGR CONTROL

1 - -
13 18743-PA6-661 18743-PA6-661 / BRACKET, CONTROL VALVE

1 - -
14 18804-PB2-681 18804-PB2-681 / RUBBER, CUSHION

2 $3.27 $2.35
15 18850-PA6-003 18850-PA6-003 / FILTER ASSY. (A2)

1 - -
16 36010-PA6-004 36010-PA6-004 / JOINT, THREE WAY

1 $7.38 $5.32
17 36052-657-300 36052-657-300 / COLLAR, CONTROL VALVE

3 $3.43 $2.47
18 36138-PA6-661 36138-PA6-661 / FILTER ASSY., SOLENOID VALVE

1 - -
19 36160-PA6-662 36160-PA6-662 / VALVE ASSY., EGR CUT SOLENOID

1 - -
20 90005-PB2-000 90005-PB2-000 / BOLT, SPECIAL (6x43.5)

3 - -
21 90006-PB1-000 90006-PB1-000 / BOLT, SPECIAL (6X27)

1 - -
22 90601-PB1-003 90601-PB1-003 / CLAMP, TUBE (3.5)

1 $5.58 $4.02
24 93892-05008-08 93892-05008-08 / SCREW-WASHER (5X8)

3 $0.63 $0.46
25 93894-06012-08 93894-06012-08 / SCREW-WASHER (6X12)

2 $0.80 $0.58
26 93894-06025-08 93894-06025-08 / SCREW-WASHER (6X25)

2 - -
27 93903-32120 93903-32120 / SCREW, TAPPING (3X8)

2 $0.55 $0.40
28 94002-06080-0S 94002-06080-0S / NUT, HEX. (6MM)

1 $0.70 $0.50
30 94103-06800 94103-06800 / WASHER, PLAIN (6MM)

1 $0.43 $0.31
35 95005-35008-10M 95005-35008-10M / BULK HOSE, VACUUM (3.5X8000)

1 $52.80 $38.02
38 95005-45001-10M 95005-45001-10M / BULK HOSE, VACUUM (4.5X1000)

1 $11.48 $8.27
39 95005-55008-10M 95005-55008-10M / BULK HOSE, VACUUM (5.5X8000)

1 $92.70 $66.74
