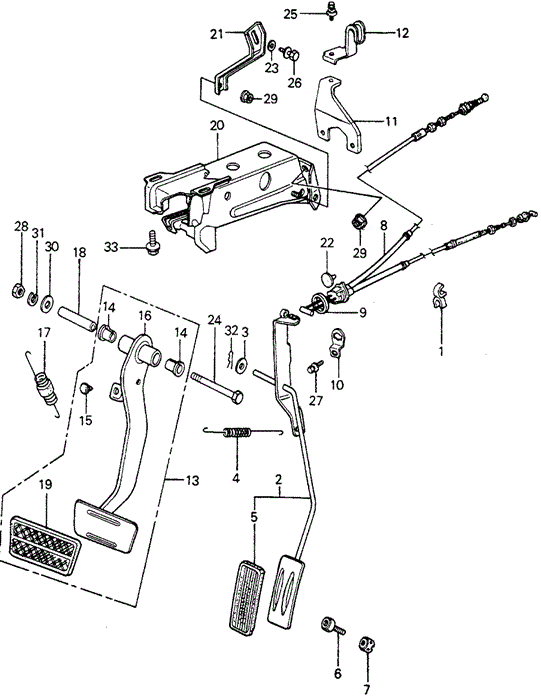

BRACKET, PEDAL in CHASSIS/PEDALS (2) for 1982 Honda CIVIC 5-DOOR

BRACKET, PEDAL in CHASSIS/PEDALS (2) for 1982 Honda CIVIC 5-DOOR #1
33
  • BOLT, FLANGE (8X14) - $0.71
24
  • BOLT, HEX. (10X75) - $1.10
3
  • WASHER, ACCELERATOR PEDAL - $1.50
14
  • BUSH, PEDAL - $4.85
8
  • WIRE, THROTTLE
6
  • BOLT, ACCELERATOR STOPPER
29
  • NUT-WASHER (8MM) - $0.31
18
  • COLLAR, PEDAL - $4.85
14
  • BUSH, PEDAL - $4.85
28
  • NUT, HEX. (10MM) - $0.59
25
  • BOLT-WASHER (6X12) - $0.67
7
  • BASE A, ACCELERATOR STOPPER
2
  • PEDAL ASSY., ACCELERATOR
15
  • PAD, PEDAL STOPPER - $1.75
  • PAD, PEDAL STOPPER - $1.75
17
  • SPRING ASSY., PEDAL RETURN
31
  • WASHER, SPRING (10MM) - $0.46
4
  • SPRING, ACCELERATOR PEDAL
11
  • STAY, WIRE CLAMP
12
  • CLAMP, THROTTLE WIRE
13
  • PEDAL ASSY., BRAKE
19
  • COVER, BRAKE PEDAL - $4.63
20
  • BRACKET, PEDAL
30
  • WASHER, PLAIN (10MM) - $0.73
32
  • PIN, SPLIT (2.5X18) - $0.96
5
  • COVER, ACCELERATOR PEDAL - $5.78
9
  • SEAL, THROTTLE CABLE - $3.91
29
  • NUT-WASHER (8MM) - $0.31
22
  • COVER, DOOR SWITCH - $2.44
No. Part # Part # / Description Qty Req. List Price Price
2 17800-SA0-711 17800-SA0-711 / PEDAL ASSY., ACCELERATOR

1 - -
3 17812-SA7-010 17812-SA7-010 / WASHER, ACCELERATOR PEDAL

2 $2.08 $1.50
4 17814-SA5-000 17814-SA5-000 / SPRING, ACCELERATOR PEDAL

1 - -
5 17816-SK7-000 17816-SK7-000 / COVER, ACCELERATOR PEDAL

1 $8.03 $5.78
6 17833-SA0-000 17833-SA0-000 / BOLT, ACCELERATOR STOPPER

1 - -
7 17835-SA0-000 17835-SA0-000 / BASE A, ACCELERATOR STOPPER

1 - -
8 17910-SA0-710 17910-SA0-710 / WIRE, THROTTLE

1 - -
9 17921-SA4-730 17921-SA4-730 / SEAL, THROTTLE CABLE

1 $5.43 $3.91
11 17930-SA0-710 17930-SA0-710 / STAY, WIRE CLAMP

1 - -
12 17931-SA0-710 17931-SA0-710 / CLAMP, THROTTLE WIRE

1 - -
13 46500-SA0-710 46500-SA0-710 / PEDAL ASSY., BRAKE

1 - -
14 46504-679-300 46504-679-300 / BUSH, PEDAL

2 $6.73 $4.85
15 46505-SA5-000 46505-SA5-000 / PAD, PEDAL STOPPER

1 $2.43 $1.75
15 46505-SA5-010 46505-SA5-010 / PAD, PEDAL STOPPER

1 $2.43 $1.75
17 46530-SA0-900 46530-SA0-900 / SPRING ASSY., PEDAL RETURN

1 - -
18 46535-692-000 46535-692-000 / COLLAR, PEDAL

1 $6.73 $4.85
19 46545-692-980 46545-692-980 / COVER, BRAKE PEDAL

1 $6.43 $4.63
20 46590-SA0-713 46590-SA0-713 / BRACKET, PEDAL

1 - -
22 75891-611-000 75891-611-000 / COVER, DOOR SWITCH

1 $3.38 $2.44
24 92200-10075-0H 92200-10075-0H / BOLT, HEX. (10X75)

1 $1.53 $1.10
25 93403-06012-08 93403-06012-08 / BOLT-WASHER (6X12)

1 $0.93 $0.67
28 94001-10080-0S 94001-10080-0S / NUT, HEX. (10MM)

1 $0.82 $0.59
29 94070-08080 94070-08080 / NUT-WASHER (8MM)

5 $0.43 $0.31
30 94101-10800 94101-10800 / WASHER, PLAIN (10MM)

1 $1.02 $0.73
31 94111-10800 94111-10800 / WASHER, SPRING (10MM)

1 $0.63 $0.46
32 94201-25180 94201-25180 / PIN, SPLIT (2.5X18)

1 $1.33 $0.96
33 95701-08014-08 95701-08014-08 / BOLT, FLANGE (8X14)

2 $0.98 $0.71
