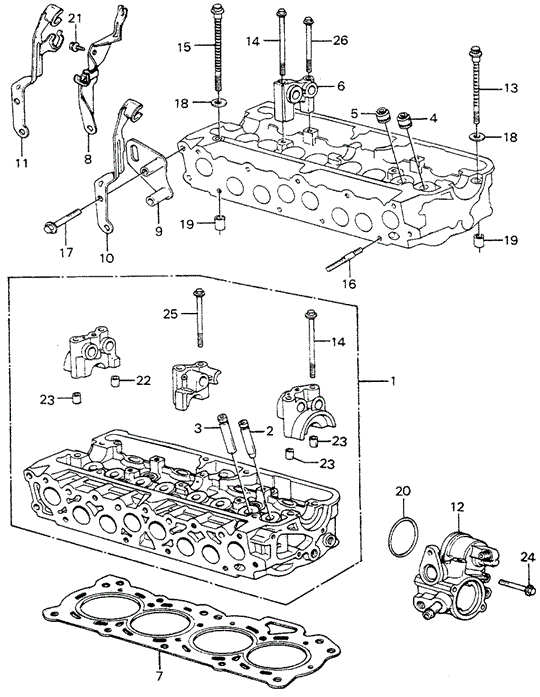

CYLINDER HEAD ASSY. in ENGINE/CYLINDER HEAD (2) for 1981 Honda CIVIC HATCHBACK

CYLINDER HEAD ASSY. in ENGINE/CYLINDER HEAD (2) for 1981 Honda CIVIC HATCHBACK #1
22
  • PIN, DOWEL (8X14) - $0.84
23
  • PIN, DOWEL (10X16) - $0.96
23
  • PIN, DOWEL (10X16) - $0.96
4
  • SEAL, VALVE STEM (NOK) - $5.50
21
  • SCREW, TAPPING (5X12) - $0.61
2
  • GUIDE, VALVE
16
  • BOLT, STUD (8X48)
5
  • SEAL B, VALVE STEM (NIPPON)
18
  • WASHER, SPECIAL (23x11x2.3) - $2.66
9
  • BRACKET, SPACER
14
  • BOLT, FLANGE (8X77) - $3.40
15
  • BOLT, FLANGE (10X112)
20
  • O-RING (53.8X3.1) - $2.50
24
  • BOLT, FLANGE (6X40) - $0.74
13
  • BOLT, FLANGE (10X102)
11
  • CLAMP, TUBE
1
  • CYLINDER HEAD ASSY.
3
  • GUIDE, EX. VALVE
6
  • HOLDER, CAM
18
  • WASHER, SPECIAL (23x11x2.3) - $2.66
17
  • BOLT, FLANGE (10X45) - $1.08
25
  • BOLT, FLANGE (6X70) - $0.94
10
  • CLAMP, MASTER POWER HOSE
19
  • PIN, DOWEL (14X20) - $0.98
19
  • PIN, DOWEL (14X20) - $0.98
14
  • BOLT, FLANGE (8X77) - $3.40
23
  • PIN, DOWEL (10X16) - $0.96
8
  • STAY, SHOT AIR VALVE
7
  • GASKET, CYLINDER HEAD
26
  • BOLT, FLANGE (6X65) - $0.83
12
  • HOLDER, DISTRIBUTOR
No. Part # Part # / Description Qty Req. List Price Price
1 12010-PA6-020 12010-PA6-020 / CYLINDER HEAD ASSY.

1 - -
2 12204-PA6-305 12204-PA6-305 / GUIDE, VALVE

4 - -
3 12205-657-315 12205-657-315 / GUIDE, EX. VALVE

4 - -
4 12209-MB9-003 12209-MB9-003 / SEAL, VALVE STEM (NOK)

4 $8.33 $5.50
5 12211-PA6-003 12211-PA6-003 / SEAL B, VALVE STEM (NIPPON)

4 - -
6 12232-689-000 12232-689-000 / HOLDER, CAM

2 - -
7 12251-PA6-000 12251-PA6-000 / GASKET, CYLINDER HEAD

1 - -
8 17341-PA6-680 17341-PA6-680 / STAY, SHOT AIR VALVE

1 - -
9 17342-671-000 17342-671-000 / BRACKET, SPACER

1 - -
10 17355-PA6-661 17355-PA6-661 / CLAMP, MASTER POWER HOSE

1 - -
11 17360-PA6-720 17360-PA6-720 / CLAMP, TUBE

1 - -
12 30150-PA0-661 30150-PA0-661 / HOLDER, DISTRIBUTOR

1 - -
13 90004-671-003 90004-671-003 / BOLT, FLANGE (10X102)

1 - -
14 90005-634-003 90005-634-003 / BOLT, FLANGE (8X77)

7 $4.71 $3.40
15 90005-671-003 90005-671-003 / BOLT, FLANGE (10X112)

9 - -
16 90062-657-310 90062-657-310 / BOLT, STUD (8X48)

10 - -
17 95801-10045-08 95801-10045-08 / BOLT, FLANGE (10X45)

2 $1.50 $1.08
18 90438-611-010 90438-611-010 / WASHER, SPECIAL (23x11x2.3)

10 $3.69 $2.66
19 94301-14200 94301-14200 / PIN, DOWEL (14X20)

2 $1.37 $0.98
20 91302-657-000 91302-657-000 / O-RING (53.8X3.1)

1 $3.47 $2.50
21 93903-25280 93903-25280 / SCREW, TAPPING (5X12)

2 $0.85 $0.61
22 94301-08140 94301-08140 / PIN, DOWEL (8X14)

1 $1.17 $0.84
23 94301-10160 94301-10160 / PIN, DOWEL (10X16)

5 $1.33 $0.96
24 95701-06040-08 95701-06040-08 / BOLT, FLANGE (6X40)

1 $1.03 $0.74
25 95701-06070-08 95701-06070-08 / BOLT, FLANGE (6X70)

1 $1.30 $0.94
26 95722-06065 95722-06065 / BOLT, FLANGE (6X65)

2 $1.15 $0.83
