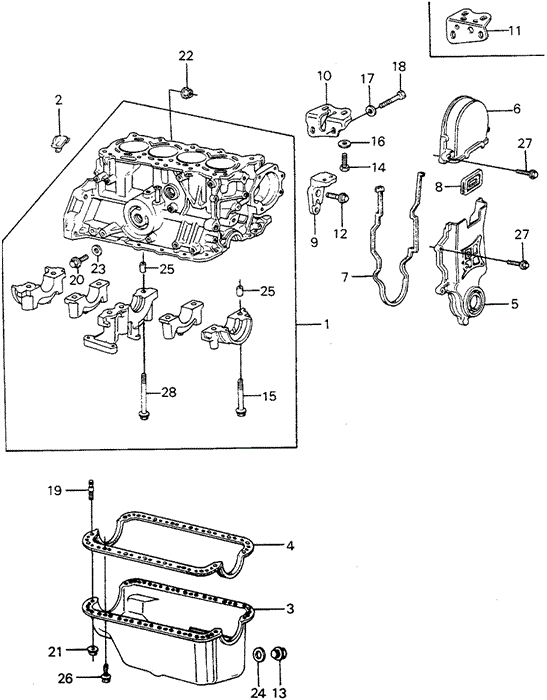

BLOCK ASSY., CYLINDER in ENGINE/CYLINDER BLOCK - OIL PAN (2) for 1981 Honda CIVIC HATCHBACK

BLOCK ASSY., CYLINDER in ENGINE/CYLINDER BLOCK - OIL PAN (2) for 1981 Honda CIVIC HATCHBACK #1
14
  • BOLT, SPECIAL (8X20) - $3.29
15
  • BOLT, FLANGE (10x60)
27
  • BOLT, FLANGE (6X20) - $0.16
25
  • PIN, DOWEL (12X20) - $0.96
26
  • BOLT, FLANGE (6X18) - $0.64
12
  • BOLT, MOUNTING BRACKET - $3.46
9
  • BRACKET, ENGINE MOUNTING
28
  • BOLT, FLANGE (10X80) - $1.30
19
  • BOLT, STUD (6X16) - $0.60
  • BOLT, STUD (6X28) - $1.85
6
  • COVER, TIMING BELT (UPPER)
7
  • RUBBER, SEAL
22
  • NUT, FLANGE (10MM) - $0.76
27
  • BOLT, FLANGE (6X20) - $0.16
16
  • WASHER, SPECIAL (9X24X4) - $3.37
11
  • BRACKET, EX. MANIFOLD
17
  • WASHER, PLAIN (8.5X22X2.3) - $3.24
23
  • WASHER, DRAIN PLUG (12MM) - $0.43
13
  • BOLT, DRAIN PLUG (20MM) - $4.03
4
  • GASKET, OIL PAN (KOUKOKU) - $19.45
3
  • PAN, OIL
20
  • BOLT, DRAIN PLUG (12MM) - $1.54
24
  • WASHER, DRAIN PLUG (20MM) - $0.53
21
  • NUT, FLANGE (6MM) - $0.17
8
  • SEAL C, RUBBER - $6.78
2
  • SEAL, TIMING RUBBER
1
  • BLOCK ASSY., CYLINDER
5
  • COVER, TIMING BELT (LOWER)
25
  • PIN, DOWEL (12X20) - $0.96
18
  • BOLT, HEX. (8X32)
No. Part # Part # / Description Qty Req. List Price Price
1 11000-PA6-010 11000-PA6-010 / BLOCK ASSY., CYLINDER

1 - -
2 11109-PA0-000 11109-PA0-000 / SEAL, TIMING RUBBER

1 - -
3 11200-PA6-030 11200-PA6-030 / PAN, OIL

1 - -
4 11251-PA6-003 11251-PA6-003 / GASKET, OIL PAN (KOUKOKU)

1 $27.02 $19.45
5 11810-PA6-010 11810-PA6-010 / COVER, TIMING BELT (LOWER)

1 - -
6 11820-657-020 11820-657-020 / COVER, TIMING BELT (UPPER)

1 - -
7 11831-PA6-010 11831-PA6-010 / RUBBER, SEAL

1 - -
8 11840-657-010 11840-657-010 / SEAL C, RUBBER

1 $9.42 $6.78
9 11910-PC1-000 11910-PC1-000 / BRACKET, ENGINE MOUNTING

1 - -
11 11940-PA6-010 11940-PA6-010 / BRACKET, EX. MANIFOLD

1 - -
12 90006-642-000 90006-642-000 / BOLT, MOUNTING BRACKET

2 $4.80 $3.46
13 90009-634-000 90009-634-000 / BOLT, DRAIN PLUG (20MM)

1 $5.60 $4.03
14 90010-657-010 90010-657-010 / BOLT, SPECIAL (8X20)

2 $4.57 $3.29
15 90018-657-000 90018-657-000 / BOLT, FLANGE (10x60)

8 - -
16 90451-657-000 90451-657-000 / WASHER, SPECIAL (9X24X4)

2 $4.68 $3.37
17 90509-642-000 90509-642-000 / WASHER, PLAIN (8.5X22X2.3)

2 $4.50 $3.24
18 92000-08032-0H 92000-08032-0H / BOLT, HEX. (8X32)

2 - -
19 92900-06016-0B 92900-06016-0B / BOLT, STUD (6X16)

6 $0.83 $0.60
19 90041-PA5-000 90041-PA5-000 / BOLT, STUD (6X28)

6 $2.57 $1.85
20 92800-12000 92800-12000 / BOLT, DRAIN PLUG (12MM)

1 $2.13 $1.54
21 94050-06080 94050-06080 / NUT, FLANGE (6MM)

6 $0.23 $0.17
22 94050-10080 94050-10080 / NUT, FLANGE (10MM)

1 $1.05 $0.76
23 94109-12000 94109-12000 / WASHER, DRAIN PLUG (12MM)

1 $0.60 $0.43
24 94109-20000 94109-20000 / WASHER, DRAIN PLUG (20MM)

1 $0.73 $0.53
25 94301-12200 94301-12200 / PIN, DOWEL (12X20)

10 $1.33 $0.96
26 95701-06018-08 95701-06018-08 / BOLT, FLANGE (6X18)

12 $0.88 $0.64
27 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

6 $0.22 $0.16
28 95701-10080-00 95701-10080-00 / BOLT, FLANGE (10X80)

2 $1.80 $1.30
