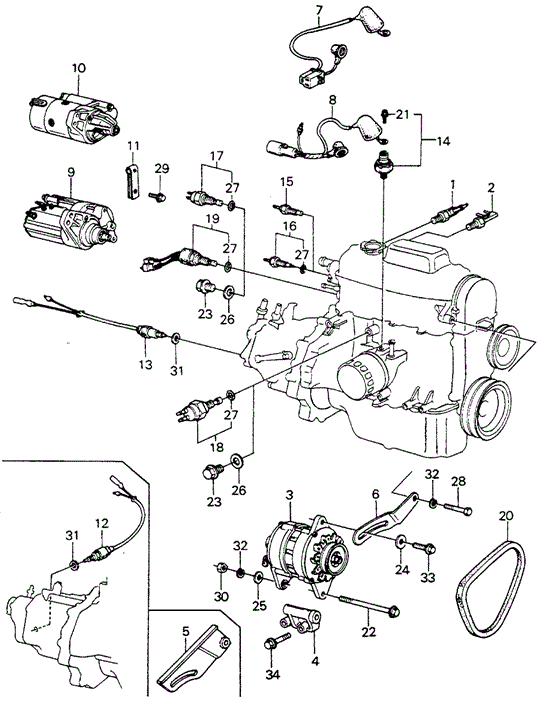

STARTER, CORE ID (9702089-800)(028000-8000) (RMD) in ENGINE/ALTERNATOR - STARTER - TEMPERATURE SENSOR (1) for 1981 Honda CIVIC HATCHBACK

STARTER, CORE ID (9702089-800)(028000-8000) (RMD) in ENGINE/ALTERNATOR - STARTER - TEMPERATURE SENSOR (1) for 1981 Honda CIVIC HATCHBACK #1
28
  • BOLT, HEX. (10X40)
26
  • WASHER, SEALING (16MM)
  • WASHER, SEALING (16MM) - $3.06
22
  • BOLT, ALTERNATOR - $9.53
23
  • BOLT, SEALING (16X9.5) - $4.52
3
  • ALTERNATOR ASSY. (RMD) (DENSO) - $52.63
7
  • WIRE HARNESS, ALTERNATOR
  • WIRE HARNESS, ALTERNATOR
16
  • SENDING UNIT, WATER TEMPERATURE (DENSO) - $36.11
9
  • STARTER, CORE ID (9702089-800)(028000-8000) (RMD) - $112.90
10
  • STARTER MOTOR ASSY. (RMD) (HITACHI) - $69.20
  • STARTER MOTOR ASSY. (S114-305)(HITACHI) - $69.20
  • STARTER, CORE ID (028000-7210)(RMD) (DENSO) - $69.20
30
  • NUT, HEX. (10MM) - $0.59
19
  • SWITCH, THERMO (C-75)
31
  • WASHER, DRAIN PLUG (14MM) - $0.28
32
  • WASHER, SPRING (10MM) - $0.46
27
  • O-RING (13.5X1.4) - $1.33
34
  • BOLT, FLANGE (10X40) - $0.94
18
  • SWITCH, THERMO (B-60)
26
  • WASHER, SEALING (16MM)
  • WASHER, SEALING (16MM) - $3.06
27
  • O-RING (13.5X1.4) - $1.33
27
  • O-RING (13.5X1.4) - $1.33
25
  • WASHER, SPECIAL (23x11x2.3) - $2.66
12
  • SWITCH ASSY., BACK-UP LIGHT - $20.83
33
  • BOLT, FLANGE (8X25) - $0.31
27
  • O-RING (13.5X1.4) - $1.33
32
  • WASHER, SPRING (10MM) - $0.46
20
  • BELT, ALTERNATOR (BANDO)
  • BELT, ALTERNATOR (MITSUBOSHI) - $9.24
1
  • THERMOVALVE (15-B/YELLOW)
4
  • BRACKET, ALTERNATOR
6
  • STAY, ALTERNATOR
14
  • SWITCH, OIL PRESSURE
24
  • WASHER (23X8.3X3.2) - $2.78
31
  • WASHER, DRAIN PLUG (14MM) - $0.28
23
  • BOLT, SEALING (16X9.5) - $4.52
No. Part # Part # / Description Qty Req. List Price Price
1 17360-PA0-661 17360-PA0-661 / THERMOVALVE (15-B/YELLOW)

1 - -
3 31100-PA6-004RM 31100-PA6-004RM / ALTERNATOR ASSY. (RMD) (DENSO)1

1 $73.10 $52.63
4 31112-671-000 31112-671-000 / BRACKET, ALTERNATOR

1 - -
6 31113-671-000 31113-671-000 / STAY, ALTERNATOR

1 - -
7 31120-PA0-661 31120-PA0-661 / WIRE HARNESS, ALTERNATOR

1 - -
7 31120-PA0-660 31120-PA0-660 / WIRE HARNESS, ALTERNATOR

1 - -
9 06312-PB2-006RM 06312-PB2-006RM / STARTER, CORE ID (9702089-800)(028000-8000) (RMD)1

1 $156.80 $112.90
10 31200-PB1-935RM 31200-PB1-935RM / STARTER MOTOR ASSY. (RMD) (HITACHI)1

1 $96.11 $69.20
10 31200-PB1-935RM 31200-PB1-935RM / STARTER MOTOR ASSY. (S114-305)(HITACHI)1

1 $96.11 $69.20
10 31200-PB1-934RM 31200-PB1-934RM / STARTER, CORE ID (028000-7210)(RMD) (DENSO)1

1 $96.11 $69.20
12 35600-PB1-003 35600-PB1-003 / SWITCH ASSY., BACK-UP LIGHT

1 $28.93 $20.83
14 37240-657-305 37240-657-305 / SWITCH, OIL PRESSURE

1 - -
16 37750-611-154 37750-611-154 / SENDING UNIT, WATER TEMPERATURE (DENSO)

1 $50.15 $36.11
18 37763-PB2-003 37763-PB2-003 / SWITCH, THERMO (B-60)

1 - -
19 37780-PA5-681 37780-PA5-681 / SWITCH, THERMO (C-75)

1 - -
20 31110-PA6-912 31110-PA6-912 / BELT, ALTERNATOR (BANDO)

1 - -
20 31110-PA6-911 31110-PA6-911 / BELT, ALTERNATOR (MITSUBOSHI)

1 $12.83 $9.24
22 90057-671-000 90057-671-000 / BOLT, ALTERNATOR

1 $13.23 $9.53
23 90084-657-000 90084-657-000 / BOLT, SEALING (16X9.5)

1 $6.28 $4.52
24 90430-657-000 90430-657-000 / WASHER (23X8.3X3.2)

1 $3.87 $2.78
25 90438-611-010 90438-611-010 / WASHER, SPECIAL (23x11x2.3)

1 $3.69 $2.66
26 90443-283-000 90443-283-000 / WASHER, SEALING (16MM)

1 - -
26 90443-PA5-000 90443-PA5-000 / WASHER, SEALING (16MM)

1 $4.25 $3.06
27 91307-PH7-660 91307-PH7-660 / O-RING (13.5X1.4)

2 $1.85 $1.33
28 90018-PA0-000 90018-PA0-000 / BOLT, HEX. (10X40)

1 - -
30 94001-10080-0S 94001-10080-0S / NUT, HEX. (10MM)

1 $0.82 $0.59
31 94109-14000 94109-14000 / WASHER, DRAIN PLUG (14MM)

1 $0.38 $0.28
32 94111-10800 94111-10800 / WASHER, SPRING (10MM)

2 $0.63 $0.46
33 95701-08025-08 95701-08025-08 / BOLT, FLANGE (8X25)

1 $0.43 $0.31
34 95801-10040-08 95801-10040-08 / BOLT, FLANGE (10X40)

2 $1.30 $0.94
1This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
