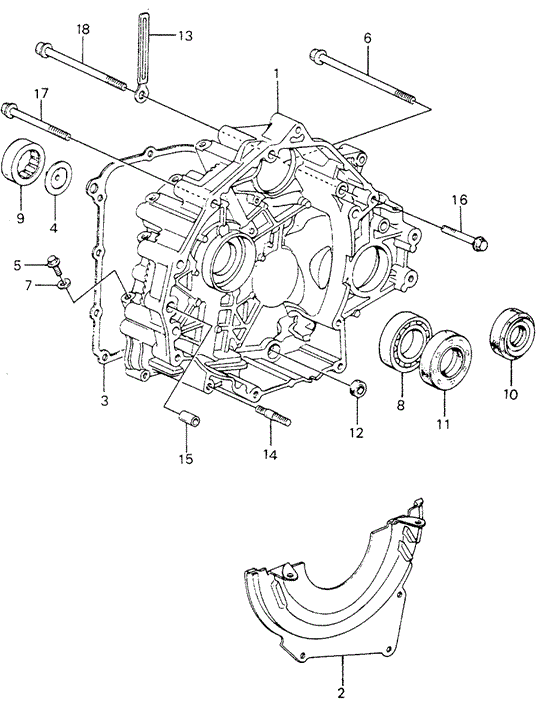

CASE, TORQUE CONVERTER in TRANSMISSION - HONDAMATIC/HMT TORQUE CONVERTER HOUSING (2) for 1981 Honda CIVIC HATCHBACK

CASE, TORQUE CONVERTER in TRANSMISSION - HONDAMATIC/HMT TORQUE CONVERTER HOUSING (2) for 1981 Honda CIVIC HATCHBACK #1
17
  • BOLT, FLANGE (10X90) - $1.73
1
  • CASE, TORQUE CONVERTER
  • CASE, TORQUE CONVERTER
6
  • BOLT, FLANGE (10X150)
  • BOLT, FLANGE (10X157)
5
  • BOLT, SEALING (8MM) - $2.26
7
  • GASKET (8MM) - $1.20
3
  • GASKET, TORQUE CONVERTER CASE - $13.79
  • GASKET, TORQUE CONVERTER CASE
18
  • BOLT, FLANGE (10X125) - $1.99
  • BOLT, FLANGE (10X120) - $1.91
10
  • OIL SEAL (35X68X9) - $12.38
15
  • PIN, DOWEL (14X20) - $0.98
16
  • BOLT, FLANGE (10X60) - $1.08
9
  • BEARING, NEEDLE (33X55X17) - $26.99
2
  • COVER, TORQUE CONVERTER CASE
12
  • OIL SEAL (12X22X7) (ARAI) - $4.49
13
  • CLIP, WIRE
14
  • BOLT, STUD (10X40) - $0.84
11
  • OIL SEAL (44X68X8) (NOK) - $5.98
8
  • BEARING, BALL (40X68X9) (KOYO) - $26.27
  • BEARING, BALL (40X68X9) (NTN) - $26.27
4
  • PLATE, OIL GUIDE - $3.31
No. Part # Part # / Description Qty Req. List Price Price
1 21110-PA9-305 21110-PA9-305 / CASE, TORQUE CONVERTER

1 - -
1 21111-PA9-040 21111-PA9-040 / CASE, TORQUE CONVERTER

1 - -
2 21351-PC0-900 21351-PC0-900 / COVER, TORQUE CONVERTER CASE

1 - -
3 21811-PA9-020 21811-PA9-020 / GASKET, TORQUE CONVERTER CASE

1 $19.15 $13.79
3 21811-PA9-S10 21811-PA9-S10 / GASKET, TORQUE CONVERTER CASE

1 - -
4 23225-PA9-000 23225-PA9-000 / PLATE, OIL GUIDE

1 $4.60 $3.31
5 90024-612-000 90024-612-000 / BOLT, SEALING (8MM)

4 $3.13 $2.26
6 95700-10150-08 95700-10150-08 / BOLT, FLANGE (10X150)

1 - -
6 90138-689-900 90138-689-900 / BOLT, FLANGE (10X157)

1 - -
7 90471-580-000 90471-580-000 / GASKET (8MM)

4 $1.67 $1.20
8 91001-PX4-004 91001-PX4-004 / BEARING, BALL (40X68X9) (KOYO)

1 $36.48 $26.27
8 91001-PX4-003 91001-PX4-003 / BEARING, BALL (40X68X9) (NTN)

1 $36.48 $26.27
9 91101-PB6-008 91101-PB6-008 / BEARING, NEEDLE (33X55X17)

1 $37.48 $26.99
10 91206-639-005 91206-639-005 / OIL SEAL (35X68X9)

1 $17.20 $12.38
11 91207-P0X-003 91207-P0X-003 / OIL SEAL (44X68X8) (NOK)

1 $8.30 $5.98
12 91209-612-003 91209-612-003 / OIL SEAL (12X22X7) (ARAI)

1 $6.23 $4.49
13 91404-PA0-000 91404-PA0-000 / CLIP, WIRE

1 - -
14 92715-10040-0B 92715-10040-0B / BOLT, STUD (10X40)

1 $1.17 $0.84
15 94301-14200 94301-14200 / PIN, DOWEL (14X20)

2 $1.37 $0.98
16 95701-10060-08 95701-10060-08 / BOLT, FLANGE (10X60)

1 $1.50 $1.08
17 95701-10090-08 95701-10090-08 / BOLT, FLANGE (10X90)

3 $2.40 $1.73
18 95701-10125-08 95701-10125-08 / BOLT, FLANGE (10X125)

1 $2.77 $1.99
18 95701-10120-08 95701-10120-08 / BOLT, FLANGE (10X120)

1 $2.65 $1.91
