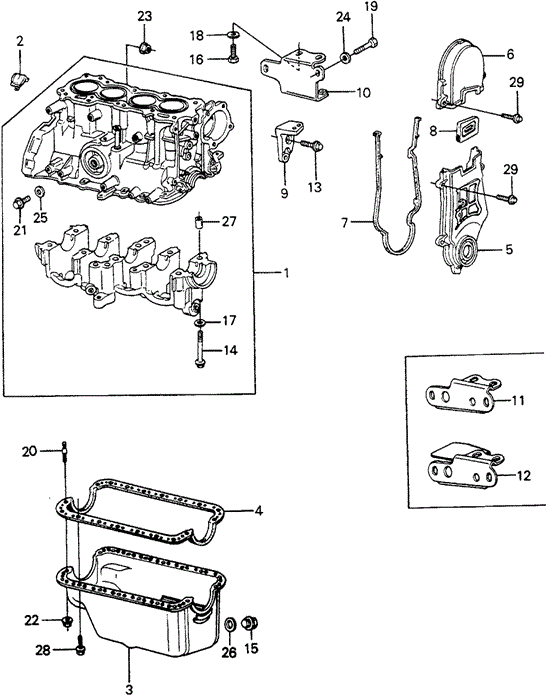

BLOCK ASSY., CYLINDER in ENGINE/CYLINDER BLOCK - OIL PAN (1) for 1981 Honda CIVIC HATCHBACK

BLOCK ASSY., CYLINDER in ENGINE/CYLINDER BLOCK - OIL PAN (1) for 1981 Honda CIVIC HATCHBACK #1
8
  • RUBBER D, SEAL - $9.90
18
  • WASHER, SPECIAL (9X24X4) - $3.37
5
  • COVER, TIMING BELT (LOWER)
11
  • BRACKET, EX. MANIFOLD
29
  • BOLT, FLANGE (6X20) - $0.16
  • BOLT, FLANGE (6X22) - $0.71
15
  • BOLT, DRAIN PLUG (20MM) - $4.03
6
  • COVER, TIMING BELT (UPPER)
13
  • BOLT, MOUNTING BRACKET - $3.46
16
  • BOLT, SPECIAL (8X20) - $3.29
20
  • BOLT, STUD (6X16) - $0.60
  • BOLT, STUD (6X28) - $1.85
29
  • BOLT, FLANGE (6X20) - $0.16
  • BOLT, FLANGE (6X22) - $0.71
27
  • PIN, DOWEL (12X18) - $0.92
28
  • BOLT, FLANGE (6X18) - $0.64
26
  • WASHER, DRAIN PLUG (20MM) - $0.53
22
  • NUT, FLANGE (6MM) - $0.17
23
  • NUT, FLANGE (10MM) - $0.76
1
  • BLOCK ASSY., CYLINDER
25
  • WASHER, DRAIN PLUG (12MM) - $0.43
21
  • BOLT, DRAIN PLUG (12MM) - $1.54
4
  • GASKET, OIL PAN (KOUKOKU) - $19.45
19
  • BOLT, HEX. (10X35)
3
  • PAN, OIL
14
  • BOLT, FLANGE (10x100)
9
  • BRACKET, ENGINE MOUNTING
2
  • SEAL, TIMING RUBBER
17
  • WASHER, SPECIAL (21X11X2.3)
24
  • WASHER, PLAIN (10MM) - $0.73
7
  • RUBBER, SEAL
No. Part # Part # / Description Qty Req. List Price Price
1 11010-PA5-305 11010-PA5-305 / BLOCK ASSY., CYLINDER

1 - -
2 11109-PA0-000 11109-PA0-000 / SEAL, TIMING RUBBER

1 - -
3 11200-PA6-030 11200-PA6-030 / PAN, OIL

1 - -
4 11251-PA6-003 11251-PA6-003 / GASKET, OIL PAN (KOUKOKU)

1 $27.02 $19.45
5 11810-PA0-020 11810-PA0-020 / COVER, TIMING BELT (LOWER)

1 - -
6 11820-673-000 11820-673-000 / COVER, TIMING BELT (UPPER)

1 - -
7 11831-PA5-000 11831-PA5-000 / RUBBER, SEAL

1 - -
8 11840-673-000 11840-673-000 / RUBBER D, SEAL

1 $13.75 $9.90
9 11901-PA5-000 11901-PA5-000 / BRACKET, ENGINE MOUNTING

1 - -
11 11940-PA5-000 11940-PA5-000 / BRACKET, EX. MANIFOLD

1 - -
13 90006-642-000 90006-642-000 / BOLT, MOUNTING BRACKET

2 $4.80 $3.46
14 90008-PD1-013 90008-PD1-013 / BOLT, FLANGE (10x100)

10 - -
15 90009-634-000 90009-634-000 / BOLT, DRAIN PLUG (20MM)

1 $5.60 $4.03
16 90010-657-010 90010-657-010 / BOLT, SPECIAL (8X20)

2 $4.57 $3.29
17 90438-634-000 90438-634-000 / WASHER, SPECIAL (21X11X2.3)

10 - -
18 90451-657-000 90451-657-000 / WASHER, SPECIAL (9X24X4)

2 $4.68 $3.37
19 92101-10035-0H 92101-10035-0H / BOLT, HEX. (10X35)

2 - -
20 92900-06016-0B 92900-06016-0B / BOLT, STUD (6X16)

6 $0.83 $0.60
20 90041-PA5-000 90041-PA5-000 / BOLT, STUD (6X28)

6 $2.57 $1.85
21 92800-12000 92800-12000 / BOLT, DRAIN PLUG (12MM)

1 $2.13 $1.54
22 94050-06080 94050-06080 / NUT, FLANGE (6MM)

6 $0.23 $0.17
23 94050-10080 94050-10080 / NUT, FLANGE (10MM)

1 $1.05 $0.76
24 94101-10800 94101-10800 / WASHER, PLAIN (10MM)

2 $1.02 $0.73
25 94109-12000 94109-12000 / WASHER, DRAIN PLUG (12MM)

1 $0.60 $0.43
26 94109-20000 94109-20000 / WASHER, DRAIN PLUG (20MM)

1 $0.73 $0.53
27 94301-12180 94301-12180 / PIN, DOWEL (12X18)

10 $1.28 $0.92
28 95701-06018-08 95701-06018-08 / BOLT, FLANGE (6X18)

12 $0.88 $0.64
29 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

5 $0.22 $0.16
29 95701-06022-08 95701-06022-08 / BOLT, FLANGE (6X22)

5 $0.98 $0.71
