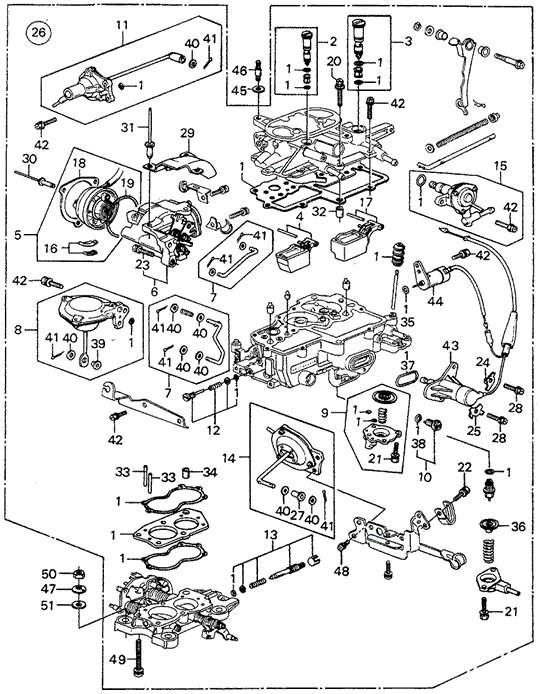

CARBURETOR ASSY. in ENGINE/CARBURETOR (3) for 1981 Honda CIVIC HATCHBACK

CARBURETOR ASSY. in ENGINE/CARBURETOR (3) for 1981 Honda CIVIC HATCHBACK #1
41
  • PIN, SPLIT - $1.75
40
  • WASHER, PLAIN (4MM)
11
  • DIAPHRAGM SET, CHOKE
5
  • CAP SET, CHOKE - $51.16
42
  • BOLT-WASHER (5X20)
1
  • GASKET SET, CARBURETOR
25
  • WASHER, MAIN JET COVER
1
  • GASKET SET, CARBURETOR
24
  • WASHER, MAIN JET COVER
12
  • SCREW SET B - $8.29
39
  • COLLAR - $1.49
14
  • OPENER SET, THROTTLE
45
  • WASHER, SEAT MOUNTING - $1.52
36
  • DIAPHRAGM
1
  • GASKET SET, CARBURETOR
40
  • WASHER, PLAIN (4MM)
19
  • GASKET, CHOKE CAP - $1.50
35
  • O-RING (5.8X1.9) - $2.24
40
  • WASHER, PLAIN (4MM)
1
  • GASKET SET, CARBURETOR
40
  • WASHER, PLAIN (4MM)
21
  • BOLT, WASHER (5X16)
16
  • GEAR SET, CHOKE CAP
1
  • GASKET SET, CARBURETOR
31
  • RIVET
22
  • BOLT-WASHER (5X10)
40
  • WASHER, PLAIN (4MM)
51
  • WASHER, PLAIN (8MM) - $0.79
30
  • RIVET
1
  • GASKET SET, CARBURETOR
41
  • PIN, SPLIT - $1.75
13
  • SCREW SET A - $8.29
15
  • DIAPHRAGM SET, CUT-OFF
29
  • COVER, CHOKE
9
  • DIAPHRAGM SET, PUMP - $27.26
41
  • PIN, SPLIT - $1.75
32
  • PIN, DOWEL
1
  • GASKET SET, CARBURETOR
17
  • FLOAT SET
37
  • O-RING, MAIN JET COVER
40
  • WASHER, PLAIN (4MM)
1
  • GASKET SET, CARBURETOR
1
  • GASKET SET, CARBURETOR
1
  • GASKET SET, CARBURETOR
28
  • BOLT-WASHER (6X20)
41
  • PIN, SPLIT - $1.75
34
  • PIN, DOWEL
23
  • BOLT-WASHER (5X25)
1
  • GASKET SET, CARBURETOR
1
  • GASKET SET, CARBURETOR
33
  • PIN, KNOCK
20
  • BOLT-WASHER (5X25)
43
  • VALVE ASSY., SOLENOID
1
  • GASKET SET, CARBURETOR
2
  • VALVE SET A, FLOAT
8
  • DIAPHRAGM SET - $26.04
7
  • ROD SET - $12.44
1
  • GASKET SET, CARBURETOR
42
  • BOLT-WASHER (5X20)
27
  • COLLAR
47
  • WASHER, SPRING (8MM)
1
  • GASKET SET, CARBURETOR
40
  • WASHER, PLAIN (4MM)
41
  • PIN, SPLIT - $1.75
18
  • PLATE, SETTING
41
  • PIN, SPLIT - $1.75
7
  • ROD SET - $12.44
33
  • PIN, KNOCK
46
  • BOLT, AIR CLEANER HOUSING STUD
42
  • BOLT-WASHER (5X20)
42
  • BOLT-WASHER (5X20)
44
  • VALVE, FUEL MAGNETIC
  • VALVE, FUEL MAGNETIC
26
  • CARBURETOR ASSY - $368.82
  • CARBURETOR ASSY. - $1,043.53
  • CARBURETOR ASSY. - $1,043.53
1
  • GASKET SET, CARBURETOR
1
  • GASKET SET, CARBURETOR
10
  • PLUG SET, SUB-MAIN JET
42
  • BOLT-WASHER (5X20)
1
  • GASKET SET, CARBURETOR
1
  • GASKET SET, CARBURETOR
28
  • BOLT-WASHER (6X20)
38
  • O-RING,1.3X10.6 - $1.52
  • O-RING (10.6X1.3) - $1.52
40
  • WASHER, PLAIN (4MM)
6
  • CASE SET, BIMETAL
  • CASE SET, BIMETAL
48
  • SCREW-WASHER (5X10) - $0.49
1
  • GASKET SET, CARBURETOR
3
  • VALVE SET B, FLOAT
42
  • BOLT-WASHER (5X20)
4
  • FLOAT SET
50
  • NUT, HEX. (8MM)
21
  • BOLT, WASHER (5X16)
49
  • SCREW-WASHER (6X40)
41
  • PIN, SPLIT - $1.75
No. Part # Part # / Description Qty Req. List Price Price
N/A 06161-PA6-003 06161-PA6-003 / GASKET KIT, CARBURETOR ON-CAR

1 - -
17 16000-PA0-015 16000-PA0-015 / FLOAT SET

1 - -
1 16010-PA0-672 16010-PA0-672 / GASKET SET, CARBURETOR

1 - -
2 16011-PA0-005 16011-PA0-005 / VALVE SET A, FLOAT

1 - -
3 16012-PA5-005 16012-PA5-005 / VALVE SET B, FLOAT

1 - -
5 16014-PA6-305 16014-PA6-305 / CAP SET, CHOKE

1 $71.04 $51.16
6 16015-PA5-671 16015-PA5-671 / CASE SET, BIMETAL

1 - -
6 16015-PA5-841 16015-PA5-841 / CASE SET, BIMETAL

1 - -
7 16017-PA0-671 16017-PA0-671 / ROD SET

1 $17.28 $12.44
8 16020-PA0-671 16020-PA0-671 / DIAPHRAGM SET

1 $36.17 $26.04
9 16021-PA0-005 16021-PA0-005 / DIAPHRAGM SET, PUMP

1 $37.87 $27.26
10 16024-657-015 16024-657-015 / PLUG SET, SUB-MAIN JET

1 - -
11 16026-PA5-671 16026-PA5-671 / DIAPHRAGM SET, CHOKE

1 - -
12 16028-PA6-661 16028-PA6-661 / SCREW SET B

1 $11.52 $8.29
13 16029-PA6-662 16029-PA6-662 / SCREW SET A

1 $11.52 $8.29
14 16043-PA0-005 16043-PA0-005 / OPENER SET, THROTTLE

1 - -
15 16044-PA0-671 16044-PA0-671 / DIAPHRAGM SET, CUT-OFF

1 - -
16 16045-PA6-661 16045-PA6-661 / GEAR SET, CHOKE CAP

1 - -
18 16066-PA6-661 16066-PA6-661 / PLATE, SETTING

1 - -
19 16077-671-005 16077-671-005 / GASKET, CHOKE CAP

1 $2.08 $1.50
20 16080-657-005 16080-657-005 / BOLT-WASHER (5X25)

2 - -
21 16081-657-005 16081-657-005 / BOLT, WASHER (5X16)

5 - -
22 16082-PA0-005 16082-PA0-005 / BOLT-WASHER (5X10)

1 - -
23 16083-PA0-005 16083-PA0-005 / BOLT-WASHER (5X25)

2 - -
24 16090-695-005 16090-695-005 / WASHER, MAIN JET COVER

1 - -
25 16091-695-005 16091-695-005 / WASHER, MAIN JET COVER

1 - -
26 16100-PA5-X00 16100-PA5-X00 / CARBURETOR ASSY

1 $512.24 $368.82
26 16100-PA5-851 16100-PA5-851 / CARBURETOR ASSY.

1 $1,449.35 $1,043.53
26 16100-PA5-691 16100-PA5-691 / CARBURETOR ASSY.

1 $1,449.35 $1,043.53
27 16131-657-300 16131-657-300 / COLLAR

1 - -
28 16132-657-300 16132-657-300 / BOLT-WASHER (6X20)

2 - -
29 16147-PB2-691 16147-PB2-691 / COVER, CHOKE

1 - -
30 16158-PB2-691 16158-PB2-691 / RIVET

3 - -
31 16159-PB2-691 16159-PB2-691 / RIVET

3 - -
32 16172-657-015 16172-657-015 / PIN, DOWEL

2 - -
33 16173-657-005 16173-657-005 / PIN, KNOCK

2 - -
34 16174-657-005 16174-657-005 / PIN, DOWEL

1 - -
35 16178-548-004 16178-548-004 / O-RING (5.8X1.9)

1 $3.12 $2.24
36 16191-PA6-661 16191-PA6-661 / DIAPHRAGM

1 - -
37 16192-695-005 16192-695-005 / O-RING, MAIN JET COVER

1 - -
38 16075-GHB-720 16075-GHB-720 / O-RING,1.3X10.6

1 $2.12 $1.52
38 16075-GHB-720 16075-GHB-720 / O-RING (10.6X1.3)

1 $2.12 $1.52
39 16202-657-300 16202-657-300 / COLLAR

1 $2.07 $1.49
40 16203-657-300 16203-657-300 / WASHER, PLAIN (4MM)

11 - -
41 16204-657-300 16204-657-300 / PIN, SPLIT

10 $2.43 $1.75
42 16084-PE0-921 16084-PE0-921 / BOLT-WASHER (5X20)

18 - -
43 16208-PC2-015 16208-PC2-015 / VALVE ASSY., SOLENOID

1 - -
44 16230-PA5-015 16230-PA5-015 / VALVE, FUEL MAGNETIC

1 - -
44 16230-PA5-015 16230-PA5-015 / VALVE, FUEL MAGNETIC

1 - -
45 77302-124-000 77302-124-000 / WASHER, SEAT MOUNTING

2 $2.12 $1.52
46 90034-PA0-000 90034-PA0-000 / BOLT, AIR CLEANER HOUSING STUD

2 - -
47 90409-657-000 90409-657-000 / WASHER, SPRING (8MM)

4 - -
48 93892-05010-08 93892-05010-08 / SCREW-WASHER (5X10)

2 $0.68 $0.49
49 93892-06040-08 93892-06040-08 / SCREW-WASHER (6X40)

5 - -
50 94002-08280-0S 94002-08280-0S / NUT, HEX. (8MM)

4 - -
51 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

4 $1.10 $0.79
