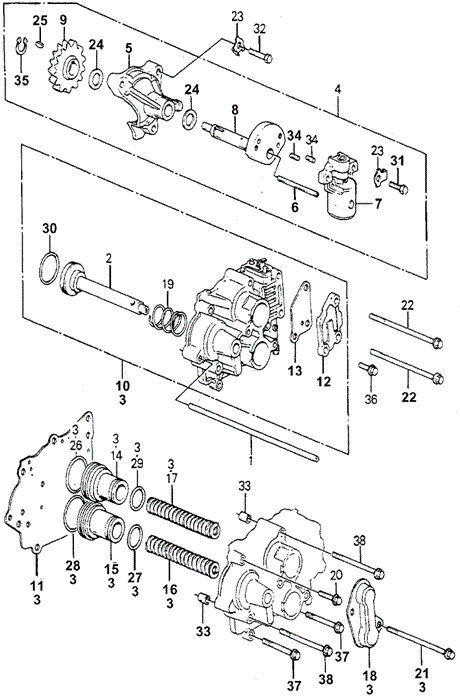

BODY SET, SERVO in TRANSMISSION - HONDAMATIC/HMT SERVO BODY - GOVERNOR for 1981 Honda ACCORD SEDAN

BODY SET, SERVO in TRANSMISSION - HONDAMATIC/HMT SERVO BODY - GOVERNOR for 1981 Honda ACCORD SEDAN #1
35
  • CIRCLIP, OUTER (14MM) - $0.44
12
  • COVER, THROTTLE VALVE
33
  • PIN, DOWEL (8X14) - $0.84
7
  • BODY ASSY., GOVERNOR - $23.12
10
  • BODY SET, SERVO
29
  • O-RING (23.5X2.1) (ARAI) - $1.51
2
  • SHAFT C, SHIFT FORK
  • SHAFT B, SHIFT FORK
  • SHAFT A, SHIFT FORK
24
  • WASHER, THRUST (14MM)
18
  • COVER, ACCUMULATOR
32
  • BOLT, HEX. (6X30) - $0.50
14
  • PISTON, THIRD ACCUMULATOR
38
  • BOLT, FLANGE (6X80) - $1.01
  • BOLT, FLANGE (6X80) - $1.01
31
  • BOLT, HEX. (6X18) - $0.60
8
  • SHAFT, GOVERNOR - $15.40
30
  • O-RING (31X2.7) (ARAI) - $1.94
19
  • SPRING, SERVO RETURN
1
  • PIPE, THIRD CLUTCH
23
  • WASHER, LOCK (6MM) - $1.88
16
  • SPRING, ACCUMULATOR
11
  • PLATE, SERVO SEPARATING
22
  • BOLT, HEX. (6X100)
24
  • WASHER, THRUST (14MM)
25
  • KEY, WOODRUFF (3MM) - $1.96
37
  • BOLT, FLANGE (6X60) - $0.86
13
  • PLATE, THROTTLE SEPARATING
5
  • HOLDER, GOVERNOR - $23.80
36
  • BOLT, FLANGE (6X20) - $0.16
9
  • GEAR, GOVERNOR
6
  • PIPE (5X65) - $3.38
21
  • BOLT, FLANGE (6X116.5)
  • BOLT, FLANGE (6X110)
17
  • SPRING, ACCUMULATOR
38
  • BOLT, FLANGE (6X80) - $1.01
  • BOLT, FLANGE (6X80) - $1.01
4
  • GOVERNOR ASSY.
  • GOVERNOR ASSY.
28
  • O-RING (35.2X2.4) (NOK) - $2.02
23
  • WASHER, LOCK (6MM) - $1.88
34
  • PIN, DOWEL (5X8) - $0.80
20
  • BOLT, FLANGE (6X30) - $0.86
37
  • BOLT, FLANGE (6X60) - $0.86
22
  • BOLT, HEX. (6X100)
15
  • PISTON, SECOND ACCUMULATOR
34
  • PIN, DOWEL (5X8) - $0.80
27
  • O-RING (23.5X2.1) (ARAI) - $1.51
26
  • O-RING (35.2X2.4) (NOK) - $2.02
33
  • PIN, DOWEL (8X14) - $0.84
No. Part # Part # / Description Qty Req. List Price Price
1 22743-PA9-000 22743-PA9-000 / PIPE, THIRD CLUTCH

1 - -
2 24273-PA9-010 24273-PA9-010 / SHAFT C, SHIFT FORK

1 - -
2 24272-PA9-010 24272-PA9-010 / SHAFT B, SHIFT FORK

1 - -
2 24271-PA9-020 24271-PA9-020 / SHAFT A, SHIFT FORK

1 - -
4 27300-PA9-030 27300-PA9-030 / GOVERNOR ASSY.

1 - -
4 27300-PA9-030 27300-PA9-030 / GOVERNOR ASSY.

1 - -
5 27310-680-901 27310-680-901 / HOLDER, GOVERNOR

1 $33.05 $23.80
6 27312-PA9-000 27312-PA9-000 / PIPE (5X65)

1 $4.70 $3.38
7 27315-PA9-305 27315-PA9-305 / BODY ASSY., GOVERNOR

1 $35.08 $23.12
8 27341-PA9-000 27341-PA9-000 / SHAFT, GOVERNOR

1 $23.33 $15.40
9 27342-PA9-010 27342-PA9-010 / GEAR, GOVERNOR

1 - -
10 27400-PA9-335 27400-PA9-335 / BODY SET, SERVO

1 - -
11 27412-PA9-010 27412-PA9-010 / PLATE, SERVO SEPARATING

1 - -
12 27413-PA9-000 27413-PA9-000 / COVER, THROTTLE VALVE

1 - -
13 27414-PA9-000 27414-PA9-000 / PLATE, THROTTLE SEPARATING

1 - -
14 27571-PA9-010 27571-PA9-010 / PISTON, THIRD ACCUMULATOR

1 - -
15 27572-PA9-010 27572-PA9-010 / PISTON, SECOND ACCUMULATOR

1 - -
17 27574-PA9-010 27574-PA9-010 / SPRING, ACCUMULATOR

1 - -
18 27581-PA9-010 27581-PA9-010 / COVER, ACCUMULATOR

1 - -
19 27861-PA9-010 27861-PA9-010 / SPRING, SERVO RETURN

1 - -
20 95701-06030-08 95701-06030-08 / BOLT, FLANGE (6X30)

1 $1.20 $0.86
21 90008-PA9-020 90008-PA9-020 / BOLT, FLANGE (6X116.5)

2 - -
21 90008-PA9-020 90008-PA9-020 / BOLT, FLANGE (6X110)

2 - -
22 90009-PA9-000 90009-PA9-000 / BOLT, HEX. (6X100)

2 - -
23 90433-639-000 90433-639-000 / WASHER, LOCK (6MM)

5 $2.62 $1.88
24 90451-035-900 90451-035-900 / WASHER, THRUST (14MM)

2 - -
25 90741-PA9-000 90741-PA9-000 / KEY, WOODRUFF (3MM)

1 $2.72 $1.96
28 91310-PA9-004 91310-PA9-004 / O-RING (35.2X2.4) (NOK)

1 $2.80 $2.02
29 91318-PA9-003 91318-PA9-003 / O-RING (23.5X2.1) (ARAI)

1 $2.10 $1.51
30 91344-580-000 91344-580-000 / O-RING (31X2.7) (ARAI)

1 $2.70 $1.94
31 92101-06018-0A 92101-06018-0A / BOLT, HEX. (6X18)

2 $0.83 $0.60
32 92201-06030-0H 92201-06030-0H / BOLT, HEX. (6X30)

3 $0.69 $0.50
33 94301-08140 94301-08140 / PIN, DOWEL (8X14)

2 $1.17 $0.84
34 94303-05080 94303-05080 / PIN, DOWEL (5X8)

2 $1.12 $0.80
35 94510-14000 94510-14000 / CIRCLIP, OUTER (14MM)

1 $0.62 $0.44
36 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

1 $0.22 $0.16
37 95701-06060-08 95701-06060-08 / BOLT, FLANGE (6X60)

2 $1.20 $0.86
38 95701-06080-08 95701-06080-08 / BOLT, FLANGE (6X80)

2 $1.40 $1.01
38 95701-06080-08 95701-06080-08 / BOLT, FLANGE (6X80)

2 $1.40 $1.01
