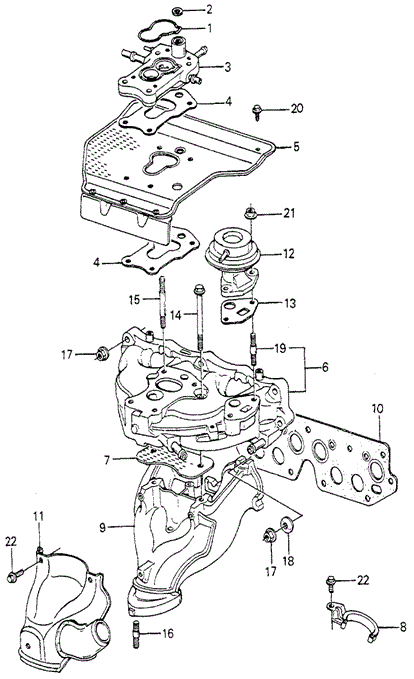

MANIFOLD, IN. in ENGINE/CARBURETOR INSULATOR - MANIFOLD (3) for 1981 Honda ACCORD SEDAN

MANIFOLD, IN. in ENGINE/CARBURETOR INSULATOR - MANIFOLD (3) for 1981 Honda ACCORD SEDAN #1
7
  • GASKET, MANIFOLD RISER - $13.42
11
  • COVER, EX. MANIFOLD
19
  • BOLT, STUD (8X35) - $0.79
9
  • MANIFOLD, EX.
21
  • NUT, FLANGE (8MM) - $0.18
17
  • NUT, SPECIAL (8MM) - $2.28
22
  • BOLT, FLANGE (6X10) - $0.62
  • BOLT, FLANGE (6X10) - $0.62
3
  • INSULATOR, CARBURETOR
20
  • SCREW, TAPPING (5X12)
12
  • VALVE ASSY., EGR
  • VALVE ASSY., EGR
17
  • NUT, SPECIAL (8MM) - $2.28
5
  • PLATE, CARBURETOR INSULATOR
13
  • GASKET, EGR VALVE (ISHINO GASKET) - $5.06
18
  • WASHER, SPECIAL (8x18)
8
  • CLAMP, HOT AIR PIPE
2
  • O-RING C
4
  • GASKET, INSULATOR (LOWER)
10
  • GASKET, MANIFOLD
22
  • BOLT, FLANGE (6X10) - $0.62
  • BOLT, FLANGE (6X10) - $0.62
1
  • O-RING A - $4.80
6
  • MANIFOLD, IN.
4
  • GASKET, INSULATOR (LOWER)
14
  • BOLT, FLANGE (8X70)
15
  • BOLT, STUD (8X63) - $3.49
16
  • BOLT, STUD (10X39.5)
No. Part # Part # / Description Qty Req. List Price Price
1 16105-657-000 16105-657-000 / O-RING A

1 $6.67 $4.80
2 16106-657-000 16106-657-000 / O-RING C

1 - -
3 16210-PB2-020 16210-PB2-020 / INSULATOR, CARBURETOR

1 - -
4 16215-689-010 16215-689-010 / GASKET, INSULATOR (LOWER)

2 - -
5 16216-PB2-010 16216-PB2-010 / PLATE, CARBURETOR INSULATOR

1 - -
6 17101-PB2-660 17101-PB2-660 / MANIFOLD, IN.

1 - -
7 17106-PB2-020 17106-PB2-020 / GASKET, MANIFOLD RISER

1 $18.63 $13.42
8 17303-PB2-690 17303-PB2-690 / CLAMP, HOT AIR PIPE

1 - -
9 18100-PB2-690 18100-PB2-690 / MANIFOLD, EX.

1 - -
10 18115-PB2-004 18115-PB2-004 / GASKET, MANIFOLD

1 - -
11 18120-PB2-690 18120-PB2-690 / COVER, EX. MANIFOLD

1 - -
12 18710-PB3-662 18710-PB3-662 / VALVE ASSY., EGR

1 - -
12 18710-PB3-662 18710-PB3-662 / VALVE ASSY., EGR

1 - -
13 18715-PB2-000 18715-PB2-000 / GASKET, EGR VALVE (ISHINO GASKET)

1 $7.03 $5.06
14 90007-657-921 90007-657-921 / BOLT, FLANGE (8X70)

2 - -
15 90064-657-330 90064-657-330 / BOLT, STUD (8X63)

4 $4.85 $3.49
16 90065-689-310 90065-689-310 / BOLT, STUD (10X39.5)

3 - -
17 90217-657-000 90217-657-000 / NUT, SPECIAL (8MM)

10 $3.17 $2.28
18 90402-657-000 90402-657-000 / WASHER, SPECIAL (8x18)

6 - -
19 92900-08019-0B 92900-08019-0B / BOLT, STUD (8X35)

2 $1.10 $0.79
20 93904-35220 93904-35220 / SCREW, TAPPING (5X12)

2 - -
21 94050-08080 94050-08080 / NUT, FLANGE (8MM)

2 $0.25 $0.18
22 95701-06010-08 95701-06010-08 / BOLT, FLANGE (6X10)

4 $0.87 $0.62
22 95700-06010-08 95700-06010-08 / BOLT, FLANGE (6X10)

4 $0.87 $0.62
