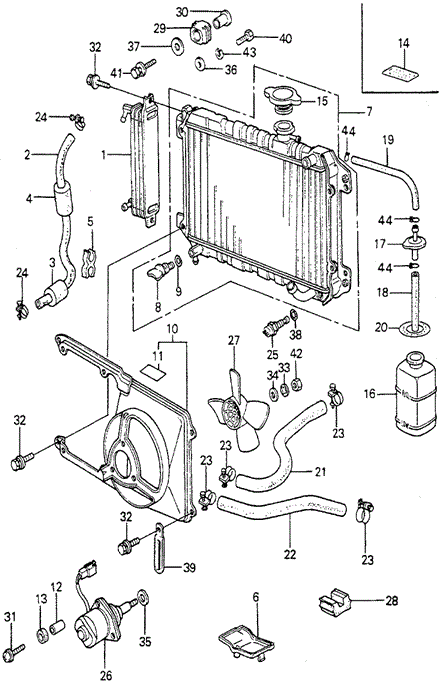

COOLER, OIL in ELECTRICAL / EXHAUST / HEATER / FUEL/RADIATOR - FAN MOTOR - OIL COOLER for 1981 Honda ACCORD SEDAN

COOLER, OIL in ELECTRICAL / EXHAUST / HEATER / FUEL/RADIATOR - FAN MOTOR - OIL COOLER for 1981 Honda ACCORD SEDAN #1
5
  • CLAMP, OIL HOSE
16
  • TANK, RESERVOIR
39
  • CLIP, WIRE - $3.86
12
  • COLLAR (DENSO)
  • BUSH (DENSO)
43
  • WASHER, SPRING (6MM) - $0.41
33
  • WASHER, SPRING (5MM)
42
  • NUT, HEX. (5MM) - $0.42
44
  • CLIP, TUBE (C11) - $0.65
10
  • SHROUD (DENSO)
40
  • BOLT, HEX. (6X16) - $0.54
28
  • CUSHION A, RADIATOR MOUNTING
17
  • CAP, RESERVE TANK
37
  • WASHER (31X6.3X2.3)
6
  • PLATE, OIL FILTER
2
  • HOSE, IN. OIL
32
  • BOLT-WASHER (6X16)
18
  • HOSE, RESERVE TANK
35
  • WASHER, SPECIAL - $1.88
1
  • COOLER, OIL
31
  • SCREW-WASHER (4x18) (DENSO)
8
  • BOLT, DRAIN (DENSO) - $4.74
38
  • O-RING (13.5X1.4) - $1.33
30
  • RETAINER, RADIATOR CUSHION
9
  • GASKET, DRAIN (DENSO) - $1.49
3
  • PROTECTOR, HOSE
19
  • TUBE, RESERVOIR TANK - $10.01
26
  • MOTOR, COOLING FAN (DENSO)
27
  • FAN, COOLING
25
  • SWITCH ASSY., THERMOSTAT (A-90) (NIPPON THERMOSTAT)
44
  • CLIP, TUBE (C11) - $0.65
21
  • HOSE, WATER (UPPER)
13
  • RUBBER, BUSHING - $18.77
32
  • BOLT-WASHER (6X16)
32
  • BOLT-WASHER (6X16)
29
  • CUSHION B, RADIATOR MOUNTING
22
  • HOSE, WATER (LOWER)
14
  • MARK, RADIATOR CAUTION
  • MARK, RADIATOR CAUTION - $5.17
7
  • RADIATOR - $266.32
44
  • CLIP, TUBE (C11) - $0.65
41
  • BOLT-WASHER (6X40) - $0.67
  • BOLT-WASHER (6X40)
11
  • LABEL, FAN CAUTION
34
  • WASHER, PLAIN (5MM) - $0.38
15
  • CAP, RADIATOR (DENSO) - $18.14
20
  • MARK, RESERVE TANK - $4.51
4
  • PROTECTOR, HOSE - $2.88
No. Part # Part # / Description Qty Req. List Price Price
1 15901-689-003 15901-689-003 / COOLER, OIL

1 - -
2 15902-689-000 15902-689-000 / HOSE, IN. OIL

1 - -
3 15911-689-000 15911-689-000 / PROTECTOR, HOSE

1 - -
4 15912-689-000 15912-689-000 / PROTECTOR, HOSE

1 $4.00 $2.88
5 15913-689-000 15913-689-000 / CLAMP, OIL HOSE

1 - -
6 15914-692-000 15914-692-000 / PLATE, OIL FILTER

1 - -
7 19010-689-905 19010-689-905 / RADIATOR

1 $369.88 $266.32
8 19011-671-000 19011-671-000 / BOLT, DRAIN (DENSO)

1 $6.58 $4.74
9 19012-671-300 19012-671-300 / GASKET, DRAIN (DENSO)

1 $2.07 $1.49
10 19015-689-013 19015-689-013 / SHROUD (DENSO)

1 - -
11 19018-657-000 19018-657-000 / LABEL, FAN CAUTION

1 - -
12 N949194-0040 N949194-0040 / COLLAR (DENSO)

3 - -
12 N949194-0040 N949194-0040 / BUSH (DENSO)

3 - -
13 19041-611-003 19041-611-003 / RUBBER, BUSHING

3 $26.07 $18.77
14 19043-PB2-660 19043-PB2-660 / MARK, RADIATOR CAUTION

1 - -
14 19043-PK1-Y10 19043-PK1-Y10 / MARK, RADIATOR CAUTION

1 $7.18 $5.17
15 19045-692-003 19045-692-003 / CAP, RADIATOR (DENSO)

1 $25.20 $18.14
16 19101-689-000 19101-689-000 / TANK, RESERVOIR

1 - -
17 19102-689-305 19102-689-305 / CAP, RESERVE TANK

1 - -
18 19103-PA0-660 19103-PA0-660 / HOSE, RESERVE TANK

1 - -
19 19104-634-000 19104-634-000 / TUBE, RESERVOIR TANK

1 $13.90 $10.01
20 19105-PA0-010 19105-PA0-010 / MARK, RESERVE TANK

1 $6.27 $4.51
21 19501-PB2-000 19501-PB2-000 / HOSE, WATER (UPPER)

1 - -
22 19502-PB2-000 19502-PB2-000 / HOSE, WATER (LOWER)

1 - -
25 37760-PB2-003 37760-PB2-003 / SWITCH ASSY., THERMOSTAT (A-90) (NIPPON THERMOSTAT)

1 - -
26 19030-679-003 19030-679-003 / MOTOR, COOLING FAN (DENSO)

1 - -
27 38617-634-811 38617-634-811 / FAN, COOLING

1 - -
28 60785-689-020 60785-689-020 / CUSHION A, RADIATOR MOUNTING

2 - -
29 60786-689-010 60786-689-010 / CUSHION B, RADIATOR MOUNTING

2 - -
30 60787-689-000 60787-689-000 / RETAINER, RADIATOR CUSHION

2 - -
31 90041-679-003 90041-679-003 / SCREW-WASHER (4x18) (DENSO)

3 - -
32 90042-671-003 90042-671-003 / BOLT-WASHER (6X16)

6 - -
33 90401-679-003 90401-679-003 / WASHER, SPRING (5MM)

1 - -
34 94103-05800 94103-05800 / WASHER, PLAIN (5MM)

1 $0.53 $0.38
35 90501-671-003 90501-671-003 / WASHER, SPECIAL

1 $2.62 $1.88
37 90501-689-000 90501-689-000 / WASHER (31X6.3X2.3)

2 - -
38 91307-PH7-660 91307-PH7-660 / O-RING (13.5X1.4)

1 $1.85 $1.33
39 91405-671-000 91405-671-000 / CLIP, WIRE

1 $5.37 $3.86
40 92101-06016-0G 92101-06016-0G / BOLT, HEX. (6X16)

4 $0.75 $0.54
41 93401-06040-08 93401-06040-08 / BOLT-WASHER (6X40)

2 $1.02 $0.67
41 90105-PB2-000 90105-PB2-000 / BOLT-WASHER (6X40)

2 - -
42 94001-05080-0S 94001-05080-0S / NUT, HEX. (5MM)

1 $0.58 $0.42
43 94111-06700 94111-06700 / WASHER, SPRING (6MM)

4 $0.57 $0.41
44 95002-70000 95002-70000 / CLIP, TUBE (C11)

3 $0.90 $0.65
