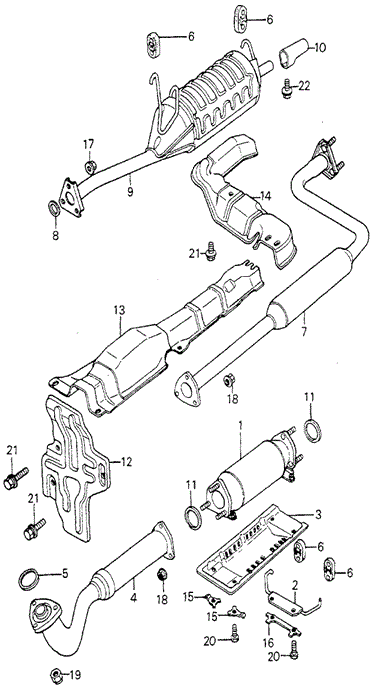

CONVERTER in ELECTRICAL / EXHAUST / HEATER / FUEL/EXHAUST SYSTEM (2) for 1981 Honda ACCORD SEDAN

CONVERTER in ELECTRICAL / EXHAUST / HEATER / FUEL/EXHAUST SYSTEM (2) for 1981 Honda ACCORD SEDAN #1
1
  • CONVERTER
20
  • BOLT, HEX. (8X16) - $0.60
17
  • NUT, SELF-LOCK (8MM) (CLINCH) - $0.30
11
  • GASKET, PRE CHAMBER (52.5MM-53.5MM) - $7.57
21
  • BOLT-WASHER (6X12) - $0.67
19
  • NUT, SELF-LOCK (10MM) - $2.36
12
  • PLATE, DASHBOARD BAFFLE (LOWER)
2
  • BRACKET, CONVERTER
6
  • RUBBER, MUFFLER MOUNTING (74X53X22) - $7.31
16
  • PLATE, RR. LOCK
4
  • PIPE A, EX.
3
  • COVER (LOWER)
18
  • NUT, SELF-LOCK (10MM) - $0.34
6
  • RUBBER, MUFFLER MOUNTING (74X53X22) - $7.31
7
  • PIPE B, EX.
14
  • PLATE, TANK BAFFLE
22
  • BOLT, FLANGE (6X12) - $0.72
11
  • GASKET, PRE CHAMBER (52.5MM-53.5MM) - $7.57
18
  • NUT, SELF-LOCK (10MM) - $0.34
13
  • PLATE, FR. FLOOR HEAT BAFFLE
6
  • RUBBER, MUFFLER MOUNTING (74X53X22) - $7.31
14
  • PLATE, TANK BAFFLE
15
  • WASHER F, TONGUED
21
  • BOLT-WASHER (6X12) - $0.67
5
  • GASKET, EX. PIPE (ISHINO GASKET) - $4.98
  • GASKET, EX. PIPE (59.5MM-60.5MM) (ISHINO) - $4.98
21
  • BOLT-WASHER (6X12) - $0.67
20
  • BOLT, HEX. (8X16) - $0.60
8
  • GASKET, MUFFLER - $6.94
9
  • MUFFLER, EX.
10
  • FINISHER, EX. PIPE
6
  • RUBBER, MUFFLER MOUNTING (74X53X22) - $7.31
No. Part # Part # / Description Qty Req. List Price Price
1 18160-PC2-U01 18160-PC2-U01 / CONVERTER

1 - -
2 18177-PC2-000 18177-PC2-000 / BRACKET, CONVERTER

1 - -
3 18181-PC2-000 18181-PC2-000 / COVER (LOWER)

1 - -
4 18210-689-691 18210-689-691 / PIPE A, EX.

1 - -
5 18212-SA0-003 18212-SA0-003 / GASKET, EX. PIPE (ISHINO GASKET)

1 $6.92 $4.98
5 18212-671-003 18212-671-003 / GASKET, EX. PIPE (59.5MM-60.5MM) (ISHINO)

1 $6.92 $4.98
6 18215-671-000 18215-671-000 / RUBBER, MUFFLER MOUNTING (74X53X22)

5 $10.15 $7.31
7 18220-689-033 18220-689-033 / PIPE B, EX.

1 - -
8 18303-SE1-S01 18303-SE1-S01 / GASKET, MUFFLER

1 $9.63 $6.94
9 18307-688-692 18307-688-692 / MUFFLER, EX.

1 - -
10 18310-671-600 18310-671-600 / FINISHER, EX. PIPE

1 - -
11 18393-SH3-S00 18393-SH3-S00 / GASKET, PRE CHAMBER (52.5MM-53.5MM)

2 $10.52 $7.57
12 60697-671-010 60697-671-010 / PLATE, DASHBOARD BAFFLE (LOWER)

1 - -
13 72201-689-691 72201-689-691 / PLATE, FR. FLOOR HEAT BAFFLE

1 - -
14 72203-689-690 72203-689-690 / PLATE, TANK BAFFLE

1 - -
15 90007-PB2-000 90007-PB2-000 / WASHER F, TONGUED

2 - -
16 90008-PA6-000 90008-PA6-000 / PLATE, RR. LOCK

1 - -
17 90115-659-003 90115-659-003 / NUT, SELF-LOCK (8MM) (CLINCH)

3 $0.42 $0.30
18 90212-671-005 90212-671-005 / NUT, SELF-LOCK (10MM)

6 $0.47 $0.34
19 90303-692-003 90303-692-003 / NUT, SELF-LOCK (10MM)

3 $3.28 $2.36
20 92101-08016-0H 92101-08016-0H / BOLT, HEX. (8X16)

4 $0.83 $0.60
21 93405-06012-08 93405-06012-08 / BOLT-WASHER (6X12)

12 $0.93 $0.67
22 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

1 $1.00 $0.72
