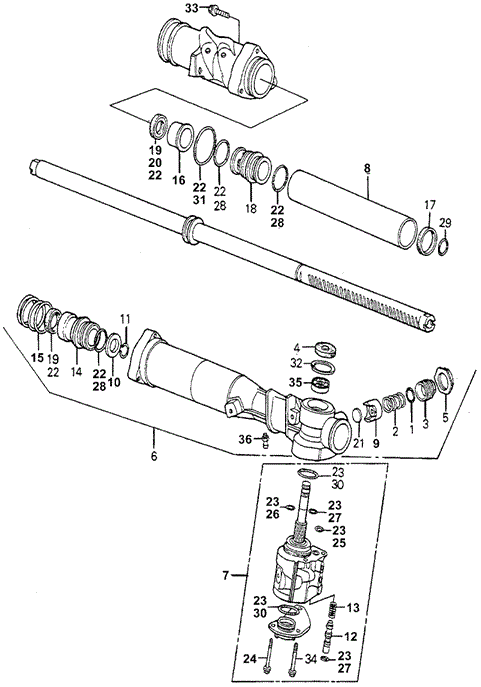

BOX UNIT, STEERING GEAR in CHASSIS/P.S. GEAR BOX COMPONENTS for 1981 Honda ACCORD SEDAN

BOX UNIT, STEERING GEAR in CHASSIS/P.S. GEAR BOX COMPONENTS for 1981 Honda ACCORD SEDAN #1
4
  • DUST SEAL, STEERING PINION (ARAI) - $5.38
9
  • GUIDE, STEERING RACK
35
  • BEARING, RADIAL BALL (6202) - $7.34
26
  • O-RING (8.8X1.5) - $1.30
18
  • CAP, CYLINDER
17
  • RING, PISTON SEAL
23
  • O-RING SET, CONTROL VALVE - $5.65
22
  • O-RING SET, CYLINDER
23
  • O-RING SET, CONTROL VALVE - $5.65
2
  • SPRING, RACK GUIDE PRESSURE
29
  • O-RING (29.5MM)
34
  • BOLT, FLANGE (6X70) - $0.94
28
  • O-RING (33MM)
11
  • RING, SNAP (23MM)
32
  • CIRCLIP, INNER (35MM) - $0.84
15
  • SPRING, CYLINDER SETTING
6
  • BOX UNIT, STEERING GEAR
1
  • O-RING, RACK GUIDE (YAMADA) - $0.76
36
  • NIPPLE, GREASE (A.T6) (M6X1.0) - $1.09
3
  • SCREW, RACK GUIDE - $10.12
27
  • O-RING (14MM) (ARAI) - $1.22
22
  • O-RING SET, CYLINDER
21
  • PLATE, LOCATE (2.05)
  • PLATE, LOCATE (2.10)
  • PLATE, LOCATE (2.00)
  • PLATE, LOCATE (1.95)
22
  • O-RING SET, CYLINDER
7
  • VALVE UNIT, CONTROL
28
  • O-RING (33MM)
24
  • BOLT, FR. SEAT
8
  • CYLINDER
19
  • GASKET, CYLINDER END
14
  • GASKET, RETAINER
  • GASKET, RETAINER
13
  • SPRING
23
  • O-RING SET, CONTROL VALVE - $5.65
5
  • NUT, LOCK - $4.78
12
  • SPOOL, CUT-OFF (A)
  • SPOOL, CUT-OFF (C)
  • SPOOL, CUT-OFF (B)
33
  • BOLT, FLANGE (6X28) - $0.72
  • BOLT, FLANGE (6X28) - $0.72
28
  • O-RING (33MM)
23
  • O-RING SET, CONTROL VALVE - $5.65
23
  • O-RING SET, CONTROL VALVE - $5.65
10
  • WASHER, RETAINER
23
  • O-RING SET, CONTROL VALVE - $5.65
25
  • O-RING (7MM) - $1.46
30
  • O-RING (37MM) (ARAI)
22
  • O-RING SET, CYLINDER
20
  • GASKET, CYLINDER END
27
  • O-RING (14MM) (ARAI) - $1.22
19
  • GASKET, CYLINDER END
31
  • O-RING (48.5X1.5)
22
  • O-RING SET, CYLINDER
16
  • BUSH, STEERING RACK
22
  • O-RING SET, CYLINDER
30
  • O-RING (37MM) (ARAI)
No. Part # Part # / Description Qty Req. List Price Price
1 53412-634-000 53412-634-000 / O-RING, RACK GUIDE (YAMADA)

1 $1.05 $0.76
2 53413-671-890 53413-671-890 / SPRING, RACK GUIDE PRESSURE

1 - -
3 53414-S01-A51 53414-S01-A51 / SCREW, RACK GUIDE

1 $14.05 $10.12
4 53426-671-003 53426-671-003 / DUST SEAL, STEERING PINION (ARAI)

1 $7.47 $5.38
5 53458-S01-A51 53458-S01-A51 / NUT, LOCK

1 $6.63 $4.78
6 53608-689-671 53608-689-671 / BOX UNIT, STEERING GEAR

1 - -
7 53609-689-670 53609-689-670 / VALVE UNIT, CONTROL

1 - -
8 53612-671-010 53612-671-010 / CYLINDER

1 - -
9 53616-671-000 53616-671-000 / GUIDE, STEERING RACK

1 - -
10 53617-671-000 53617-671-000 / WASHER, RETAINER

1 - -
11 53618-671-000 53618-671-000 / RING, SNAP (23MM)

1 - -
12 53620-671-020 53620-671-020 / SPOOL, CUT-OFF (A)

1 - -
12 53639-671-000 53639-671-000 / SPOOL, CUT-OFF (C)

1 - -
12 53637-671-000 53637-671-000 / SPOOL, CUT-OFF (B)

1 - -
13 53621-671-000 53621-671-000 / SPRING

1 - -
14 53628-SA1-950 53628-SA1-950 / GASKET, RETAINER

1 - -
14 53628-SA1-950 53628-SA1-950 / GASKET, RETAINER

1 - -
15 53630-671-010 53630-671-010 / SPRING, CYLINDER SETTING

1 - -
16 53631-671-000 53631-671-000 / BUSH, STEERING RACK

1 - -
17 53640-671-003 53640-671-003 / RING, PISTON SEAL

1 - -
18 53644-671-020 53644-671-020 / CAP, CYLINDER

1 - -
19 53645-671-003 53645-671-003 / GASKET, CYLINDER END

1 - -
20 53645-689-004 53645-689-004 / GASKET, CYLINDER END

1 - -
21 53652-671-000 53652-671-000 / PLATE, LOCATE (2.05)

1 - -
21 53653-671-000 53653-671-000 / PLATE, LOCATE (2.10)

1 - -
21 53651-671-000 53651-671-000 / PLATE, LOCATE (2.00)

1 - -
21 53650-671-000 53650-671-000 / PLATE, LOCATE (1.95)

1 - -
22 53678-671-325 53678-671-325 / O-RING SET, CYLINDER

1 - -
23 53679-689-305 53679-689-305 / O-RING SET, CONTROL VALVE

1 $7.85 $5.65
24 90102-671-000 90102-671-000 / BOLT, FR. SEAT

1 - -
25 91351-671-004 91351-671-004 / O-RING (7MM)

1 $2.03 $1.46
26 91312-PH7-000 91312-PH7-000 / O-RING (8.8X1.5)

1 $1.80 $1.30
27 91353-671-003 91353-671-003 / O-RING (14MM) (ARAI)

2 $1.70 $1.22
28 91307-MC8-005 91307-MC8-005 / O-RING (33MM)

3 - -
29 91356-671-004 91356-671-004 / O-RING (29.5MM)

1 - -
30 91357-671-023 91357-671-023 / O-RING (37MM) (ARAI)

3 - -
31 91359-671-004 91359-671-004 / O-RING (48.5X1.5)

1 - -
32 94520-35000 94520-35000 / CIRCLIP, INNER (35MM)

1 $1.17 $0.84
33 95700-06028-00 95700-06028-00 / BOLT, FLANGE (6X28)

3 $1.00 $0.72
33 95701-06028-00 95701-06028-00 / BOLT, FLANGE (6X28)

3 $1.00 $0.72
34 95701-06070-00 95701-06070-00 / BOLT, FLANGE (6X70)

2 $1.30 $0.94
35 96100-62020-10 96100-62020-10 / BEARING, RADIAL BALL (6202)

1 $10.20 $7.34
36 96201-10000 96201-10000 / NIPPLE, GREASE (A.T6) (M6X1.0)

1 $1.52 $1.09
